Descrizione

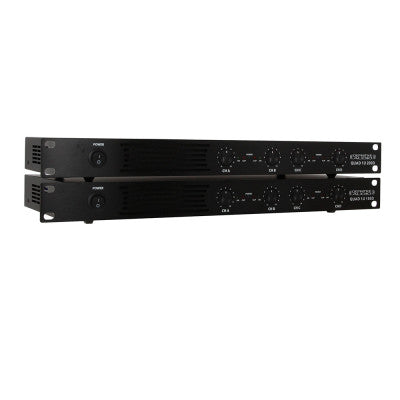

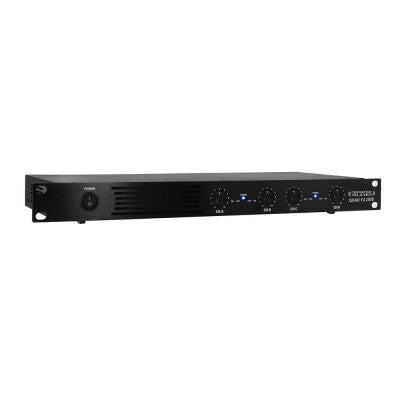

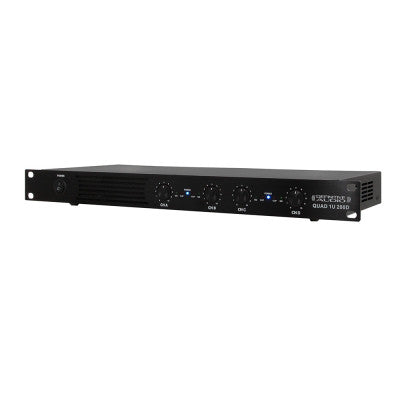

QUAD 1U 200D è un amplificatore di potenza a 4 canali appositamente progettato per installazioni come ristoranti, bar, sale riunioni e tutti gli spazi che richiedono la diffusione del suono. E' basato su una circuitazione in Classe-D, che consente prestazioni elevate con un peso molto contenuto. Con una altezza è di 1U nel formato rack standard da 19", può essere collocato in un flight case o in una sala di controllo occupando pochissimo spazio.
- - - - - - - - - - The QUAD 1U 200D is a 4-channels power amplifier specially designed for installations such as restaurants, bars, meeting rooms and all spaces that require sound diffusion. It is based on a Class-D circuitry, which allows high performance with a very low weight. With a height of 1U in the standard 19" rack format, it can be placed in a flight case or control room taking up very little space.
- - - - - - - - - -
- Class-D power amplifier
- Continuous power: 4 x 200 W 4 ohms and 4 x 120 W 8 ohms
- Bridge mode: 2 x 400 W 8 ohms
- Damping factor: 260
- Input impedance: 10 kohms unbalanced, 20 kohms balanced
- Frequency response: 20 Hz – 20 kHz ±0.5 dB
- THD+N: 0.05%
- Distortion (SMPTE-IM): <0.5%
- S/N ratio: >100 dB

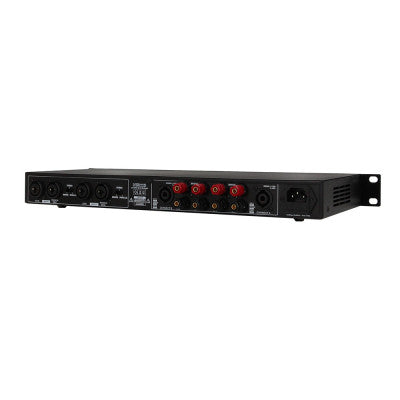

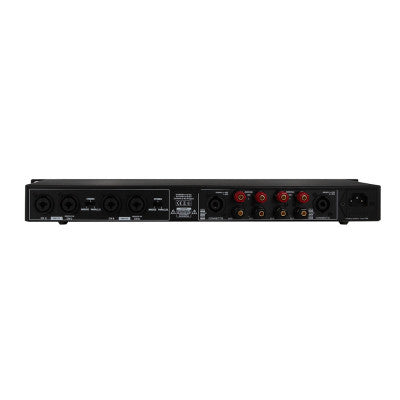

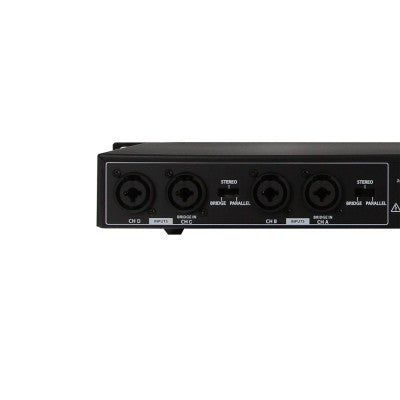

- Input connectors: Combo XLR and jack

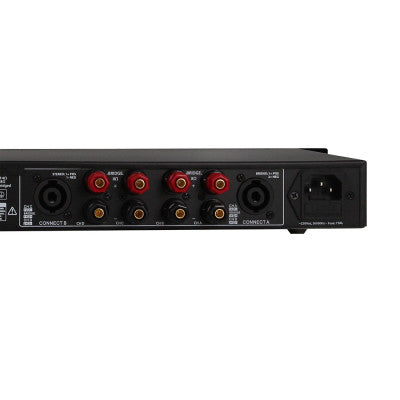

- Output connectors: output terminals and speakON

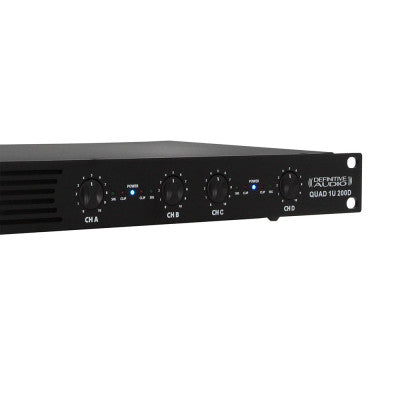

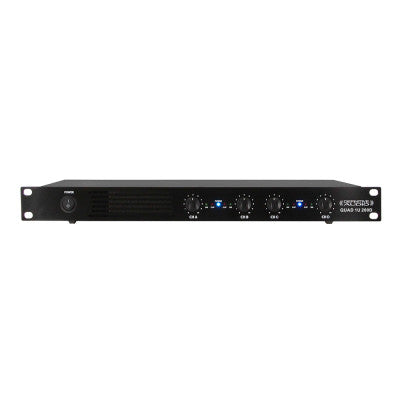

- Front control: ON/OFF switch and volume
- Rear control: bridge, parallel and stereo selector per pair of channels
- Power supply: 230 VAC 50/60 Hz
- Dimensions: 482 x 230 x 44 mm
- Weight: 2.90 kg
