Descrizione

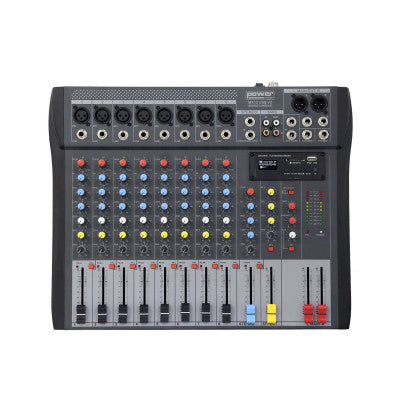

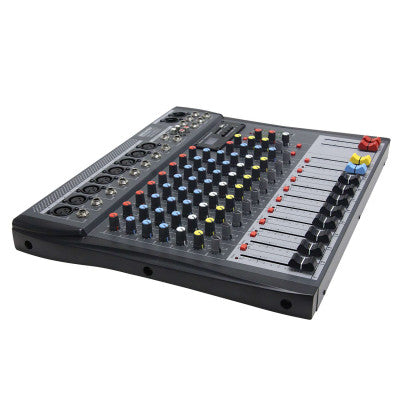

MX12 USB V2 incorpora una porta USB per registrazione/ascolto, 8 ingressi mono (microfono XLR, linea sbilanciata da 6,35 mm), 2 ingressi di linea bilanciati da 6,35 mm, 2 ingressi TAPE e unità effetti. Power Acoustics presenta la nuova generazione degli MX USB V2 che ora include un lettore multimediale completo in grado anche di registrare. Questa serie di mixer è stata realizzata con componenti di alta qualità e dispone di preamplificatori microfonici a basso rumore utile. Per gli ingressi Mic/line è presente un equalizzatore a 3 bande. La serie è composta da quattro modelli: 8, 10, 14 e 18 canali, adatti a qualsiasi tipo di utilizzo. MX USB V2 ha un design ultraleggero, è sottilissimo e facile da trasportare: insomma soddisferà anche gli utenti più esigenti. (senza Phantom 48 V)
- - - - - - - - - - Power Acoustics introduces the next generation of MX USB V2, which now includes a full-feature media player with recording capability. Manufactured using high-quality components, this series of mixers features very low-noise microphone preamps. There is a 3-band EQ for the mic/line inputs. The range consists of four models: with 8, 10, 14 and 18 inputs, which will be suitable for all types of occasion. Ultra-light, ultra-thin and easily transportable design for performing on-the-go, the MX USB V2 will satisfy even the most demanding users. (without 48 V Phantom)
- - - - - - - - - -
Technical specifications:
- 8 XLR microphone inputs
- 8 x 6.35 mm unbalanced line jack inputs
- 2 x 6.35 mm balanced line jack inputs
- TAPE inputs / outputs on RCA
- 2 x XLR and 2 x 6.35 mm jack outputs
- AUX send
- Control Room
- Very low noise preamp
- Adjustable Echo type effect
- 3 tone corrections per channel
- Clipping LED
- Linear volume faders per channel
- LED VU m
- Headphone jack
- Frequency response: MIC / line input to any output: ±0.5 dB, 20 Hz - 20 kHz
- THD: MIC sensitivity -30 dBu, +14 dBu @ Mix output <0.007%
- Noise: MIC input E.I.N. (maximum gain): -128 dBu
- Aux, Mix and Master (@ 0 dB, roll- off) <-85 dBu
- Input and output impedances: MIC input 2.4 kohm, Line input 11 k ohm and stereo input 100 kohm
- Input and output levels: MIC input +17 dBu max, Line input +30 dBu max, Stereo input +30 dBu max. and Mix output +20 dBu
- Earphone 300 m W
- EQ (mono / stereo input): HF 12 kHz ±15 dB, MF 140 Hz - 3 kHz ±15 dB, LF 80 Hz ±15 dB
- Dimensions (H x W x D): 350 x 376 x 74 mm
- Weight: 5.0 kg
