Descrizione
Unità di espansione di 4 canali ingresso microlinea per una unità EXMOD Tesira; bilanciati elettronicamente con morsetti euroblock; Alimentazione Phantom a 48VDC; Guadagno variabile da 0 a 66dB con step di 6dB; livello regolabile da -100dB a +12dB per linea uscita; audio e controlli da sistema AVB; indicatori frontali dello status apparecchio.

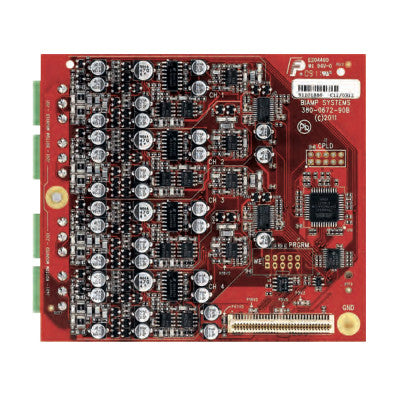

- - - - - - - - - - The Tesira® EIC-4 is an expander card with 4 analog input channels for use with Tesira EX-MOD device. The EIC-4 is one of three optional cards that can be mounted in Tesira EX-MOD. Each EIC-4 provides 4 channels of mic/line level audio input. The inputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert
- - - - - - - - - -
- 4 channels of balanced mic or line level input
- Plug-in barrier strip connectors
- 0 – 66dB gain, adjustable in 6dB increments
- Clip indicator
- +48V Phantom Power
- -100dB to +12dB fader range for level
- Signal invert for reverse polarity
- RoHS compliant and AES grounded
- Covered by Biamp Systems’ 5-year warranty
- Frequency Response (20Hz~20kHz @ +4dBu): +0/-0.25dB
- THD+N (20Hz~20kHz):
- @ 0dB Gain, +4dBu In: < 0.006%
- @ 54dB Gain, -50dBu In: < 0.040%
- EIN (20Hz~20kHz, 66dB Gain, 150Ω): < -125dBu
- Dynamic Range (20Hz~20kHz, 0dB): > 108dB
- Input Impedance (balanced): 8kΩ
- Maximum Input: +24dBu
- Maximum Gain: 66dB
- Input Gain Range (6dB Steps): 0 - 66dB
- Phantom Power: +48 VDC (7mA/input)
- Cross Talk (channel to channel @ 1kHz):
- @ 0dB Gain, +4dBu In: < 85dB
- @ 54dB Gain, -50dBu In: < 75dB
- Sampling Rate: 48kHz A/D Converters: 24-bit
