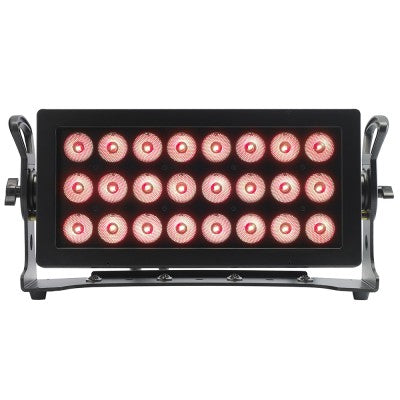

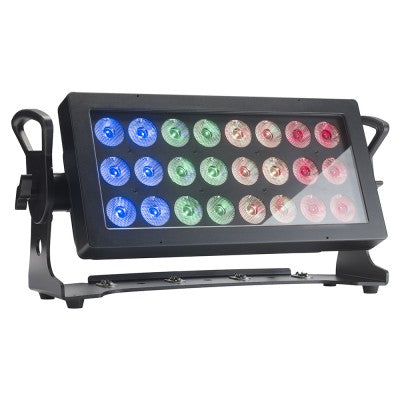

IPANEL24x10QC - LED Panel Projector, 24 x10 W QC IP65

Potente pannello LED a 5 colori in un alloggiamento in alluminio impermeabile. Proiettore a pannello LED progettato per applicazioni interne ed esterne, installazioni architetturali, palchi da concerto, spettacoli dal vivo, stand fieristici, showroom, convegni, ristoranti, hotel, discoteche, lounge, matrimoni, giardini, service di noleggio. 24 LED RGB W da 10 W con doppia lente. Angolo del fascio: 31°. Curva dimmer selezionabile. Modalità di controllo DMX da 2 a 20 canali. Modalità operativa Standalone e Master/Slave. Modalità audio. Spettacoli integrati e programmi utente personalizzabili. Valvola di compensazione della pressione con membrana impermeabile. Staffa di supporto per montaggio a pavimento. Grado di protezione IP65. Connettori DMX e di alimentazione IN/OUT waterproof. - - - - - - - - - - Powerful 5 color LED Panel into a waterproof aluminium housing. LED Panel light projector designed for indoor and outdoor applications, architectural installations, concert stages, live shows, exhibition booths, showrooms, conferences, restaurants, hotels, discoteques, lounges, weddings, gardens, rental companies. 24 x 10 W RGB W LEDs with double lense. Beam angle: 31°. Selectable dimmer curve. DMX control modes from 2 to 20 channels. Standalone and Master/Slave operating mode. Sound mode. Built in shows and customisable user programs. Pressure compensation valve with waterproof membrane. Holding bracket for floor mounting. IP65 protection rate. Weatherproof DMX and power IN/OUT connectors. - - - - - - - - - -

Optical

• LEDs: 24x 10 W RGB W LEDs Light output
• 3133 Lux at 3m
• 1083 Lux at 5 m Double lens designed for a perfect beam diffusion
• Beam angle: 31°

Functions

Built-in command panel with drop-down display to:

• Select the DMX address
• Select the number of channels: 2, 4, 6, 8, 16, 18 or 20
• Select color presets or built-in shows
• Select dimmer curves
• Master/Slave Mode
• Manual Mode
• User program to create your own programs

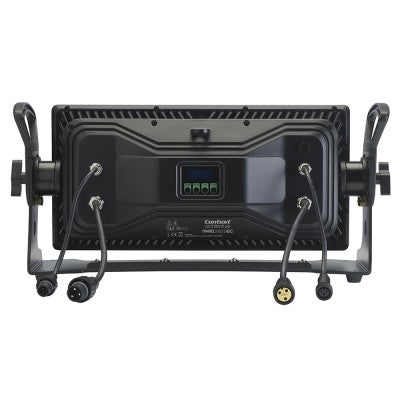

Connectors

• DMX IN and OUT via molded cord 3-pin plug
• POWER IN/OUT via molded cord 3-pin plugs

Additional information

• Power supply: 100-240V/50-60 Hz
• Power consumption: 240 W
• Cooling system: convection-cooLED
• Finish: die-cast aluminium painted black
• Pressure compensation valve with waterproof membrane
• Dimensions: 582 x 270 x 178 mm
• Weight: 15 kg

Package contents

The package must contain the following elements:

• The projector
• The user guide
• One IP molded cord / 2 poles + earth power cord (1.8 m)
• One cord with molded plugs / XLR male (1.0 m)
• One cord with molded plugs / XLR female (1.0m)

- - - - - - - - - - formato cm : 44,95x44,95x44,95 - - - - - - - - - - peso kg : 19,3
