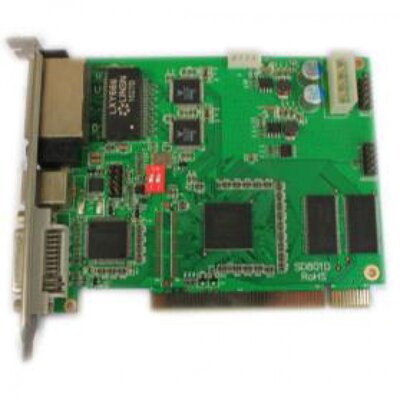

Linsn Technology - TS802 - Linsn TS802 LED sending card

Sending card per display LED da inserire nello slot PCI del PC o utilizzare esternamente con una sorgente di alimentazione a 5 VDC. Riceve i segnali video dal computer e li invia alla scheda ricevente del display su una distanza trasmissiva massima di 170 m. Una scheda TS802 può supportare al massimo 2048 x 640 pixel, con uscite U e D. Il suo dip switch on-board di cui è dotata consente di utilizzare un massimo di quattro schede in cascata, per soddisfare esigenze di risoluzione più ampie (per esempio 2048 x 1152, 4096 x 640, 4096 x 1152 ecc.). Questo modello supporta anche la funzione di trasmissione dati audio; per farlo, è necessaria utilizzare una scheda funzione. TS802 è un in grado di controllare pixel reali, pixel virtuali, display a colori, a doppio colore e a singolo colore.

Technical characteristics

• 5 V_DC 2 A
• Can put inside the PC by PCI slot, or put outside the PC by adding a 5V power supply
• One TS802 LED sending card can max. support 2048 (width) x 640 (height) pixels (with U and D outputs)
• One SD802D LED control card with one network cable output can support 1600 x 400 or 2048 x 320 pixels
• Model 802 has the audio data transmission function. To apply TS802's audio function, a function board is needed.
• Its dip switch can realize max. 4 cards cascaded, to meet a larger resolution needs (eg. 2048 x 1152, 4096 x 640, 4096 x 1152 etc.)
• TS802 is full-color sender, can control real pixel, virtual pixel, full-color, double color and single color display

Model 802 can max. support 2048 x 1152 pixels.

Single card model 802 can control 2048 x 640 pixels.

Model 802 has been added the voice transmission and cascade functions.

English description : Sending card for LED displays to be inserted into the PCI slot of the PC or used externally with a 5 VDC power source. Receives video signals from the computer and sends them to the display receiving card over a maximum transmission distance of 170 m. A TS802 card can support a maximum of 2048 x 640 pixels, with U and D outputs. Its on-board dip switch allows you to use up to four cards in cascade, to meet wider resolution needs (for example 2048 x 1152, 4096 x 640, 4096 x 1152 etc.). This model also supports audio data transmission function; to do this, a function card must be used. TS802 is a capable of controlling real pixel, virtual pixel, full color, dual color and single color display.
