NovaStar
Prezzo:
€4.358

Descrizione

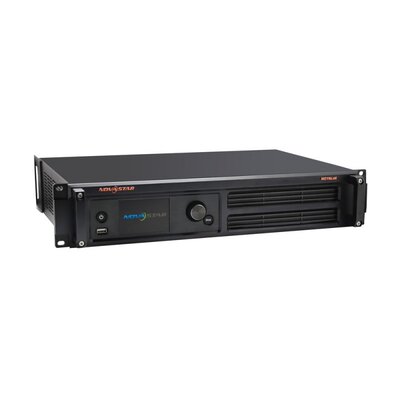

MCTRL4K è un controller indipendente 4K x 2K sviluppato da NovaStar. Con una capacità di carico fino a 3840 x 2160 @ 60 Hz per una singola unità, può supportare qualsiasi risoluzione personalizzata all'interno di questa gamma, soddisfacendo così i requisiti di configurazione di display LED di grosse dimensioni. In modalità Multi-card, l'MCTRL4K può essere utilizzato come due controller indipendenti, rendendo le immagini di due fonti di input perfettamente visualizzate sullo schermo. Inoltre, MCTRL4K supporta la funzione HDR e può lavorare con A8s/A10s per migliorare notevolmente la qualità dell'immagine dello schermo, presentando immagini più vivide e chiare. Caratteristiche principali Connettori d'ingresso 1 x DP 1.2, 2 x DVI dual-link e 1 x HDMI 2.0 Supporta 16 porte Gigabit Ethernet e 4 uscite in fibra ottica 3 profondità di bit video: 8, 10 e 12 bit Modalità Mosaic che Multi-card quando viene utilizzato DVI dual-link Supporta HDR10, che può migliorare notevolmente la qualità dell'immagine dello schermo Possibilità di risoluzione super elevata con scheda grafica NVIDIA Adotta un design architettonico innovativo per abilitare una configurazione intelligente, che può ridurre notevolmente i tempi della fase di preparazione  Motore NovaStar G4 per realizzare una visualizzazione delle immagini perfetta senza sfarfallio e linee di scansione, con qualità eccellente e buon senso di profondità Supporta la nuova generazione di tecnologia di calibrazione a livello di pixel di NovaStar per offrire un processo di calibrazione rapido ed efficiente. Implementa la calibrazione del bilanciamento del bianco e la mappatura della gamma di colori per garantire che i colori siano riprodotti fedelmente Supporta la configurazione dello schermo in qualsiasi momento senza un PC o con interfaccia Web Regolazione manuale facile e veloce della luminosità dello schermo Possibile collegamento a cascata di più controller per un controllo uniforme Supporta vari formati video Vantaggi per gli utenti Alta risoluzione, fino a 4K x 2K Molteplici connessioni (DP 1.2, HDMI 2.0 e Dual-link DVI) Bassa latenza Supporto HDR Ridondanza completa Controllo tramite webpage Trasmissione ottica per lunghe distanze Ambiti di utilizzo Live broadcasting Post-produzione Concerti Eventi live  Monitoraggio di sicurezza Giochi olimpici Centri sportivi - - - - - - - - - - MCTRL4K is a 4K x 2K independent controller developed by NovaStar. With a load capacity of up to 3840 x 2160 @ 60Hz for a single unit, it can support any custom resolution within this range, thus meeting the configuration requirements of large-size LED displays. In Multi-card mode, MCTRL4K can be used as two independent controllers, making the images of two input sources perfectly displayed on the screen. In addition, MCTRL4K supports HDR function and can work with A8s/A10s to greatly improve the image quality of the screen, presenting more vivid and clear images. Main features 1 x DP 1.2, 2 x dual-link DVI and 1 x HDMI 2.0 input connectors Supports 16 Gigabit Ethernet ports and 4 fiber optic outputs 3 video bit depths: 8, 10 and 12 bits Mosaic mode and multi-card when using dual-link DVI Supports HDR10, which can greatly improve the image quality of the screen Super high resolution capability with NVIDIA graphics card Adopt innovative architectural design to enable intelligent configuration, which can greatly reduce the time of the preparation phase NovaStar G4 engine to realize perfect image display without flickering and scanning lines, with excellent quality and good sense of depth Supports NovaStar's new generation of pixel-level calibration technology to provide a fast and efficient calibration process. Implements white balance calibration and color gamut mapping to ensure colors are faithfully reproduced Supports anytime display setup without a PC or with Web interface Easy and fast manual adjustment of display brightness Multiple controllers can be daisy-chained for uniform control Supports various video formats User benefits High resolution, up to 4K x 2K Multiple connections (DP 1.2, HDMI 2.0 and Dual-link DVI) Low latency HDR support Full redundancy Website control Long-distance optical transmission Areas of use Live broadcasting Post-production Concerts Live events Security monitoring Olympic games Sports centers - - - - - - - - - -

Technical characteristics

Inputs

  • DP 1.2
    • Maximum resolution: 4096 x 2160 @ 60 Hz
    • Minimum resolution: 640 x 480 @ 24 Hz

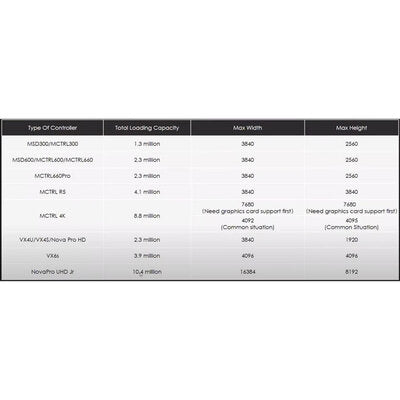

    • Pixel capacity: 8,800,000 pixels
    • Custom resolutions supported:
      • Max. width: 7680 x 1080 @ 60 Hz
      • Max. height: 1080 x 7680 @ 60 Hz
    • Supports HDCP 1.3
    • Supported standard resolutions:
      • 1280 x 1024 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1366 x 768 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1440 x 900 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1600 x 1200 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 1080 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 1200 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 2160 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 2560 x 1600 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 3840 x 1080 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 3840 x 2160 @ (24 / 25 / 30 / 48 / 50 / 60) Hz
  • HDMI 2.0
    • Maximum resolution: 4096 x 2160 @ 60 Hz
    • Minimum resolution: 800 x 600 @ 30 Hz
    • Pixel capacity: 8,800,000 pixels
    • Custom resolutions supported:
      • Max. width: 7680 x 1080 @ 60 Hz
      • Max. height: 1080 x 7680 @ 60 Hz
    • Supports HDCP 1.4 and HDCP 2.2
    • Supported standard resolutions:
      • 1280 x 1024 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1440 x 900 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1600 x 1200 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 1080 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 1200 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 2160 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 2048 x 1536 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 2560 x 1600 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 3840 x 1080 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 3840 x 2160 @ (24 / 25 / 30 / 48 / 50 / 60) Hz
  • Dual DVI-D
    • Max. resolution: 3840 x 1080 @ 60 Hz
    • Min. resolution: 800 x 600 @ 30 Hz
    • Pixel capacity: 8,300,000 pixels
    • Custom resolutions supported:
      • Max. width: 3840 x 2160 @ 60 Hz
      • Max. height: 2160 x 3840 @ 60 Hz
    • Supported standard resolutions:
      • 1280 x 1024 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1366 x 768 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1440 x 900 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1600 x 1200 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 1080 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100 / 120) Hz
      • 1920 x 1200 @ (24 / 25 / 30 / 48 / 50 / 60 / 72 / 75 / 85 / 100) Hz
      • 1920 x 2160 @ (24 / 25 / 30 / 48 / 50 / 60) Hz
      • 2560 x 1600 @ (24 / 25 / 30 / 48 / 50 / 60) Hz
      • 3840 x 1080 @ (24 / 25 / 30 / 48 / 50 / 60) Hz
      • 3840 x 2160 @ (24 / 25 / 30) Hz

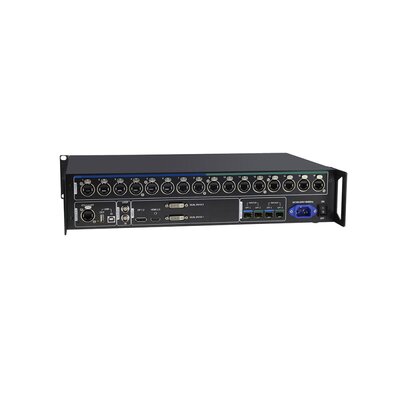

Outputs

  • Ethernet ports
    • 16 Neutrik (NE8FBH) Gigabit Ethernet ports

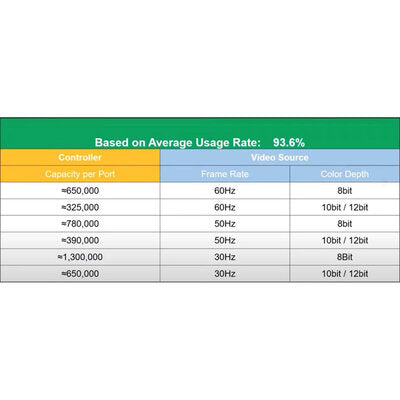

    • Maximum loading capacity of a single Ethernet port:
      • For 8-bit input sources: 650,000 pixels
      • For 10-bit / 12-bit input sources: 320,000 pixels
    • Do not support audio output
    • Support redundancy between Ethernet ports
  • Optical ports
    • 4 x 10G optical ports
    • Single-mode twin-core fiber:
      • Support LC optical connectors
      • Wavelength: 1310 nm
      • Transmission distance: 10 km
      • OS1 / OS2 recommended
    • Dual-mode twin-core fiber:
      • Support LC optical connectors
      • Wavelength: 850 nm
      • Transmission distance: 300 m
      • OM3 / OM4 recommended
    • The maximum loading capacity of a single optical port equals to that of all the 8 Ethernet ports
    • 4 OPT inputs / outputs:
      • OPT1 and OPT2 are main input / output ports
      • OPT1 corresponds to Ethernet ports 1 – 8 and OPT2 corresponds to Ethernet ports 9 – 16
      • OPT3 and OPT4 are backup input / output ports
      • OPT3 is a duplicate channel of OPT1, and OPT4 is a duplicate channel of OPT2

Control

  • Ethernet: for PC connection
  • USB IN: input port for cascading devices, or connecting to PC
  • USB OUT: output port for cascading devices
  • Genlock IN: Genlock input connector
    • Genlock type: blackburst
    • Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL4K units and the external Genlock signal
  • Genlock LOOP: Genlock loop output connector
    • Up to 10 MCTRL4K units can be cascaded

Power

  • AC 100 – 240 VAC 50/60 Hz
