» Specifiche tecniche / Technical specs | » English description

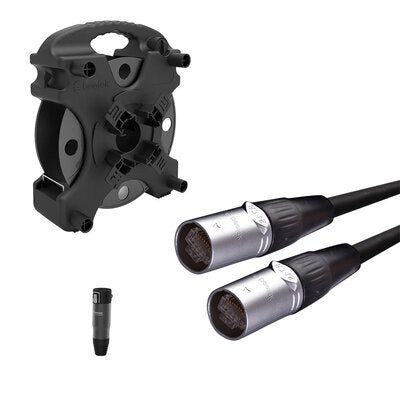

Descrizione (IT): Kit costituito da cavo CAT6a S/FTP da 50 m con connettori etherCON (W400-50M-B) + avvolgicavo (DF100) + cappuccio di protezione per salvaguardare il cavo CAT (BH03). W400-50M-B Progettato appositamente per mixer digitali illuminazione DMX extender HDBaseT e sistemi LED questo cavo CAT6a S/FTP da 50 m adotta una guaina esterna realizzata nell'esclusivo materiale TPE per aumentare la flessibilità la resistenza alla trazione/usura e la durata. Il corpo del cavo è realizzato in rame privo di ossigeno (OFC) 23 AWG a 8 fili. Utilizza una schermatura in lamina di alluminio intrecciata e una schermatura intrecciata in alluminio e magnesio con un tasso di schermatura del 100% per prestazioni superiori. I connettori RJ45 sono di tipo etherCON con pin placcati oro 50 μm. Caratteristiche principali Cavo di rete CAT6a S/FTP pronto all’uso progettato per mixer e applicazioni d'illuminazione DMX Doppia schermatura con 8 conduttori Frequenza di trasmissione di 500 MHz e velocità di trasmissione di 10 Gbps Rame OFC (privo di ossigeno) a singolo filo con 8 conduttori 23 AWG La schermatura intrecciata e a treccia offre un tasso di schermatura del 100% Guaina in materiale TPE per aumenta la flessibilità la resistenza alla trazione e la durata del cavo Robusti connettori RJ45 etherCON Disponibile in lunghezze da 5 m a 100 m Lunghezze di 20 m e oltre possono essere avvolte sugli avvolgicavo Beetek delle serie DF e PCD DF100 Avvolgicavo specificamente sviluppato e progettato per il settore rental e dell'allestimento adatto per cavi video audio in fibra ottica e di rete. Sono disponibili diversi colori per differenziare i vari tipi di cavo ed è possibile avere un'etichettatura per una facile identificazione. Ha manicotti protettivi per connettori in lega di alluminio abbinati in base al tipo di cavi utilizzati. DF 100 è leggero e può essere utilizzato per conservare 100 m di cavo in fibra ottica e 70 m di cavo di rete. Caratteristiche principali La struttura portante e il fermo integrati possono ritrarsi e srotolare facilmente e possono essere gestiti da una singola persona Può essere impilato o appeso al rack risparmiando più spazio per lo stoccaggio La bobina completamente chiusa funge da protezione anticaduta antiurto e facile da trasportare BH03 BH03 è un cappuccio di protezione staccabile di medie dimensioni in lega di alluminio per salvaguardare la fibra ottica e altri tipi di cavi durante le installazioni. Può essere utilizzato con qualsiasi cavo che abbia un diametro esterno fino a 35 mm. Un prodotto semplice ma efficace progettato appositamente per il settore del noleggio e dell'allestimento per proteggere la fibra ottica a sei nuclei cavi CAT SDI HDMI DP e altri da ambienti difficili.
- Peso: 7000 g
- Dimensioni (cm): 0 (H) × 0 (W) × 0 (L)
Description (EN)
Kit consisting of 50 m CAT6a S/FTP cable with etherCON connectors (W400-50M-B) + cable reel (DF100) + protective cap to protect the CAT cable (BH03). W400-50M-B Specially designed for digital mixers DMX lighting HDBaseT extenders and LED systems this 50 m CAT6a S/FTP cable adopts an outer jacket made of the unique TPE material to increase flexibility tensile/wear resistance and durability. The cable body is made of 23 AWG 8-wire oxygen-free copper (OFC). It uses braided aluminum foil shield and braided aluminum magnesium shield with a 100% shielding ratio for superior performance. The RJ45 connectors are etherCON type with 50 μm gold-plated pins. Main features Ready-to-use CAT6a S/FTP network cable designed for DMX mixers and lighting applications Double shielded with 8 conductors 500 MHz transmission frequency and 10 Gbps transmission speed Single strand OFC (oxygen-free) copper with 8 conductors 23 AWG Stranded and braided shielding offer 100% shielding rate TPE jacket material for increased flexibility tensile strength and durability of the cable Robust RJ45 etherCON connectors Available in lengths from 5 m to 100 m Lengths of 20 m and more can be wound on Beetek DF and PCD series cable reels DF100 Cable reel specifically developed and designed for the rental and staging industry suitable for video audio fiber optic and network cables. Different colors are available to differentiate the various types of cable and labeling is possible for easy identification. It has matching aluminium alloy connector protective sleeves based on the type of cables used. DF 100 is lightweight and can be used to store 100 m of fiber optic cable and 70 m of network cable. Main features The integrated bearing structure and stopper can retract and unwind easily and can be operated by a single person It can be stacked or hung on the rack saving more space for storage Fully enclosed reel serves as a protector anti drop anti collision and easy to transport BH03 BH03 is a medium aluminum clamshell-style cap to protect fiber optic and other types of cables during installations. It can be used with any cable with an outside diameter of up to 35mm. A simple yet effective product specifically designed for the rental and stage industry to protect six-core fiber optic CAT SDI HDMI DP and other cables from harsh environments.
Specifiche Tecniche
Technical characteristics
W400-50M-B
- CAT6 S/FTP network cable (etherCON)
- Lenght: 50 m
- Connector type: RJ45 S/FTP
- Cable type: CAT6a SFTP
- Environmental information: RoHS 2.0 compliant
- RJ45 connector: etherCON
- Connector type: RJ45 S/FTP
- Gold plate thickness: 50 µm
- Latch tab: integrated break-resistant tab
- Structure: conductor + insulation + aluminum foil + ground wire + braid + jacket
- Conductor gauge: 23AWG
- Conductor size: 0.26 ±0.008 mm x 8
- Conductor material: single strand oxygen free copper
- Insulation material: foam-skin PE
- Insulation color code:
- 1P: blue & white / blue
- 2P: orange & white / orange
- 3P: green & white / green
- 4P: brown & white / brown
- Core wire direction: s
- Core wire lay length: < 30 mm
- Cable direction: s
- Cable lay length: ≦ 120 mm
- Outer jacket material: double-layer PVC
- Aluminium foil: aluminum foil pair shielded
- Ground wire: 7 x 0.16 mm multi-strand oxygen free copper (26 AWG)
- Braid material: 128 x 0.12 mm tinned copper braid shield
- Shielding rate: 100%
- Jacket material: TPE
- Jacket outer diameter: 8.0 ±0.20 mm
- Jacket color: black
- Conductor resistance:<68.4 ohm/km at 20 ℃
- Insulation resistance: >5000 ohm at 20 ℃
- Withstand voltage: 1000 VDC/1 min no breakdown
- Delay difference: ≤ 30 ns/100 m (1 - 125 MHz)
- Frequency: 500 MHz
- Testing: PASS FLUKE
- Insulation elongation: ≥ 300%
- Insulation tensile: ≥16 Mpa
- Jacket elongation: ≥ 100%
- Jacket tensile: ≥ 12.5 Mpa
- Maximum relative mutual coupling capacitance: 5.6 nF/100 m
- Maximum capacitance unbalance: 330 pF/100 m
- Operating temperature: -20 to 80 ℃
- Operating voltage: 60 V
DF100
- Product material: ABS PP
- Product color: black
- Multi-surface placement: all five surfaces can be placed on the ground / table surface
- Portable / hanging: portable or placed on a cable rack
- Stackable: multiple units can be stacked together to save space
- Custom information: user can customize information for easy management
- Anti-fall & anti-collision: enclosed reel design is anti-fall and anti-collision convenient for transportation
- Single-person manageability one person can quickly unwind and retract cable
- Folding handle: yes
- Extended handle: supports detachable extended handle
- Bearing structure: labor-saving built-in bearing
- Cable holder: yes
- RJ45 connector holder: yes
- Connector protector holder: supports BH01 BH02 and BH03 connector protector
BH03
- Product material: aluminum alloy shell
- Product color: black
- Applicable products: fiber CAT HDMI / DP cables
- Maximum outer diameter: 35 mm
- Product structure: peanut shell structure (detachable design for easy installation)
- Customer logo: customization provided for 1000 pieces or more
- Size: 130 x 35 x 48.47 mm
- Weight: 56.6 g
