Descrizione
» Specifiche tecniche / Technical specs | » English description
Descrizione (IT): Kit composto da 4 fari architetturali a LED da 18 x 10 W IP65 alimentati a batteria + flight case con sistema di ricarica. Questo faro compatto utilizza come sorgente luminosa 18 LED di tipo RGBW 4-in-1 da 10 W cadauno. Con un angolo del fascio di 20° la luce rimane omogenea anche ai bordi sia con i colori primari che con quelli combinati. Grazie alla tecnologia smooth dimming a 32 bit assicura riprese senza sfarfallio qualora usato in ambito broadcast con telecamere. Altre cararatteristiche sono l'effetto Strobo elettronico lineare variabile dimming e cambio colore. Molto interessante la modalità emergency che può essere personalizzata scegliendo tra blackout hold e white; la transizione tra la modalità normale e quella emergency avviene tramite dissolvenza senza salti. Un filtro frost 40° e un filtro speciale 60° x 10° sono inclusi. Dispone di 37 preset / programmi integrati e funziona in modalità stand-alone Master/Slave e DMX (incl. LumenRadio Wireless DMX). In quest'ultimo caso i canali disponibili sono 3 4 6 8 o 11. La funzione DMX lost molto importante in modo da non trovare sorprese se c'è una perdita di segnale durante lo show è on-board e può essere impostata anch'essa su blackout hold e altri parametri. Per il setup si usa un sistema a menu chiaro e ben strutturato coadiuvato da tasti touch e da un display OLED. Altro punto di forza è il sistema di raffreddamento a convezione non richiede quindi ventole e non genera alcun rumore. Infine questo faro è certificato IP65 per fuzionare anche in ambienti outdoor senza temere polvere e umidità. Vantaggi per gli utenti Praticità: menu semplice e intuitivo modalità emergenza RDM e WDMX Grande robustezza con una scocca totalmente in alluminio IP65 Tecnologia all'avanguardia Flicker Free Funzione Lost DMX Sistema di raffreddamento a convezione Ampia dotazione di accessori come bandiere e filtri Ambiti di utilizzo Architetturale Concerti Teatri Installazioni fisse
- Peso: 70000 g
- Dimensioni (cm): 0 (H) × 0 (W) × 0 (L)
Description (EN)

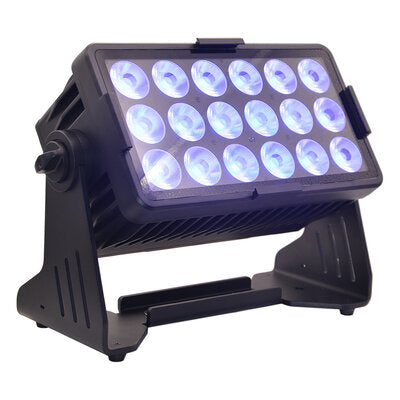

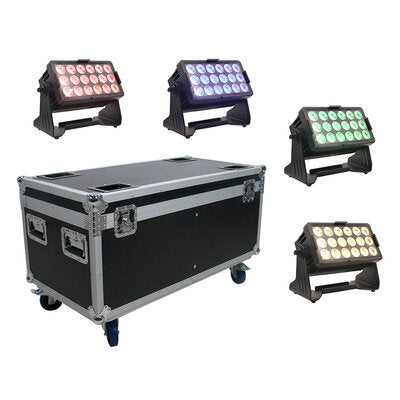

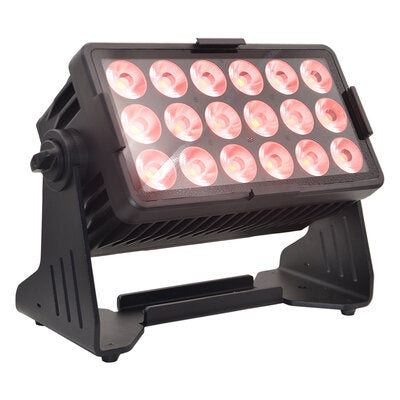

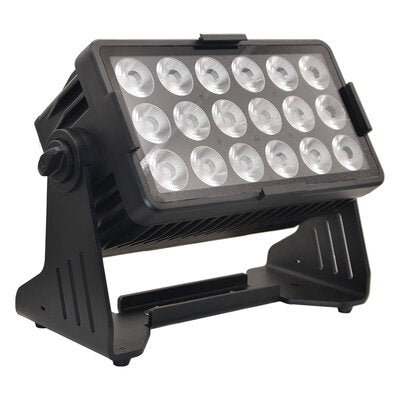

Kit consisting of 4 architectural LED spotlights 18 x 10 W IP65 battery powered + flight case with charging system. This compact spotlight uses 18 RGBW 4-in-1 LEDs of 10 W each as a light source. With a beam angle of 20° the light remains homogeneous even at the edges with both primary and combined colors. Thanks to the 32-bit smooth dimming technology it ensures flicker-free shooting when used in broadcast environments with cameras. Other features include the variable linear electronic Strobe effect dimming and color change. The emergency mode is very interesting which can be customized by choosing between blackout hold and white; the transition between normal and emergency mode occurs via fading without sudden jumps. A 40° frost filter and a 60° x 10° special filter are included. It has 37 integrated presets / programs and works in stand-alone Master/Slave and DMX modes (incl. LumenRadio Wireless DMX). In the latter case the available channels are 3 4 6 8 or 11. The DMX lost function very important in manner not to find surprises if there is a loss of signal during the show is on-board and can also be set to blackout hold and other parameters. For the setup a clear and well-structured menu system is used supported by touch keys and an OLED display. Another strong point is the convection cooling system therefore it does not require fans and does not generate any noise. Finally this spotlight/floodlight is IP65 certified to work even in outdoor environments without fear of dust and humidity. Users benefits Practicality: simple and intuitive menu emergency mode RDM and WDMX Great robustness with a completely aluminum body IP65 Cutting-edge Flicker Free technology Lost DMX function Convection cooling system Wide range of accessories such as barndoors and filters Areas of use Architectural Concerts Theatres Fixed installations
Specifiche Tecniche
Technical characteristics
Input voltage | 100 - 260 VAC 50/60 Hz |
Power consumption | 145 W |
Wirless DMX | CRMX |
IR control | infrared remote control up to 15 m |
LED | 18 x 10 W RGBW 4-in-1 LEDs |
LED life span | 50000 - 100000 hours |
DMX channels | 3 4 6 8 or 11 CH |
Control mode | stand-alone Mater/Slave auto IR control |

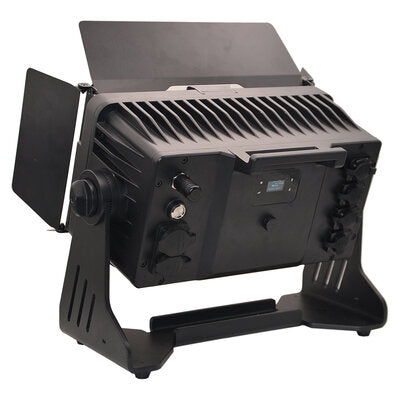

Signal input & output | 3-pin XLR male 3-pin XLR female 5-pin XLR male 5-pin XLR female |
Function effect | dimmer strobe gradual change |
Refresh rate | 1.5 kHz flicker free for TV and camera shooting |
Beam angle | 20° |
Cooling mode | natural convection (no fan no noise) |
Protection grade | IP65 |
Anti-electricity intension | >1.5 kV |
Insulation resistance | > 2 Mohm |
Dimensions | 41 x 18.4 x 26.9 cm |
Weight | 10.5 kg |
What's in the box |

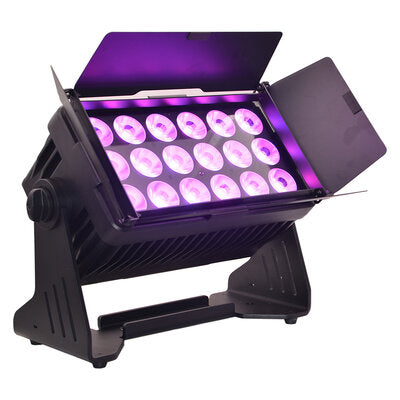

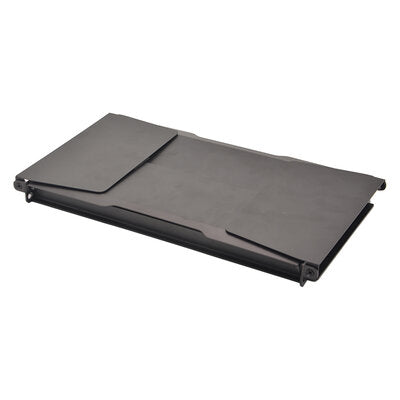

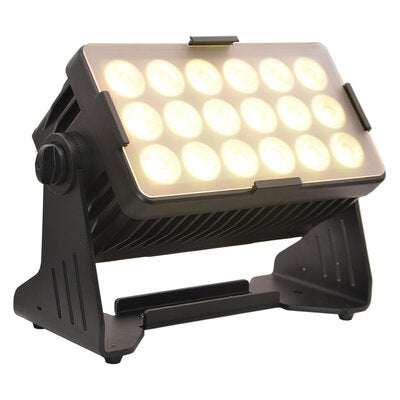

4 architectural LED spotlights 18 x 10 W + flight case with charging system floodlight barndoor 40° frost filter 60 x 10° special filter power cord IR remote control omega bracket |
