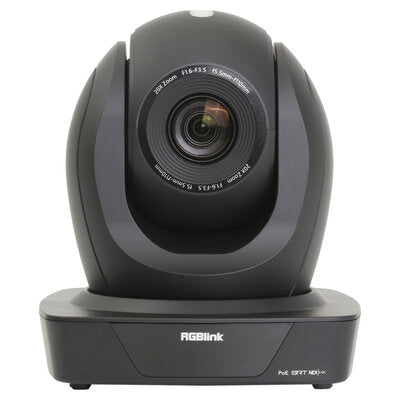

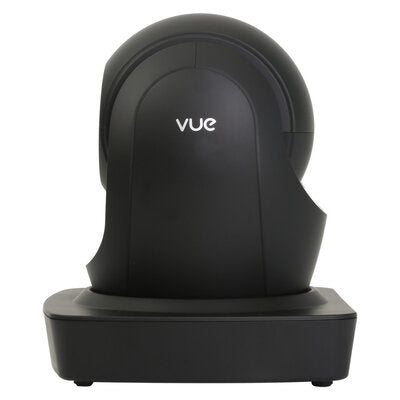

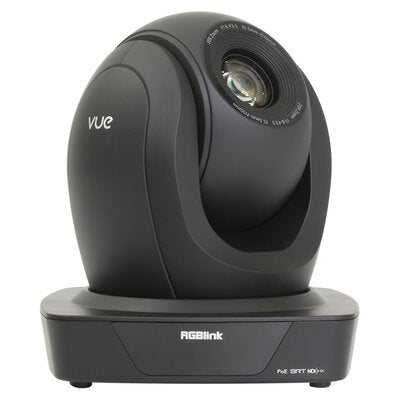

RGBlink - RGB20X-PNDI-TLY - POE & NDI PTZ camera, 20x zoom, Full HD with HDMI / 3G-SDI / LAN / NDI interface

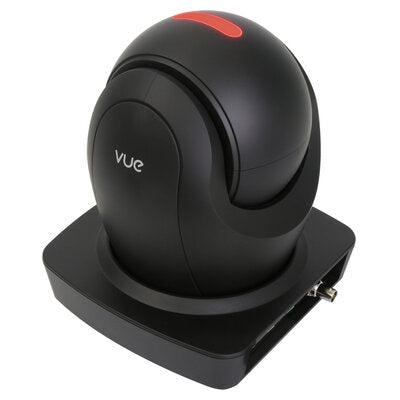

Videocamera PTZ Full HD (fino a 60 fps) con alimentazione PoE, zoom ottico 20x (digitale 10x) e interfacce HDMI / 3G-SDI / LAN + NDI per Video over IP. È dotata di un avanzato processore d'immagini ISP e di un sensore d'immagine da 2,07 Mpixel. La messa a fuoco è automatica o manuale. Presente la funzione WDR (Wide Dynamic Range) e la riduzione dinamica del rumore 2D / 3D (DNR) fino a 60 fps. RGB20X-PNDI-TLY è inoltre dotata dell'esclusivo indicatore luminoso Tally, integrato direttamente nell'alloggiamento per una visione a 360°. Caratteristiche principali Zoom ottico ad alta velocità Prestazioni elevate in condizioni di scarsa illuminazione grazie a Wide Dynamic Range Risoluzioni Full HD 1920 x 1080p fino a 60 fps Uscita dual stream H.265 / H.264 adattata a diversi ambienti di rete Controllo Pan e Tilt Zoom ottico 20x Ampia applicazione Funzione sleep a basso consumo PoE - - - - - - - - - - Full HD PTZ camera (up to 60 fps) with PoE power supply, 20x optical zoom (10x digital) and HDMI / 3G-SDI / LAN + NDI interfaces for Video over IP. It is equipped with an advanced ISP image processor and a 2.07 Mpixel image sensor. The focus is automatic or manual. It has the WDR (Wide Dynamic Range) function and 2D / 3D dynamic noise reduction (DNR) up to 60 fps. RGB20X-PNDI-TLY is also equipped with the exclusive Tally light indicator, integrated directly into the housing for a 360° view. Main features High speed optical zoom High performance in low light scenarios thanks to Wide Dynamic Range Full 1920 x 1080p HD resolutions up to 60 fps H.265 / H.264 dual stream output adapted to different network environments Pan and Tilt control 20x optical zoom Wide application Low-power sleep function PoE - - - - - - - - - -

Technical characteristics

Interface

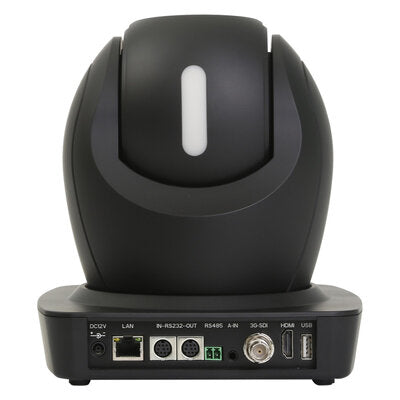

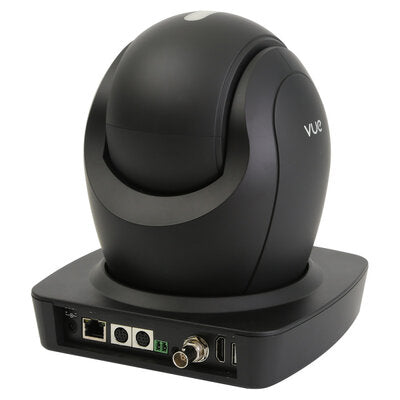

Output	3G SDI: 1 x BNC  HDMI: 1 x HDMI-A  LAN: 1 x RJ45  USB: USB2-A (UVC)
Audio	1 x 3.5 mm stereo jack
Control	RS232 IN/OUT: 2 x DIN8  RS485: 1 x 4 pin terminal
Power	1 x 12 VDC jack, 1.5 A
Performance
Camera	20x  Optical Zoom: f＝5.2 - 148.4 mm  View angle: 2.14° - 58.1°  AV: F1.3 - F4.8  Digital zoom: 10x  Min. illumination: 0.5 Lux (F1.8, AGC ON)  DNR: 2D & 3D DNR  White balance: auto / manual / one push / 3000 K / 3500 K / 4000 K / 4500 K / 5000 K / 5500 K / 6000 K / 6500 K / 7000 K  Focus: auto / manual  Aperture / electronic shutter: auto / manual  BLC: ON/OFF  WDR: OFF / dynamic level adjustment  Video: adjustment brightness / color / saturation / contrast / sharpness / B/W mode / Gamma curve  SNR: > 55 dB  Effective pixels: 2.07 Mpixel, 16:9
Pan and Tilt parameters	Pan / Tilt movement: -170° to +170°/s; -30° to +90°/s  Pan / Tilt control speed: 0.1 to 60°/s；0.1 to 30°/s  Preset speed / quantity: Pan: 60°/s, Tilt: 30°/s; up to 255 preset positions (10 remote control)  360° Tally: full 360° view of Tally
Audio compression format	AAC | MP3 | G.711A
Video compression format	H.264 | H.265 | dual streaming output
Output resolutions	720p 50 / 59.94 / 60 | 1080p 25 / 29.97 / 30 / 50 / 59.94 / 60 | 1080i 50 / 59.94 / 60
Control protocol	VISCA | Pelco-D | Pelco-P
Baud rate (bps)	115200 | 9600 | 4800 | 2400 bps
Network protocol	RTSP | RTMP | ONVIF | GB/T28181 | VISCA | NDI | PoE
Environment
Temperature	-10 to 50 ℃
Humidity	20 to 80%
Physical
Dimension	180 x 188 x 198 mm
Weight	1.7 kg
