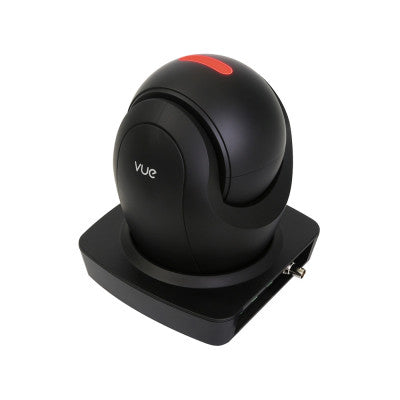

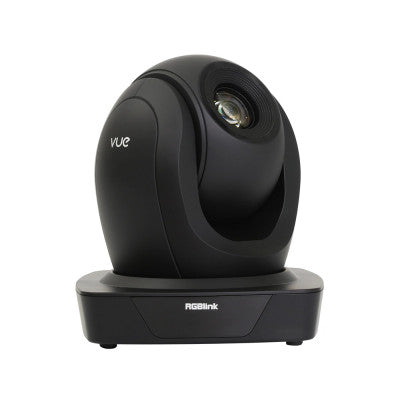

RGBlink - RGB30X-PNDI-TLY - POE&NDI PTZ camera 30x, Full HD with HDMI/3G-SDI/LAN/NDI interface

Videocamera PTZ Full HD (fino a 60 fps) con alimentazione PoE, zoom ottico 30x (digitale 10x) e interfacce HDMI/3G-SDI/LAN + NDI per Video over IP. È dotata di un avanzato processore d'immagini ISP e di un sensore d'immagine da 2,07 Mpixel. La messa a fuoco è automatica o manuale. Presente la regolazione dinamica del livello (WDR) e la riduzione dinamica del rumore 2D/3D (DNR) fino a 60 fps. RGB30X-PNDI-TLY è dotata dell'esclusivo indicatore luminoso Tally, integrato direttamente nell'alloggiamento per una visione a 360°.

• High speed optical zoom
• High performance in low light scenarios with Wide Dynamic Range
• Full 1920×1080p HD resolutions up to 60 frames per second
• H.265/H.264 dual stream output adapted to different network environments
• Pan and Tilt Control
• Optional interface
• 30X optical zoom
• Wide application
• Low-power sleep function
• LAN support POE

Interface

Output	3G SDI 1xBNC HDMI 1 x HDMI-A LAN 1xRJ45 USB USB2-A (UVC)
Audio	1x3.5 mm Stereo Jack
Control	RS232 IN/OUT 2xDIN8 RS485 1x4pin Terminal
Power	1xDC12 V Jack  1.5A

Performance

Camera	30X Optical Zoom: f＝5.05～91.50 mm View Angle: 3.45°～ 60.04° AV: F1.8 ～ F2.9 Digital Zoom: X10 Minimum Illumination: 0.5Lux (F1.8, AGC ON) DNR: 2D & 3D DNR White Balance: Auto/Manual/One Push/3000 K/3500 K/4000 K/4500 K/5000 K/5500 K/6000 K/6500 K/7000 K Focus: Auto/Manual Aperture/Electronic Shutter: Auto/Manual BLC: ON/OFF WDR: OFF/Dynamic Level Adjustment Video: Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve SNR: >55dB Effective Pixels: 2.07m,16:9
Pan-and-Tilt Parameter	Pan/Tilt Movement: -170°～+170°/'-30°～+90° Pan/Tilt Control Speed: 0.1～60°/S；0.1～30°/S Preset Speed/Quantity: Pan:60°/S, Tilt:30°/S; Up to 255 preset positions (10 remote control) 360° TALLY: full 360° view of TALLY
Audio Compression Format	AAC  |  MP3  |  G.711A
Video Compression Format	H.264  |  H.265  |  Dual Streaming Output
Output Resolutions	720p50/59.94/60  |  1080p25/29.97/30/50/59.94/60  |  1080i50/59.94/60
Control Protocol	VISCA  |  Pelco-D  |  Pelco-P
Baud Rate (bps)	115200  |  9600  |  4800  |  2400bps
Network Protocol	RTSP  |  RTMP  |  ONVIF  |  GB/T28181  |  VISCA | NDI | PoE

Environment

Temperature	-10℃～50℃
Humidity	20%～80%

Physical

Weight	Net:1.7Kg
Dimension	Net: 180mm(front)×188mm(side)×198mm(height)



English description : Full HD (up to 60 fps) PTZ camera with PoE power supply, 30x optical zoom (10x digital) and HDMI/3G-SDI/LAN interfaces + NDI for Video over IP. It is equipped with an advanced ISP image processor and a 2.07 Mpixel image sensor. Manual or autofocus. Dynamic level adjustment (WDR) and dynamic noise reduction 2D / 3D (DNR) up to 60 fps are present. RGB30X-PNDI-TLY is equipped with the exclusive Tally light indicator, integrated directly into the housing for a 360° view.
