Descrizione

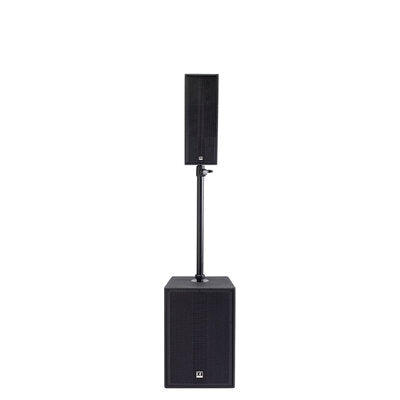

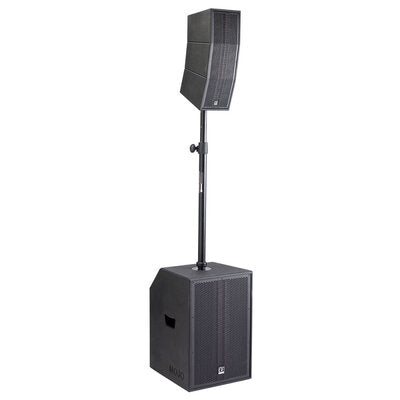

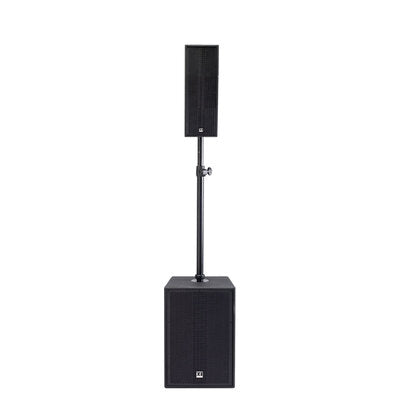

Diffusore PA ad alta efficienza, costituito da una colonna e un subwoofer attivo. Questo nuovo sistema utilizza un'architettura di tipo array curvo che fornisce una diffusione controllata e ottimizzata per una pressione sonora di 128 dB SPL.
Con un totale di 12 altoparlanti (3 driver al neodimio da 5" e 9 tweeter da 1"), il satellite è stato appositamente progettato per ottenere una dispersione effettiva di 100° in orizzontale e 70° in verticale.

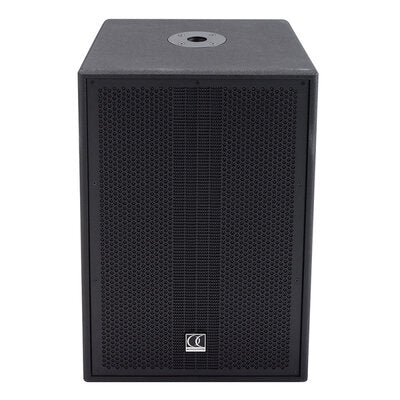

I bassi sono forniti da un potente woofer a lunga escursione da 12" montato in bass-reflex. Il cabinet ospita un'amplificatore in Classe-D da 500 WRMS dotato di tutte le protezioni, un mixer a 4 ingressi con Bluetooth TWS e un potente DSP che offre la possibilità di regolare il suono secondo i propri desideri.

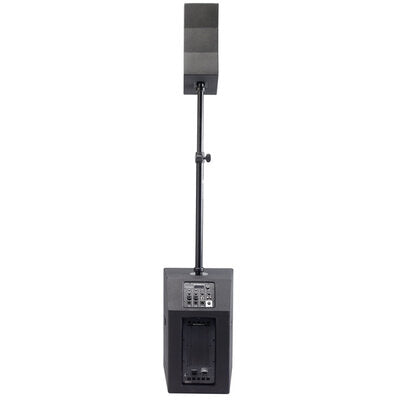

Il collegamento fra il subwoofer e l'array avviene grazie ad una barra di accoppiamento pneumatica che consente una regolazione in altezza senza sforzo e garantisce anche il collegamento elettrico tra l'amplificatore e il satellite.
- - - - - - - - - - High efficiency PA speaker, consisting of a column and an active subwoofer. This new system uses a curved array architecture that provides controlled and optimized diffusion for a sound pressure of 128 dBSPL.
With a total of 12 speakers (3 x 5" neodymium drivers and 9 x 1" tweeters), the satellite has been specially designed to achieve an effective dispersion of 100° horizontally and 70° vertically.
The bass is provided by a powerful 12" long excursion woofer mounted in bass-reflex. The cabinet houses a 500 WRMS Class-D amplifier equipped with all protections, a 4-input mixer with Bluetooth TWS and a powerful DSP that offers the possibility to adjust the sound according to your wishes.
The connection between the subwoofer and the array is made thanks to a pneumatic coupling bar which allows for effortless height adjustment and also ensures the electrical connection between the amplifier and the satellite.
- - - - - - - - - -
Technical characteristics
Column
- Power: 300 WRMS - 600 W max.
- Nominal impedance: 6 ohm
- Mid-woofer: 3 x 5" neodymium
- Tweeter: 9 x 1"
- Dispersion (H x V): 120° x 70°
- Connector: insert into housing
- Dimensions: 188 x 517 x 243 mm
- Net weight: 8 kg
Subwoofer
- Power: 500 WRMS - 1000 W max.
- Nominal impedance: 4 ohms
- Woofer: 1 x 12"
- Dimensions: 366 x 625 x 541 mm
- Net weight: 27 kg
Complete system
- Frequency response: 38 - 18,000 Hz
- SPL max. (@ 1 m): 128 dB
Amplifier module
- Low section: 1 x 700 WRMS / 1400 W max. at 6 ohm
- Mid/high section: 1 x 300 WRMS / 600 W max. at 4 ohm

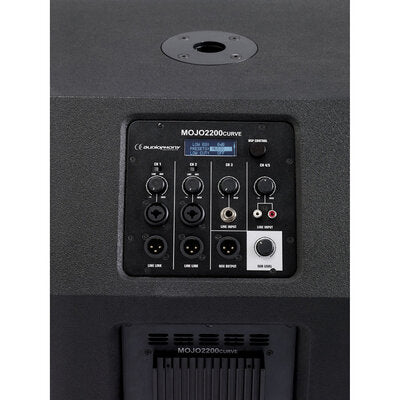

Inputs
- CH1: 1 x XLR / line jack / microphone Combo
- CH2: 1 x XLR / line MIC / jack Combo
- CH3: 1 x line jack
- CH4/5: 1 x RCA L/R line + Bluetooth input
Input impedances
- Micro 1 & 2: balanced 40 kohm
- Line 1 & 2: balanced 10 kohm
- Line 3: balanced 20 kohm
- Line 4 & 5: unbalanced 5 kohm
Outputs
- 1 insert on the top of the housing for the stellite
- 1 x balanced XLR MIX OUT for output to another system
- 2 x XLR LINE OUT balanced for the CH1 and 2
DSP
- 24 bit (1 in 2 out)
- EQ / presets / low cut / delay / Bluetooth TWS
- Adjustment of levels on each channel + Master
- Adjusting the level of the cabinet
