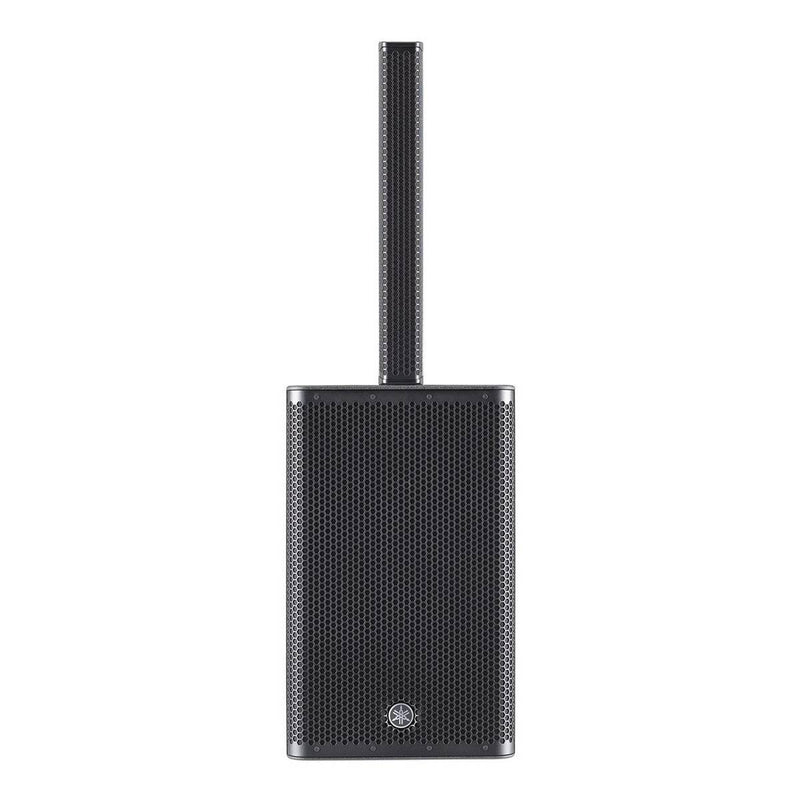

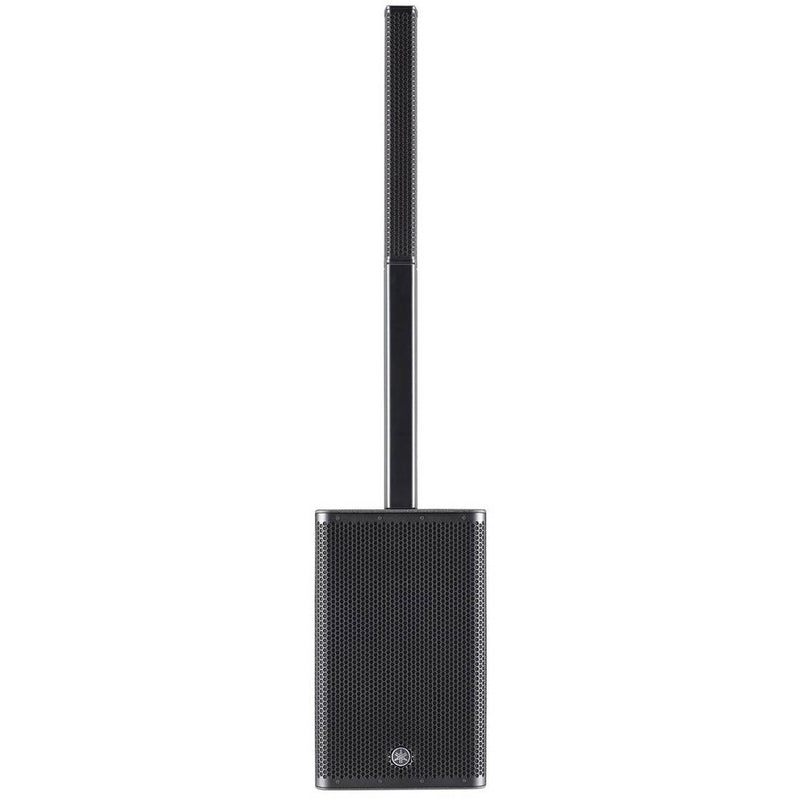

Yamaha STAGEPAS 1K - Standard

1,000 watt mobile sound system with five-channel digital mixer, 12-inch subwoofer, 10 x 1.5-inch line array speakers, Bluetooth input, SPX digital reverbs, 1 knob EQ and multiband compressor for the master output.

Features Yamaha STAGEPAS 1K

• 1,000 W Power (HF: 190 W + LF: 810 W)
• 12-inch bass subwoofer (largest in its class)
• Narrow 10 x 1.5" line array speaker for high frequencies
• Digital mixer (3 mono mic/line inputs + 1 stereo line input)
• Multiband compressor "Mode" for master output
• 1-knob EQ per channel
• High-resolution SPX digital reverbs (4 types, adjustable parameters)
• 2 Hi-Z high impedance inputs
• Link-Out and Monitor-Out
• Special protective cover included in delivery
• Optional footswitch for Reverb
• Optional dolly for more comfortable transport

Technical data

• System type: Powerful subwoofer with one line array speaker
• Frequency range (-10 dB): 37 Hz - 20 kHz
• Beam angle (horizontal x vertical): 170° x 30°.
• Crossover frequency: 240 Hz
• Maximum output level (measured peak, IEC noise at 1m): 119 dB SPL
• Power consumption: 110-120V 60Hz, 220-240V 50/60Hz
• Power consumption: 25W (idle), 85W (1/8 power)
• Dimensions (W x H x D) System (maximum): 334 x 2,000 x 415 mm
• Weight: 23,0 kg
• Number of mixing channels: 5
• Analog inputs: Mono Mic/Line x 3, Mono Line x 2, Stereo Line x 1, LINK IN (MONO)
• Bluetooth Audio Inputs: A2DP (SBC, AAC)
• Content protection method: SCMS-T
• Bluetooth Version: Ver 5.0
• Transmission frequencies: 2.402 - 2.480 MHz
• Wireless output class: 1
• Maximum wireless output power (EIRP): 15 dBm (32 mW)
• Channel functions: Hi-Z switch: CH2/3
• EQ/Effects:
• 1 control EQ: CH1/2/3, L/MONO, R, ST LINE
• Modes: Speech/Music/Club
• Reverb guys: Hall/Dish/Room/Echo on CH1/2/3/3
• Outputs: Link out (mono/r), Monitor out (mono)
• External control: Reverb footswitch, STAGEPAS Editor (iOS/Android App)
• Rated Power: Dynamic 1000W (Subwoofer: 810W, Line Array Speaker: 190W)
• Cabinet:
• Line Array Speakers: Enclosed
• Subwoofer: Bass Reflex Type
• Speaker unit:
• Line array speaker: 3.8 cm (1.5") cone à— 10
• Subwoofer: 12" subwoofer (30 cm) cone
• Dimensions (W x H x D):
• Line array speakers: 67 x 562 x 86 mm
• Spacers (each): 67 x 555 x 86 mm
• Subwoofer: 334 x 550 x 418 mm
• Weight:
• Line array speaker: 1.8 kg
• Spacer (each): 0.6 kg
• Subwoofer: 20.0 kg
• Accessories: Included in delivery: Mains cable x 1, Special cover x 1, Operating instructions
• Optional accessories are available separately: DL-SP1K (special Dolly)
