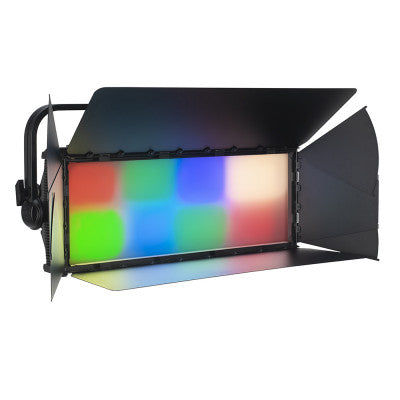

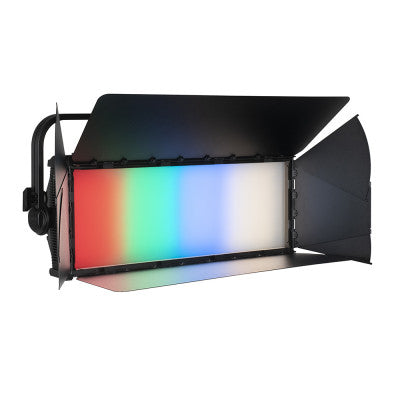

Elation Professional - KL Panel XL - Full-color-spectrum LED soft light

Pannello softlight a LED full spectrum di grande potenza, fino a 44.000 lumen al servizio di un ampio range di tinte e gradazioni efficaci. Dotato di un array di 6 LED differenti (rosso, verde, blu, bianco, lime e ciano) per un totale di 544 W, il KL Panel XL è in grado di generare colori vividi e precisi, oltre a bianchi regolabili da 2000 K a 10.000 K. Questa caratteristica lo rende ideale per contesti televisivi e cinematografici, per i quali è ottimizzato, ma in generale per ogni situazione che richiede prestazioni di altissimo livello, come dimostrano anche gli ottimi indici fotometrici. L’ampiezza del fascio di 100° produce una copertura luminosa intensa e uniforme. Il controllo della sezione 4 x 2 opzionale fornisce ulteriori capacità creative per effetti colore e impatto visivo. Alla potenza, il KL Panel XL accompagna una notevole praticità: compatto, portatile, completo e senza necessità di alimentatore esterno, può essere montato su stativi o sospeso utilizzando il perno in dotazione o altri supporti standard. Molteplici le modalità di controllo, per un’adattabilità e un funzionamento ottimali: tramite DMX, ma anche Art-NET, sACN o wireless con il sistema E-FLY di Elation. Inoltre, sul retro si trovano tre encoder e un display OLED, per regolare in maniera diretta e veloce intensità, colore e altri parametri. Dispone di connessioni di ingresso e uscita DMX con connettori XLR a 3 e 5 poli (compatibili con il protocollo RDM), connettori EtherCON, connessioni di alimentazione in ingresso e uscita con connettore PowerCON TRUE1 e un connettore XLR a 4 poli per poterlo alimentare con batterie esterne da 24-36 V DC. Infine, il KL Panel viene fornito con diffusore, bandiere a 8 elementi per sagomare al meglio la luce e un Junior Pin. Inoltre, sono disponibili come accessori opzionali snap bag e snap grid, staffa per i puntamenti tramite palo e una lente in grado d’intensificare il centro del fascio, rendendolo più stretto.

• 544W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
• CRI 95, CCT Adjustment from 2,000 to 10,000K
• 44,000 Total Lumen Fixture Output
• 4x2 Section control option
• Internal Power Supply with Power Pass-Through
• 24-36 VDC Battery Operation (Battery not included)
• DMX/RDM, Art-Net and sACN Protocol Support
• E-FLY™ Internal Extended Range Wireless DMX Transceiver
• Stand-Alone Control with 3 Encoders and OLED Display
• Barn Doors, Diffuser, and Junior Pin (28mm - 1 ⅛") included

SOURCE

• 6-in-1 (Red, Green, Blue, White, Lime, Cyan) Full Spectrum LED Array
• 50,000 Hour Average LED Life*
• *Test lab conditions. May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

 PHOTOMETRIC DATA

• up to 44,000 Total Lumen Output

Diffuser

• Beam Angle 101°
• Field Angle 159.4°

Without Diffuser

• Beam Angle 111°
• Field Angle 155.4°

 EFFECTS

• Variable CCT 2,000K - 10,000K
• Green-Shift Adjustment
• 4x2 Section Control
• Virtual Gel Library
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• Remote Adjustable LED Refresh Rate Frequency (900-25kHZ)

CONTROL / CONNECTIONS

• 12 DMX Channel Modes (1-96 Ch.)
• 1 or 8 cell control sections
• 3 Manual Adjustment Encoders
• 4 Button Control Panel and OLED Menu Display
• DMX, RDM, Art-NET, sACN Protocol Support
• E-FLY™ Internal Extended Range Wireless DMX Transceiver
• Locking 5pin XLR Connector In/Out
• Locking 3pin XLR Connector In/Out
• Locking IP65 Power Connector In/Out
• USB Connection (Firmware Updates, External 5V power for accessories)
• 4pin XLR External Battery Connection (battery not included)

SIZE / WEIGHT

• Length: 763.8mm (30.1")
• Width: 155mm (6.1")
• Height: 306mm (12.05")
• Height (with yoke): 426.8mm (16.8")
• Weight: 17.2 kg (37.9 lbs.)
• Weight: (Junior Pin) 0.46 kg (1.02 lbs.)

English description : High power full spectrum LED softlight panel, up to 44,000 lumens serving a wide range of effective colors and gradations. Equipped with an array of 6 different LEDs (red, green, blue, white, lime and cyan) for a total of 544 W, the KL Panel XL is capable of generating vivid and accurate colors, as well as adjustable whites from 2000 to 10,000 K. This feature makes it ideal for television and cinema contexts, for which it is optimized, but in general for any situation that requires top-level performance, as demonstrated by the excellent photometric indexes. The 100° beam width produces an intense and uniform light coverage. Optional 4 x 2 section control provides additional creative capabilities for color effects and visual impact. To the power, the KL Panel XL accompanies considerable practicality: compact, portable, complete and without the need for an external power supply, it can be mounted on stands or suspended using the supplied pin or other standard supports. Multiple control modes for optimal adaptability and operation: via DMX, but also Art-NET, sACN or wireless with the Elation E-FLY system. In addition, on the back there are three encoders and an OLED display, to directly and quickly adjust intensity, color and other parameters. It has DMX input and output connections with 3 and 5-pole XLR connectors (compatible with the RDM protocol), EtherCON connectors, input and output power connections with PowerCON TRUE1 connector and a 4-pole XLR connector to be able to power it with batteries external 24-36 V DC. Finally, the KL Panel comes with diffuser, 8-element barndoor to best shape the light and a Junior Pin. In addition, snap bags and snap grids are available as optional accessories, a bracket for aiming by pole and a lens capable of intensifying the center of the beam, making it narrower.
