Descrizione
HDMI 2.0b Video Inputs 4
HDMI Audio Inputs 8 Channels embedded in SD/HD/UHD/4K.
Computer Interface PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10?bit 4:2:2.
Software Included Media Express, Disk Speed Test, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation PCI Express 8 lane generation 3, compatible with 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
Video Standards:
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
Digital Video Interface (DVI) Standards: 640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60
Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
HDMI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 and 4:2:0 in all modes. 8?bit RGB 4:4:4 in all DVI modes.
Color Space: REC 601, REC 709, REC 2020
HDMI Video Sampling: 4:4:4, 4:2:2 and 4:2:0
HDMI Configuration: HDMI 2.0b supports Deep Color and HDR. Automatically configures to connected display.
Multiple Rate Support: HDMI inputs are switchable between SD, HD, Ultra HD, 4K DCI and DVI modes.
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

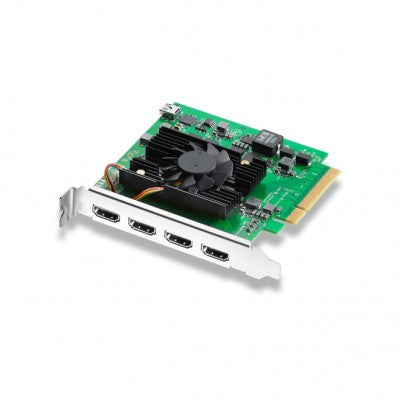

English description : High performance and flexibility with the DeckLink Quad HDMI Recorder capture card. Featuring 4 independent HDMI 2.0b input connections, this PCIe card allows you to capture from 4 different HDMI sources at the same time, in any combination of SD, HD, Ultra HD, 4K and even computer formats. The perfect product for software live switching, real time computer game capture, streaming and more.Payment & Security
