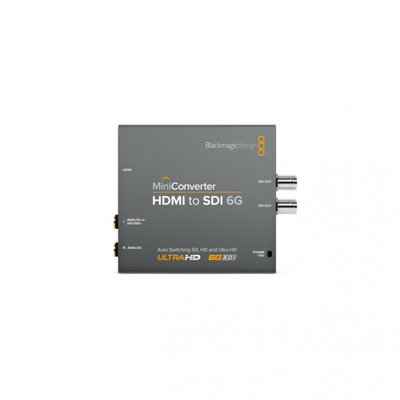

Descrizione (IT): Convertitore di segnali video da HDMI a SDI in risoluzione SD HD e Ultra HD. È dotato di connessioni audio indipendenti per consentire l'incorporazione dell'audio SDI da HDMI AES/EBU o ingressi audio analogici bilanciati. E' ideale per convertire telecamere consumer con interfaccia HDMI o computer in SDI di qualità broadcast. Caratteristiche principali Trasmissione SDI: 270 Mb 1.5G 3G 6G Standard video SD: 525i 59.94 NTSC 625i 50 PAL Standard video HD: 720p 50 720p 59.94 720p 60 1080p 23.98 1080p 24 1080p 25 1080p 29.97 1080p 30 1080p 50 1080p 59.94 1080p 60 1080i 50 1080i 59.94 1080i 60 Standard video 4K: 4K DCI 23.98p 4K DCI 24p 4K DCI 25p Caratteristiche: 2 uscite SDI livello A o B selezionabile
- Peso: 461 g
- Dimensioni (cm): 7 (H) × 15 (W) × 14 (L)
Video:
Description (EN)
HDMI to SDI video signal converter in SD HD and Ultra HD resolutions. It features independent audio connections to allow the incorporation of SDI audio from HDMI AES/EBU or balanced analog audio inputs. It is ideal for converting consumer cameras with HDMI interface or computers to SDI broadcast quality. Main features SDI transmission: 270 Mb 1.5G 3G 6G SD video standard: 525i 59.94 NTSC 625i 50 PAL HD video standards: 720p 50 720p 59.94 720p 60 1080p 23.98 1080p 24 1080p 25 1080p 29.97 1080p 30 1080p 50 1080p 59.94 1080p 60 1080i 50 1080i 59.94 1080i 60 4K video standards: 4K DCI 23.98p 4K DCI 24p 4K DCI 25p Features: 2 SDI outputs level A or B selectable
Specifiche Tecniche
Technical characteristics
Connections
- SDI video outputs: 2 x SDI video outputs. Automatically matches the SD HD and 6G-SDI HDMI video input.
- HDMI video inputs: HDMI type A
- Analog audio inputs: 2 channels of professional balanced analog audio with standard 1/4" jack connections
- Digital audio inputs: 4 channels of AES/EBU digital audio
- Multi rate support: auto detection of SD HD or 6G-SDI
- Updates and configuration: USB
- Reclocking: yes
Standards
- SDI video standards: 525i 59.94 NTSC 625i 50 PAL
- HD video standards: 720p 50 720p 59.94 720p 60 1080p 23.98 1080p 24 1080p 25 1080p 29.97 1080p 30 1080p 47.95 1080p 48 1080p 50 1080p 59.94 1080p 60 1080PsF 25 1080PsF 29.97 1080PsF 30 1080i 50 1080i 59.94 1080i 60
- Ultra HD video standards: 2160p 23.98 2160p 24 2160p 25 2160p 29.97 2160p 30
- 4K video standards: 4K DCI 23.98p 4K DCI 24p 4K DCI 25p
- SDI compliance: SMPTE 259M SMPTE 292M SMPTE 296M SMPTE 372M SMPTE 424M SMPTE 425M SMPTE ST‑2081 ITU‑R BT.656 and ITU‑R BT.601
- SDI video rates: SDI video inputs are automatically detected between standard definition high definition 3G‑SDI and 6G-SDI. HDMI to SDI 6G supports level B only on 3G-SDI output
- SDI video sampling: 4:2:2
- SDI audio sampling: television standard sample rate of 48 kHz and 24 bit
- SDI color precision: 4:2:2
- SDI color space: YUV
- SDI auto switching: automatically detects SD HD or 6G‑SDI
- HDMI video standards: 625i 50 PAL 525i 29.97 NTSC 720p 50 720p 59.94 720p 60 1080p 23.98 1080p 24 1080p 25 1080p 29.97 1080p 30 1080p 50 1080p 59.94 1080p 60 1080i 50 1080i 59.94 1080i 60 2160p 23.98 2160p 24 2160p 25 2160p 29.97 2160p 30
- HDMI color space: YUV and RGB
- HDMI color precision: 4:2:2 and 4:4:4
- Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format conversion
- HD down conversion
Settings control
- Mini switches or USB software
Operating systems
- Mac 10.15 Catalina Mac 11.1 Big Sur or later Windows 10 64-bit
Software
- Internal software upgrade via USB
Power requirements
- Power supply: +12 VDC universal power supply included with international socket adapters for most countries. Cable tie point.
- Power consumption: 4.44 W
- Operational voltage range: 12 ‑ 18 VDC
Environmental specifications
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 45 °C
- Relative humidity: 0 to 90% non-condensing
Physical specifications

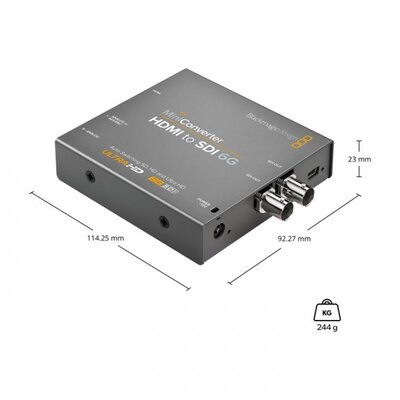

- Dimensions: 114.25 x 92.27 x 23 mm
- Weight: 244 g
