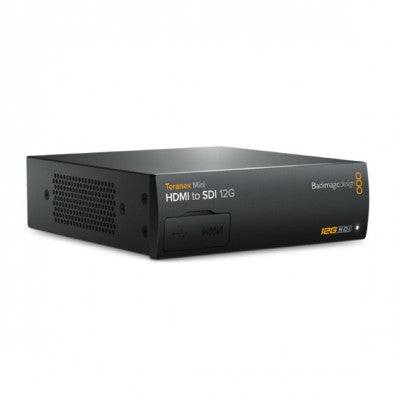

Teranex Mini HDMI to SDI 12G di Blackmagic Design permette di convertire da HDMI a 12G-SDI. Tutti i formati video sono supportati, anche i formati SD, HD, 6G e 12G-SDI. Puoi anche convertire da HD a Ultra HD con il up-converter incluso. Il Teranex Mini permette l'incorporazione dell'audio da formati analogici bilanciati o AES/EBU e l'ingresso Time Code. La soluzione perfetta per convertire telecamere consumer HDMI in SDI, o per aggiungere uscite SDI a computer con connessioni HDMI.
Trasmissione SDI: 270Mb, 1.5G, 3G, 6G, 12G.
Standard Video SD: 525i59.94 NTSC, 625i50 PAL.
Standard video HD: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60.
Standard video Ultra HD: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60.
Standard video 4K: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
Caratteristiche: converte 12G in HD per monitorare in Ultra HD su schermi HD.
- - - - - - - - - - Teranex Mini HDMI to SDI 12G by Blackmagic Design allows you to convert from HDMI to 12G-SDI. All video formats are supported, also SD, HD, 6G and 12G-SDI rates. You can also convert HD to Ultra HD with the included up converter. Teranex Mini enables audio embedding from balanced analog or AES/EBU formats and Time Code input. The perfect solution to convert HDMI consumer cameras to SDI, or to add SDI outputs to computers with HDMI connections.
SDI transmission: 270Mb, 1.5G, 3G, 6G, 12G.
SD Video Standard: 525i59.94 NTSC, 625i50 PAL.
HD Video Standard: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60.
Ultra HD video standard: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60.
4K video standard: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
Features: Converts 12G to HD for Ultra HD monitoring on HD screens.
- - - - - - - - - -

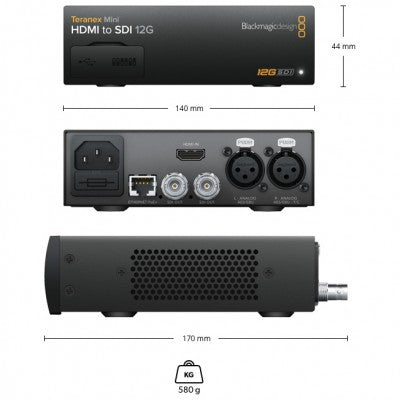

Connections
SDI Video Outputs 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input.
HDMI Video Inputs 1 x HDMI 2.0 type A.
Digital Audio Inputs 2 channels professional balanced analog audio via XLR connectors. Right XLR can be con gured for Time Code input.
Digital Audio Outputs 4 channels professional 110?balanced digital audio via XLR connectors. Right XLR can be con gured for Time Code input.
Embedded Audio Support 16 channels.
Multi Rate Support Automatic switching between SD/HD/ 2K and 4K.
Updates and Configuration USB or Ethernet.
Reclocking Yes
