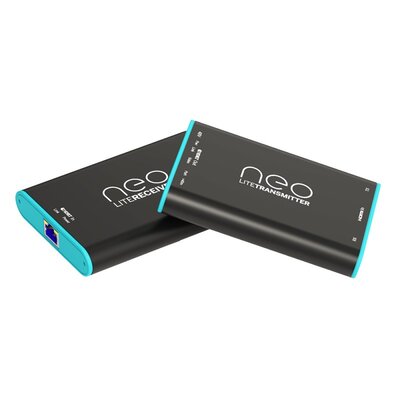

Pulse-Eight - neo:Lite HDMI Extender Set - HDMI extender set, transmitter + receiver, 4K up to 40 m and 1080p to 70 m over Cat5e/6/7, HDR with BT .709 colourspace, full HDMI audio support, PoH and bi-directional IR signals

neo:Lite HDMI Extender Set è un dispositivo appartenente al catalogo Pulse-Eight in grado di estendere le trasmissioni digitali AV fino a un massimo di 70 m in formato 1080p e 40 m per la risoluzione 4K. Grazie alla tecnologia HDBaseT, questo prodotto rappresenta una soluzione semplice ed affidabile sia per installatori AV professionisti, sia per gli appassionati di home Theater che possono così rilanciare contenuti su lunghe distanze senza compromettere la qualità audio e video. La trasmissione è completamente conforme al formato HDCP e il contenuto video sorgente può essere archiviato in un rack dedicato lontano dalla posizione di visualizzazione. Il controllo remoto è fornito tramite il supporto integrato per la trasmissione HDMI-CEC e segnale a infrarossi. Caratteristiche principali Estende un segnale 4K fino a 40 m e 1080p fino a 70 m su CAT5e/6/7 Trasmissione UltraHD 4K, 1080p a 60 Hz / 36 bit, 720p, formati VGA-WUXGA Trasmissione infrarossa bidirezionale Supporto audio HDMI completo Conforme HDCP Bassa potenza Ricevitore PoH Montabile a parete 3 anni di garanzia - - - - - - - - - - neo:Lite HDMI Extender Set is a device belonging to the Pulse-Eight catalog capable of extending digital AV transmissions up to a maximum of 70 m in 1080p format and 40 m for 4K resolution.Thanks to HDBaseT technology, this product represents a simple and reliable solution for both professional AV installers and home theater enthusiasts who can thus relaunch content over long distances without compromising audio and video quality. The broadcast is fully HDCP compliant and the source video content can be stored in a dedicated rack away from the viewing location. Remote control is provided via built-in support for HDMI-CEC and infrared signal transmission. Main features Extend 4K up to 40 m and 1080p to 70 m over CAT5e/6/7 UltraHD 4K transmission, 1080p @ 60Hz / 36-bit, 720p, VGA-WUXGA formats Bi-directional infra-red transmission Full HDMI audio support HDCP compliant Low power PoH Receiver Wall mountable 3-years warranty - - - - - - - - - -

Technical characteristics

• Input type(s): transmitter HDMI, receiver HDBaseT
• Output type(s): transmitter HDBaseT, receiver HDMI

Connectivity

• HDMI inputs: 1 (transmitter)
• Video input zones: 1 × HDBaseT Class B (Lite)
• Video output zones: 1 × HDBaseT Class B (Lite)
• HDBaseT outputs: 1 x HDBaseT Class B (transmitter)
• HDMI outputs: 1 (receiver)
• HDCP 1.4, HDCP 2.2
• Power inlet: 1 x 48 V_DC @ 0.5 A (transmitter only)

Special Features

• Ethernet pass-through: no
• DSC (Display Stream Compression): no
• ARC (Audio Return Channel): no
• POH (Power Over Hdbaset): yes

Control

• HDMI-CEC: yes
• IR control: bi-directional

Picture (processing)

• Max. pixel clock: 300 MHz
• Max. bandwidth: 10.2 Gbps
• Supported video formats: 720p, 1080i, 1080p (+3D), 4k (30 Hz) 4:4:4, 4K (50/60 Hz) 4:2:0
• Max. video resolution: 4K/60 Hz 4:2:0

Regulatory

• Power consumption: transmitter 3 W, receiver 5.5 W
• Operating temperature: 0 ~ +35 °C
• Storage temperature: -20 ~ 60 °C
• Safety & emission: UKCA, CE, FCC, RoHS

Dimensions and weight

• Dimensions: 110 x 18 x 82 mm
• Weight: 0.17 kg

What's in the box

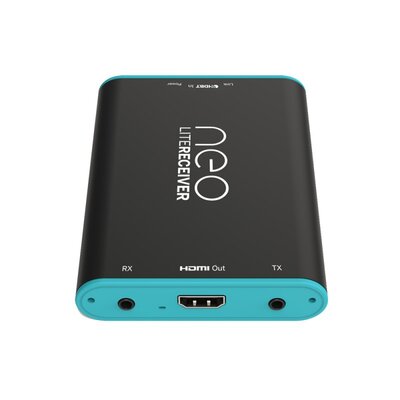

• neo:Lite PoH receiver

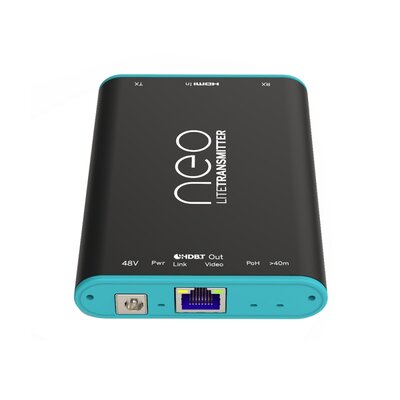

• neo:Lite transmitter
• IR blaster cable pack (TX/RX pack)
• Power supply
• Installation guide
