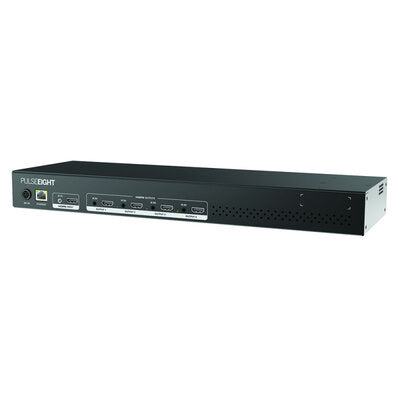

Pulse-Eight - HDMI2-SP4 - HDMI 1 x 4 splitter, HDCP 2.2 and 18 Gbps support

HDMI2-SP4 permette di distribuire segnali video HDMI 2.0a e/o HDMI 2.0b Ultra HD 4K, 4:4:4 (18 Gbps) ad alta velocità verso 4 uscite contemporaneamente.  Con una sorgente HDMI, puoi distribuire facilmente il segnale su quattro uscite HDMI simultanee e, con il nostro esclusivo portale di monitoraggio cloud, puoi controllare la tua installazione in qualsiasi momento e da qualsiasi luogo, consentendoti di diagnosticare problemi semplici senza visitare il sito. Lo splitter supporta anche più metodi di controllo tra cui controllo IR, supporto CEC, interfaccia Web e controllo vocale tramite Amazon Alexa. Caratteristiche principali Compatibile con HDMI 2.0, HDMI 2.0a, HDMI 2.0b HDR (alta gamma dinamica) Conforme a HDCP 2.3 e 2.2 Ritorna il controllo IR Controllo CEC Conformità HDCP precedente Supporta velocità di trasmissione di 18 Gbps, consentendo risoluzioni video 4K a 60 Hz 4:4:4 Supporta 570p, 720p 1080i, 1080p, Ultra HD, 3D Gestione EDID automatica Interfaccia Web reattiva Monitoraggio remoto Garanzia di 3 anni Costruito in Gran Bretagna - - - - - - - - - - HDMI2-SP4 allows you to distribute HDMI 2.0a and/or HDMI 2.0b Ultra HD 4K, 4:4:4 (18 Gbps) video signals at high speed to 4 outputs simultaneously. With one HDMI source, you can easily distribute the signal to four simultaneous HDMI outputs and, with our exclusive Cloud Monitoring Portal, you can check up on your install at any time from any where, enabling you to diagnose simple issues without visiting the site. The splitter also supports multiple control methods including IR control, CEC support, Web Interface, plus voice control using Amazon Alexa. Main features HDMI 2.0, HDMI 2.0a, HDMI 2.0b compliant HDR (High Dynamic Range) HDCP 2.3 & 2.2 compliant Return IR control CEC control Legacy HDCP compliant Supports 18G bps transmission speeds, allowing 4K @ 60 Hz 4:4:4 video resolutions Supports 570p, 720p 1080i, 1080p, Ultra HD, 3D Automatic EDID management Responsive Web interface Remote monitoring 3-year Warranty Built in Britain - - - - - - - - - -

Technical characteristics

Picture (processing)

• Max. pixel clock: 600 MHz
• Max. bandwidth: 18 Gbps
• Supported video formats: UHD 4K @ 60Hz 4:4:4, 4K @ 60Hz 4:2:2, 4K @ 60Hz 4:2:0, HDR10 @ 60Hz, HDR10 @ 24Hz, 720p, 1080i, 1080p
• Max. video resolution: 4K @ 60 Hz 4:4:4

Connectivity

• Input type: HDMI
• Output type(s): HDMI
• HDMI inputs: 1
• HDMI outputs: 4
• HDCP: 1.4, 2.2, 3.3

Special features

• Remote monitoring: real time remote monitoring portal

Control

• Voice control: Alexa
• IR control: return IR
• Web interface, Android App: yes

Regulatory

• Power consumption: 5 V_DC 2 A
• Operating temperature: 0 to 35 °C
• Safety & emission: UKCA, CE, FCC, RoHS

Dimensions and weight

• Dimensions: 430 x 43 x 140 mm
• Weight: 0.7 kg
