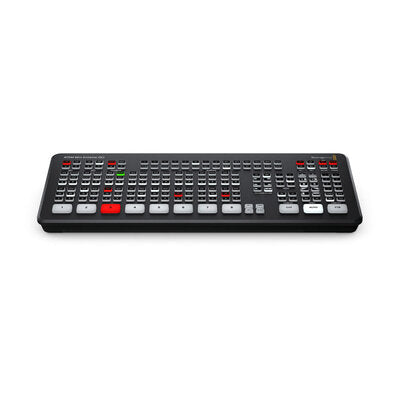

Blackmagic Design - ATEM Mini Extreme ISO - Live video switcher with 8 HDMI input, 2 HDMI output, 4 DVE and 2 USB ports incl. 9 record stream

ATEM Mini Extreme ISO è uno switcher che si configura in un attimo ed è facile da usare. Offre 8 ingressi HDMI con conversione di standard, 2 porte USB e 2 uscite HDMI, un mixer audio Fairlight con EQ e dinamica, 6 DVE per immagine nell’immagine, transizioni con effetti, 4 chiavi cromatiche, archivio di 20 fotogrammi per titoli, 2 lettori multimediali, un multiview fino a 16 riquadri, anteprima e programma (inclusi indicatori di registrazione, streaming e audio) e ATEM Software Control.  ATEM Mini Extreme ISO permette di registrare in H.264 direttamente sulle unità flash USB e di trasmettere in streaming tramite Ethernet sulle piattaforme come YouTube Live. Registra nove flussi video H.264 in tempo reale, ovvero il clean feed degli otto ingressi e il programma. Inoltre salva le produzioni come progetti DaVinci Resolve, consentendo di rivisitarle e montarle in un secondo momento. - - - - - - - - - - ATEM Mini Extreme ISO is a switcher that is quick to set up and easy to use. You get 8 standards converted HDMI inputs, 2 USB ports, 2 HDMI outputs, a Fairlight audio mixer with EQ and dynamics, 6 DVEs for picture in picture, transitions with effects, 4 chroma keys, 20 frame pool for titles, 2 media players, a 16 view multiview, preview and program view with record, streaming and audio indicators, plus ATEM Software Control. ATEM Mini Extreme ISO also includes H.264 recording direct to USB flash drives or streaming via Ethernet to services such as YouTube Live. It records 9 real time H.264 video streams, including a clean feed from all 8 inputs plus the program. You can even save your production as a DaVinci Resolve project so you can review and edit it later. - - - - - - - - - -

Technical characteristics

Connections

• Total video inputs: 8
• Total outputs: 2
• Total aux outputs: 2
• Total audio inputs: 2 x 3.5 mm stereo mini jack
• Total audio outputs: 1 x 3.5 mm stereo mini jack
• Time Code connection: none
• HDMI video inputs: 8 x HDMI type A, 10-bit HD switchable
• 2 channel embedded audio
• Video input Re-Sync: on all 8 HDMI inputs
• Frame rate and format converters: on all 8 HDMI inputs
• HDMI program outputs: 2
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection
• Computer interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

Standards

• HD video input standards: 720p 50, 720p 59.94, 720p 60. 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60. 1080i 50, 1080i 59.94, 1080i 60
• HD video output standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Video streaming standards: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
• Ultra HD video standards: none
• Video sampling: 4:2:2 YUV
• Color precision: 10-bit
• Color space: Rec 709
• HDMI input resolutions from computers: 1280 x 720p 50 Hz, 59.94 Hz and 60 Hz. 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz. 1920 x 1080i 50, 59.94 Hz and 60 Hz
• Colorspace conversion: hardware based real time

Product specifics

• Upstream keyers: 4
• Downstream keyers: 2
• Advanced chroma keyers: up to 4
• Linear / Luma keyers: up to 4
• Transition keyer: DVE only
• Total number of layers: 9
• Pattern generators: 5
• Color generators: 2
• DVE with borders and drop shadow: 2
• Interface: minimum monitor resolution of 1366 x 768

Audio

• Audio mixer: 11 input x 2 channel mixer. Selectable ON/OFF/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
• Analog input: unbalanced stereo
• Analog input delay: up to 8 frames
• Input impedance: 1.8 kohm
• Max input Level: +6 dBV
• MIC Plug In Power: available on both 3.5 mm mini-jack connections

Streaming

• Direct streaming: ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over Ethernet or a shared mobile internet connection over USB‑C

Recording

• Direct recording video and audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
• Video recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70 Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio
• Audio recording: 10 x 2 channel audio inputs recorded as separate 24‑bit 48 kHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs
• Switching: Program switching recorded as a DaVinci Resolve project .drp file
• Media format: supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Multi view monitoring

• Multi view monitoring: configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, media player, streaming status, recording status and audio meters
• Multi view video standard: HD

Media player

• Media players: 2
• Channels: fill and key for each media player
• Media pool still image capacity: 20 with fill and key
• Media pool still image format: PNG, TG A, BMP, GIF, JPEG and TIFF

Power requirements

• Power supply: 1 x external 12 V power supply
• Power usage: 36 W

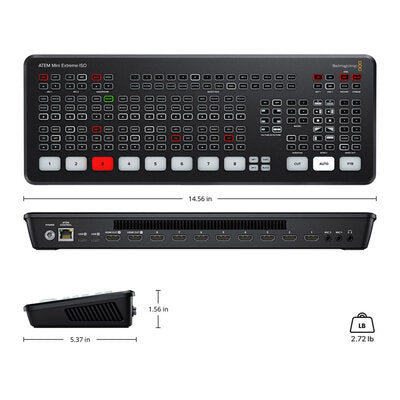

Physical specifications

• Dimensions: 370 x 39.6 x 136.6 mm
• Weight: 1.235 kg
