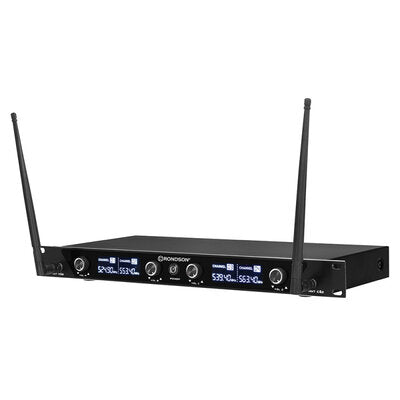

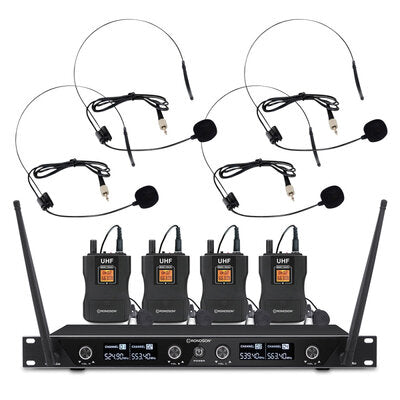

Rondson - BE-1040/4BP-1 - 506.0 / 517.5 / 531.0 / 546.5 MHz 4-channel diversity UHF set, 4 bodypack with lavalier and headworn microphones + receiver

Set di quattro bodypack UHF di qualità professionale con microfoni lavalier e ad archetto + ricevitore. Frequenze 506.0 / 517.5 / 531.0 / 546.5 MHz. Ideale per applicazioni vocali o audio professionali, discorsi, animazioni, ecc. N.B. Tutti i sistemi wireless della serie BE-1000 e BE-2000 hanno in dotazione per ogni bodypack un microfono lavalier e un microfono ad archetto. Caratteristiche principali Ricevitore UHF a 4 canali dotato di moduli riceventi a sintesi di frequenza PLL selezionabili BE-10HM: microfono lavalier compatibile con i set BE-10 e BE-20 BE-10BP: microfono ad archetto compatibile con i set BE-10 e BE-20 Sistema di ricezione automatica Sistema anti-interferenza per il funzionamento simultaneo di più unità Distanza operativa: 50 m Potenza del trasmettitore: 10 mW Visualizzazione delle funzioni su schermo LCD Fornito con: 1 cavo jack (uscita mix) e 2 cavi XLR Staffe integrate

Technical characteristics

• Four channels wireless microphone system bodypack
• BE-10HM: lavalier microphone compatible with BE-10 and BE-20 sets
• BE-10BP: headworn microphone compatible with BE-10 and BE-20 sets
• PLL synthesizer
• Easy-to-read LCD displays
• 50 m open areas range
• Modulation type: FM
• Frequency deviation: ±22 kHz
• Frequency response: 50 - 15,000 Hz
• Frequency stability: ±10 ppm
• Interference rate: > 50 dB
• S/N ratio: > 90 dB
• Sensitivity: - 80 dBuV
• Distortion: < 0.5%
• Output impedance: 600 ohm
• Audio output level: -400 mV (balanced / unbalanced)

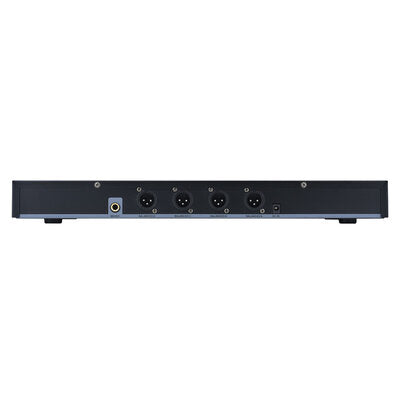

• Output connectors: 4 x XLR-3M, 1 x jack 6.3 mm
• Antenna connectors: 2 x BNC
• Receiver BE-1040: dimensions: 480 x 180 x 46 mm, weight: 3,5 kg, power supply: 110 - 240 V_AC / 12 V_DC 1000 mA, consumption: < 10 W
• Transmitters BE-1040BP: dimensions: 58 x 18 x 100 mm, RF power: 10 mW, power: 2 x 1.5 V AA

English description : Set of four professional quality UHF bodypacks with lavalier and headset microphones + receiver. 506.0 / 517.5 / 531.0 / 546.5 MHz frequencies. Ideal for professional voice or audio applications, speeches, animations, etc. N.B. All BE-1000 and BE-2000 series wireless systems are supplied with a lavalier microphone and a headworn microphone for each bodypack. Main features 4-channel UHF receiver equipped with selectable PLL synthesized receiver modules BE-10HM: lavalier microphone compatible with BE-10 and BE-20 sets BE-10BP: headworn microphone compatible with BE-10 and BE-20 sets Automatic reception system Anti-interference system for simultaneous operation of multiple units Range: 50 m Transmitter power: 10 mW Function display on LCD screen Supplied with: 1 jack cable (mix output) and 2 XLR cables Integrated brackets
