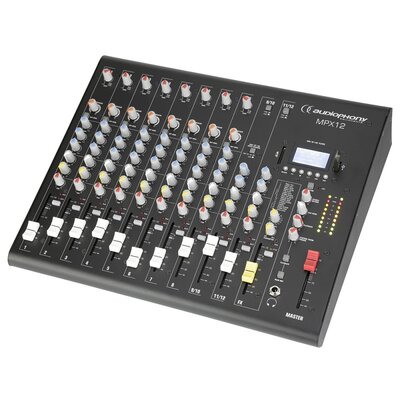

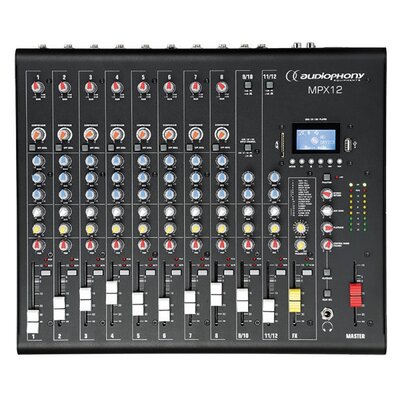

Audiophony - 12 CH analogue mixer with MIC / line inputs, compressor and effects, USB / SD / BT player

» Specifiche tecniche / Technical specs | » English description

Descrizione (IT): Mixer analogico a 12 ingressi con DSP per effetti e compressore sui canali microfonici. L'interfaccia USB / SD / BT integrata con display ne aumenta la versatilità evitando l'esigenza di periferiche aggiuntive.

• Peso: 6000 g
• Dimensioni (cm): 31 (H) × 31 (W) × 31 (L)

Description (EN)

12-input analog mixer with DSP for effects and compressor on microphone channels. The integrated USB / SD / BT interface with display increases its versatility avoiding the need for additional peripherals.

Specifiche Tecniche

Technical characteristics

Mono channels

• Microphone inputs: balanced
• Frequency response: 10 Hz - 30 kHz ±3 dB
• THD (THD & N): 0.03% @ +4 dBu 22 Hz - 20 kHz A weighted
• Compression: gain: 0 - 9 dB threshold: 20 dB 5 dB
• S/N ratio: 115 dB
• Line inputs: balanced
• Frequency response: 10 Hz - 30 kHz ±3 dB
• THD (THD & N): 0.005% @ +4 dBu 22 Hz - 20 kHz A weighted
• Maximum gain: 75 dBu MIC input Master output

Stereo channels

• Line inputs: balanced/unbalanced
• Frequency response: 10 Hz - 55 kHz ± 3 dB
• THD (THD & N): 0.005% @ +4 dBu 22 Hz - 20 kHz A weighted

Impedances

• Microphone inputs: 1.4 kohm
• Line inputs: 10 kohms
• Other inputs: 10 kohms or more
• Recording input: 1 kohm
• Other outputs: 120 ohms

Mono channels EQ

• High: ± 15 dB @ 12 kHz
• Mid: ± 15dB @ 2.5 kHz
• Low: ± 15dB @ 45 Hz

Stereo channels EQ

• High: ± 15 dB @ 12 kHz
• Low: ± 15dB @ 60 kHz

General

• Multi-effect: 24-bit analog-to-digital converter 16 programs
• Power supply: 100 - 240 V_AC 50/60 Hz
• Dimensions: 330 x 392 x 92 mm
• Weight: 5.2 kg
