PREZONE88 - Analog matrix 8 inputs 8 outputs 8 outputs

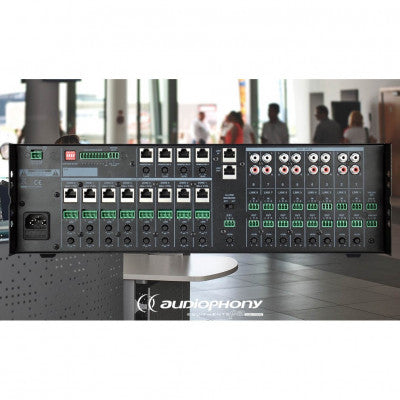

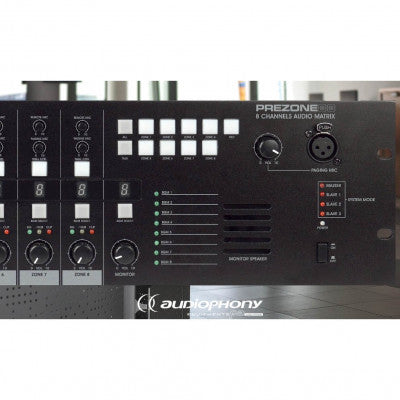

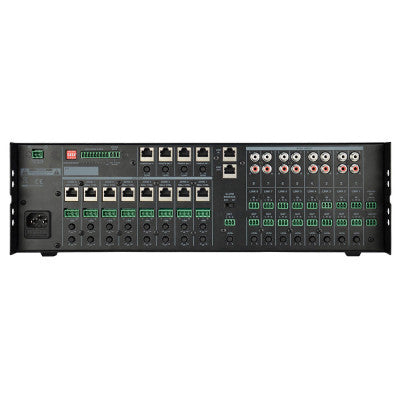

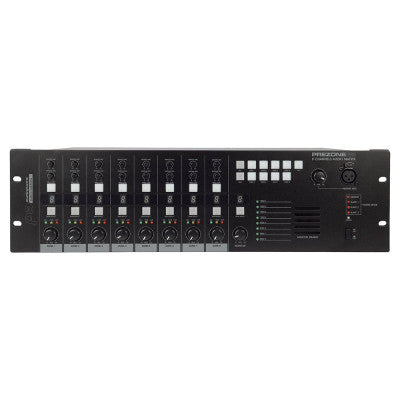

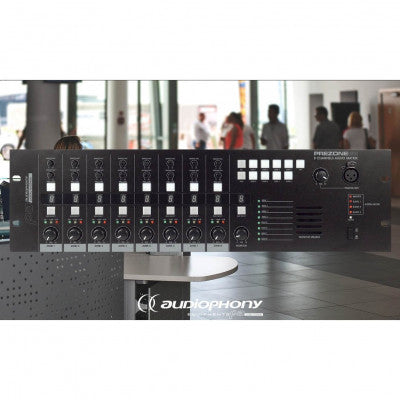

Potente matrice a 8 ingressi e 8 uscite Fornita di 4 connettori RJ45 per pannelli di controllo MIC-DESK8M e MIC-DESK16M. Sistema di registrazione di messaggi di avviso fino a 60 secondi. Il link consente l'uso di un massimo di 4 PREZONE88 in cascata.Visualizzazione del livello di uscita per zona tramiteVu meter a 3 LED. EQ a 2 bande su ogni uscita bilanciata (100 Hz e 10 kHz) - - - - - - - - - - Potwerful 8 inputs and 8 outputs matrix ProvidedWith 4 RJ45 connectors for MIC-DESK8M and MIC-DESK16M micro control panels Alert message recording system for up to 60 seconds Link system allowing the use of up to 4 PREZONE88 in cascade Priority order Announcement > Alarm > Multi-zone broadcasting >WP8 andWS8 >WP8 Contact Mute on all outputs Signal indicator on each zone (-30dB) Output level display by zone via VU meter 3 LEDs 2-band Eq on each balnaced output (100 Hz and 10 kHz) - - - - - - - - - -

• Audio output: 0 dB (balanced)
• Audio input: -50 dB +/-3 dB (balanced)
• Paging mic input: -50 dB +/-3 dB (balanced)
• Remote mic input: -50 dB +/-3 dB (balanced)
• Wall control mic input: -50 dB +/-3 dB (balanced)
• Wall control line input: -20 dB +/-3 dB (unbalanced)
• 1-8 BGM input: -20 dB +/-3 dB (unbalanced)
• EQ Low @ 100 Hz: +/-12 dB +/-1 dB
• High @ 10 kHz: +/-12 dB +/-1 dB
• T.H.D.: Less than 0.05%
• Frequency response
• Paging mic input: 100 Hz~10 kHz +/-3 dB
• Remote mic input: 100 Hz~10 kHz +/-3 dB
• Wall control mic input: 100 Hz~10 kHz +/-3 dB
• Wall control mic input: 60 Hz~15 kHz +/-3dBv
• BGM: 60 Hz~15 kHz +/-3 dB
• Crosstalk: More than 75 dB
• Recording time: 55 sec.
• Serial interface
• Communication speed 9600bps
• RS-485
Communication distance: up to 300m (UTC cat5)
• Emergency power supply: +24 V_DC/350mA
• Power supply: AC 220~240V/50~60 Hz or +24 V_DC
• Power consumption: 35 W
• Dimensions: 482x132x315 mm
• Weight: 5,8 kg

- - - - - - - - - - formato cm : 0x0x0 - - - - - - - - - - peso kg : 7,4
