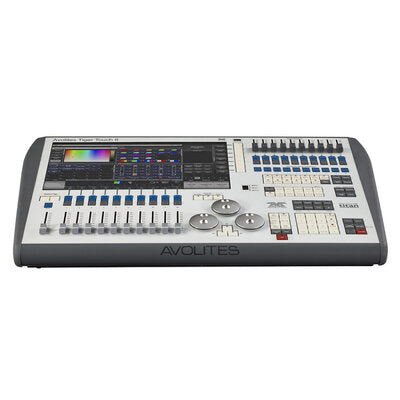

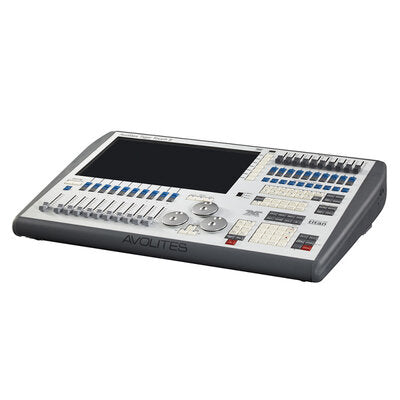

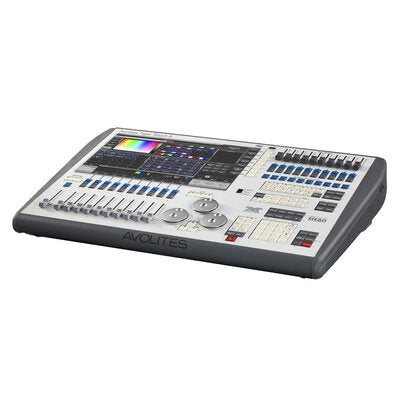

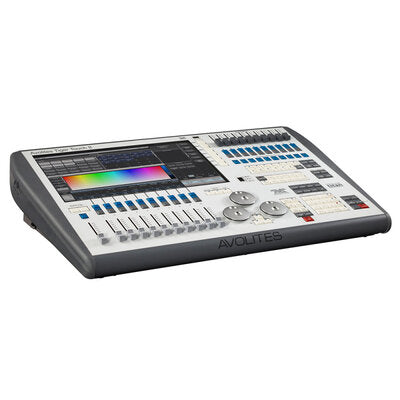

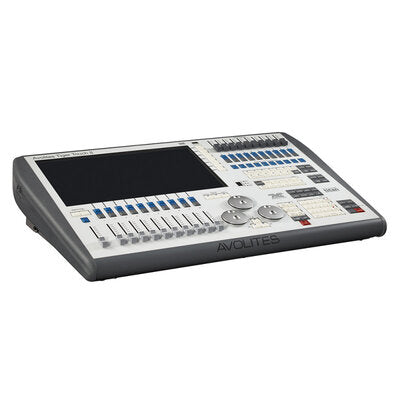

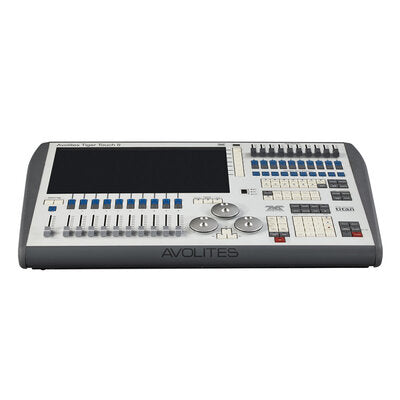

Avolites - Tiger Touch II - 10 main playback faders lighting console, 15.6" touch screen

» Specifiche tecniche / Technical specs | » English description

Console luci piccola e leggera, combinazione perfetta di prestazioni e portabilità. Con una maggiore potenza di elaborazione, layout dei controlli ridisegnato per adattarsi all'intera gamma Titan, uno schermo più luminoso del 100% e un motore grafico più veloce rispetto alla prima versione, Tiger Touch 2 supporta il Time Code SMPTE. Caratteristiche principali10 fader di riproduzione principali, con 60 pagine10 ulteriori fader preimpostati3 encoder attributi otticiSchermo tattile principale da 15,6" con controllo della luminositàUPS completamente integrato con avviso sullo schermo e conto alla rovesciaTriggering tramite messaggi MIDI e Time Code4 uscite DMX fisiche, fino a 16 su ArtNet o sACN - 8192 canaliSupporta i processori Titan Network per l'espansione DMX fino a 64 universi

Technical characteristics

Hardware features

• 20 playback faders - 10 Macro / Executor buttons
• 15.6" high-brightness touchscreen

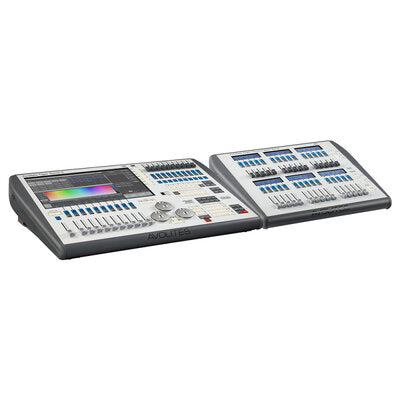

• Expand control surface with optional Tiger Touch Fader Wing
• 3 x high-quality optical encoder wheels
• Supports one additional touchscreen
• Avokey security built-in
• Integrated UPS

Software

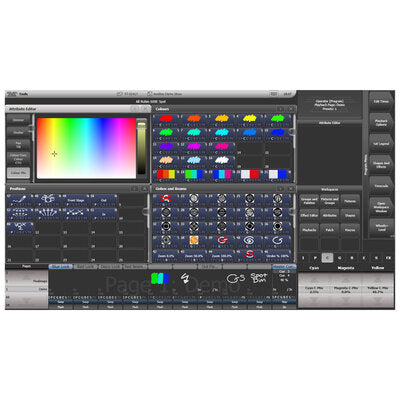

• Software platform: Avolites Titan
• DMX channels per device: 8192 max.
• DMX channels per system: 32,768
• 3D Visualisation: capture engine built in
• Max. fixtures: unlimited
• Keyframe effect engine: custom effects with any number of keyframes
• Pixel mapping: animation based, video via Synergy
• External control: Web API, MIDI, DMX, sACN
• Titan Net: multi-user with any Titan console
• Output formats: Art-Net, sACN, or DMX-512
• OS: Microsoft Windows 10 Enterprise

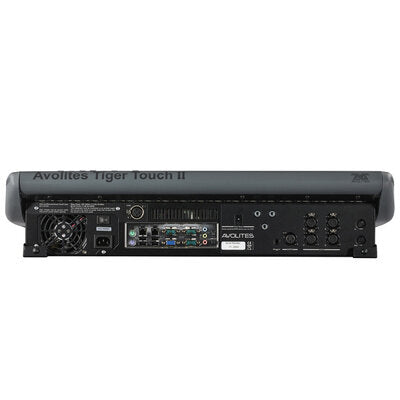

Connectivity

• DMX-512: 4 x Neutrik 5-pin XLR, optically isolated
• Network: 2 x 1 Gb Ethernet connections
• Mains power: IEC
• Data / peripherals: 4 x USB 2.0 plus 1 x USB 2.0 front-mounted
• External display: Display Port and DVI (one active output only)
• MIDI: IN & OUT 5-pin DIN
• SMPTE: 3-pin XLR
• Switch trigger: 1/4" jack

Physical specifications

• Power consumption: 80 W
• Power specification: 110 - 240 V_AC 50/60 Hz
• Heat output: 272.8 BTU/hr
• Operating environment ambient temp: 0 to 40 °C
• Max humidity 95% relative noncondensing
• Internal UPS 5 separate 5-minute periods, fully software integrated

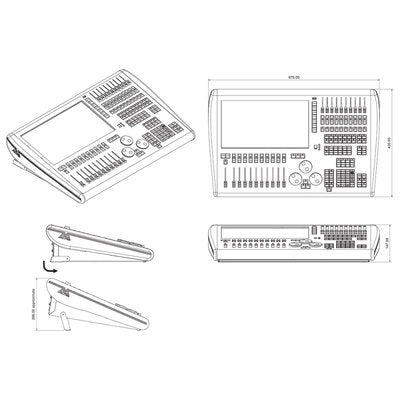

• Unit dimensions (W x D x H): 67.4 x 43.5 x 14.7 cm
• Weight: 15.2 kg
• Flight case dimensions: 75 x 62 x 30 cm
• Weight in flight case: 29.4 kg

EN:
Small and lightweight lighting console, perfect combination of performance and portability. With increased processing power, a redesigned control layout to fit the entire Titan range, a 100% brighter screen and a faster graphics engine than the first version, Tiger Touch 2 supports SMPTE Time Code. Main features10 main playback faders, with 60 pages10 further preset faders3 optical attribute encoders15.6" main touch screen with brightness controlFully integrated UPS with on-screen warning and countdownTriggering via MIDI messages and Time Code4 physical DMX outputs, up to 16 over ArtNet or sACN - 8192 channelsSupports Titan Network Processors for DMX expansion up to 64 universes
