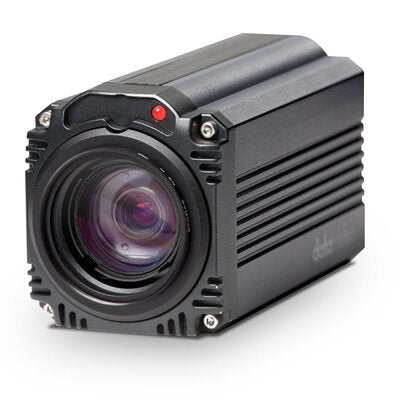

Datavideo - BC-50 - IP block camera, 1/2.7" CMOS sensor, Full HD 1080p

» Specifiche tecniche / Technical specs | » English description

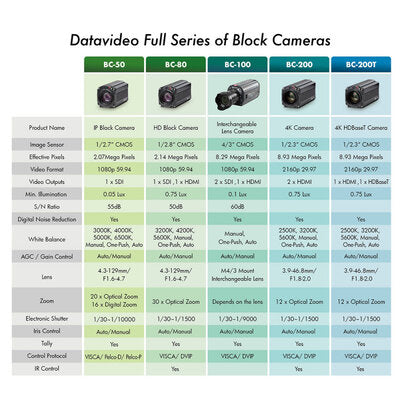

Block camera con sensore CMOS da 1/2,7" e risoluzione Full HD 1080p che fa parte di una linea costituita da 5 modelli; rappresenta una soluzione professionale per la produzione video in diretta. Lo zoom ottico 20x e quello digitale 16x della BC-50 consentono di montarla vicino o lontano dal soggetto da riprendere e di ottenere comunque immagini eccezionalmente nitide.Dispone di un'uscita 3G-SDI per l'integrazione nei flussi di lavoro standard, luce Tally a LED a doppio colore, alimentazione tramite Ethernet (PoE): basta utilizzare un singolo cavo CAT 6 per alimentarla.La telecamera BC-50 può fornire il segnale video compresso H.264 / H.265 / MJPEG, così come il protocollo RTMP per la trasmissione su Facebook e YouTube tramite una connessione RJ-45. Supporta inoltre VISCA / Pelco-D / Pelco-P consentendo il controllo della telecamera tramite interfaccia RS-485.

Technical characteristics

Video format	1080p 60 / 50 / 30 / 25  1080i 60 / 50  720p 60 / 50
Image sensor	1/2.7" progressive scan CMOS sensor
Effective pixels (approx.)	2.07 Mpixels
S/N ratio	55 dB
Min. illumination	0.05 lux @ (F1.8, AGC ON)
Electronic shutter	1/30 - 1/10,000 s
Zoom ratio	20x optical zoom, 16x digital zoom
Gamma control	OFF / normal
Iris control	auto / manual
Digital noise reductions	2D & 3D
On-Screen Display (OSD)	english, simplified chinese, traditional chinese
White balance	auto, 3000 K / indoor, 4000 K, 5000 K / outdoor,  6500 K_1, 6500 K_2, 6500 K_3, one push, manual
AGC / gain control	auto / manual (0 to 28 step)  max. gain limit (6 to 28 step)
Mirror / flip image	yes
Focus mode	auto / manual
Focal length	f = 4.3 mm (wide) to 88.5 mm (tele)  F1.6 to F4.7
Field of view (horizontal, wide)	approx. 63.7° (wide end) / 2.3° (tele end)
Image compensation	day & night function

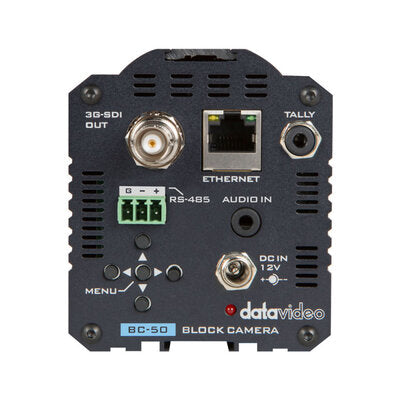

Video output	3G / HD-SDI x1
Audio input	3.5 mm mini-jack (stream output only)
Tally LED	dual color (red, green)
Filter	M52.0 x 0.75 thread with UV protection
Protocol	VISCA, Pelco-D, Pelco-C
Remote control interface and transmit distance	RS-485: transmit up to 1000 m
Video compression format	H.265, H.264, MJEPG
Audio compression format	AAC
Network protocol	TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.
F/W update	Ethernet
Tripod mount	1/4-20 UNC
Options	PTR-10
Color	dark blue
Operating temp. range	0 to 40 °C
Power	12 VDC 6 W
Dimension (L x W x H)	7.1 x 16.2 x 8.3 cm
Weight	0.7 kg
What's in the box	1 x BC-50 main unit  1 x thank you card  1 x 12 VDC power adaptor

EN:
Block camera with 1/2.7" CMOS sensor and Full HD 1080p resolution which is part of a line made up of 5 models; it represents a professional solution for live video production. The 20x optical zoom and 16x digital zoom of the BC- 50 allow you to mount it near or far from the subject to be shot and still obtain exceptionally sharp images.Features 3G-SDI output for integration into standard workflows, dual color LED Tally light, power over Ethernet (PoE): just use a single CAT 6 cable to power it.The BC-50 camera can provide H.264/H.265/MJPEG compressed video signal, as well as the RTMP protocol for broadcasting to Facebook and YouTube via an RJ-45 connection. It also supports VISCA / Pelco-D / Pelco-P allowing camera control via RS-485 interface.
