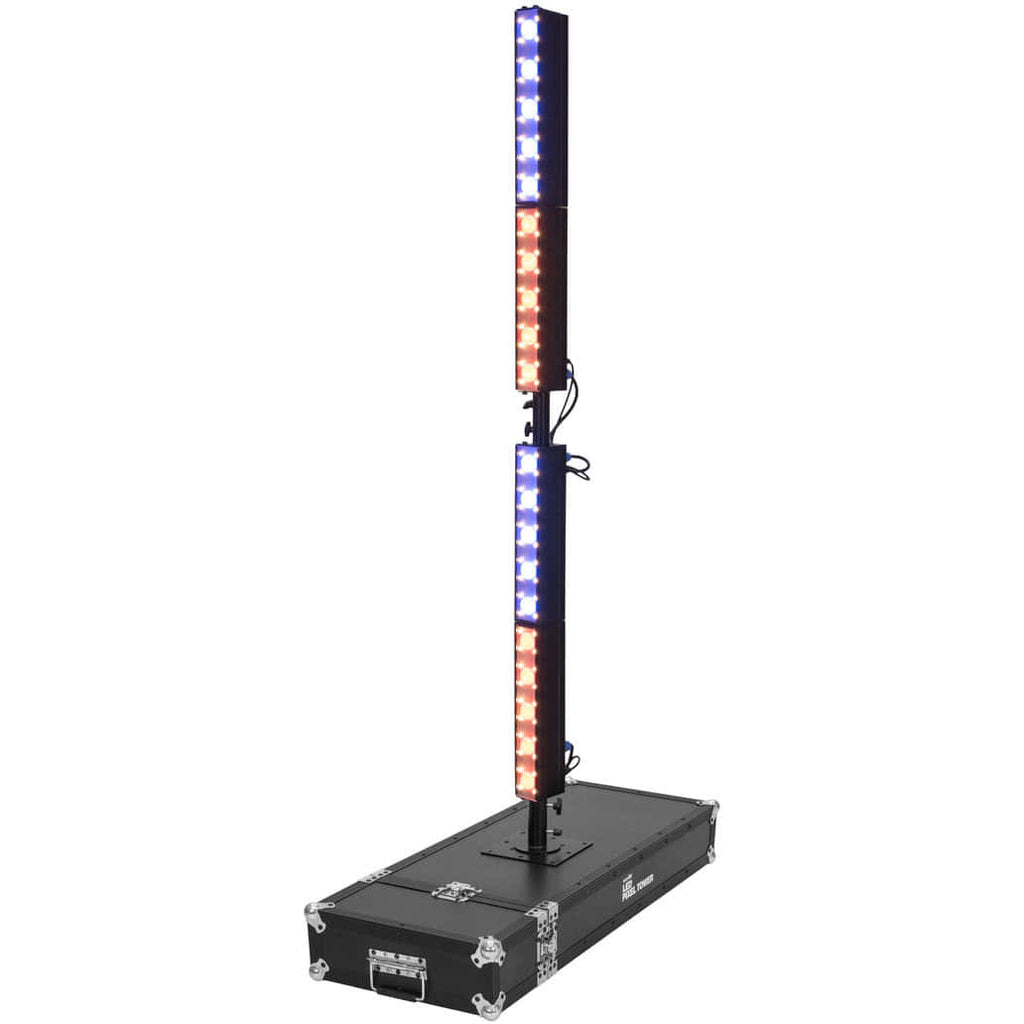

Eurolite LED Pixel Tower

The Eurolite Pixel Tower is a versatile, portable lighting system. The system consists of 2 individual light columns, each consisting of 2 rotating segments. The columns can be set up individually or in combination.

The whole system comes in a practical transport case that can also be used as a stand. The columns can also be placed on tripods individually or combined. The delivery includes numerous mounting accessories such as TV spigots, sleeves, feet or hanging cubes. This means that the system can not only be placed on tripods, but can also be used vertically or horizontally suspended or standing on the floor.r.

Two types of LEDs are used: Each segment consists of 5 powerful 15 Watt RGBW LEDs. The entire system therefore consists of 20 LEDs for the colored light. Each of these LEDs is individually controllable. The beam angle of the LEDs is 8 degrees, but you can widen it considerably using the frost filter supplied. The colored LEDs are optically complemented by a total of 80 warm white LEDs, which provide structure on the left and right and can be controlled separately for each segment.

The control can be done via different DMX modes. But even without external control, the possibilities are manifold: 95 different stand-alone programs designed by a German lighting designer can be set directly via the menu. These can run with or without the white ambient LEDs, at different speeds or music-controlled.

Features Eurolite LED Pixel Tower

• Two LED bars with a total of 20 x 15 W RGBW LED (4in1) and 80 x SMD LED in warm white
• Comprehensive range of accessories for versatile applications included in the delivery
• Mounting options: singly or combined standing on the supplied case, hanging via mounting adapters, standing or hanging via mounting brackets or via TV spigots
• TV spigot for installation on stands with 28 mm inner diameter
• Comes with a professional flight case with transport wheels ideally suited for mobile use and safe storage
• Each RGBW LED can be controlled individually and, like the warm white LEDs, in four groups
• Flicker-free projection
• Every LED bar can be manually rotated centrally at the joint
• Narrow beam angle, adjustable to a homogeneous and soft light by the removable milky diffuser plates (frost filter)
• Auto, music and DMX mode
• Sound-control via built-in microphone with adjustable microphone sensitivity
• 5, 12, 20, 27 or 84 DMX channels selectable
• Functions: stepless RGBW color mixture, preset colors, internal programs, dimmer and strobe effect
• 96 professionally designed integrated show programs in auto and music mode
• Convenient wireless control via included IR remote control EUROLITE IR-34
• Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
• Addressing and setting via control board with LCD
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX receivers (accessories)
• DMX512 control possible via any commercial DMX controller
• Power connection via P-Con jack and included power cable with safety plug
• LED: 20 x SMD 0,3 W WW (homogenous color mix)
• LED: 5 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
• Control: IR remote control
