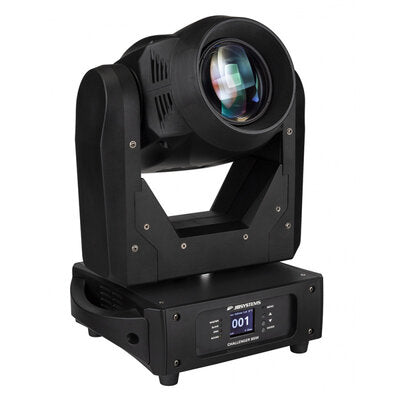

JB Systems - CHALLENGER BSW - Beam / Spot / Wash 150 W LED moving head, motorized focus, zoom, 3 facet rotating prism

» Specifiche tecniche / Technical specs | » English description

Testa mobile LED multifunzione Beam, Spot, Wash 3-in-1 dotata di un potentissimo LED da 150 W.Puntamento, zoom e messa a fuoco controllate attraverso DMX. Prisma rotante a 3 facce. Controllo dimmer 0 - 100%, possibilità di effetti strobo. Ruota Gobo separata con 7 Gobo fissi + aperto. Ruota Gobo separata con 6 Gobo rotanti + aperto (diametro: 21,8 mm, pattern 19 mm). Ruota colori con 8 colori + aperta. Ottimi programmi preconfigurati per spettacoli luci automatici efficaci e coinvolgenti.Diverse le modalità operative:Controllo DMX: 5, 17, 20 canali Stand-alone: movimenti e colori a tempo di musica pilotati da microfono internoMaster/Slave: sincronizzazione perfetta di numerose macchine, per show ricchi e coinvolgentiSmart DMX (solo 5 canali!) con predisposta per DMX wireless: basta collegare il dongle opzionale WTR-DMX DONGLE (codice d'ordine Briteq: B04645).Connettori XLR a 3 e 5-pin per DMX IN/OUT. Per la navigazione nel menù si ricorre a un display LCD a colori. Completano le caratteristiche un assorbimento elettrico di 189 W e un peso di 12.32 kg.Benefici per gli utentiVersatilità grazie a tre modalità operative in un unico dispositivo: Beam, Spot e WashControllo precisoProgrammi preconfigurati per spettacoli luci automatici efficaci e coinvolgentiEfficienza energetica, solo 189 W di consumoPredispozione per DMX wirelessAmbiti di utiizzo Eventi dal vivoProduzioni televisive e cinematograficheInstallazioni permanenti in luoghi d'intrattenimentoPresentazione e fiereRental

Technical characteristics

• Power input: 100 - 240 V_AC 50/60 Hz
• Power consumption: 189 W
• Color: black
• Display: LCD
• Fixation: included omega bracket
• IP rating: indoor
• Modes: stand-alone, manual, DMX, Smart-DMX, Master/Slave
• Manual control: yes
• Master/Slave: yes
• Smart-DMX: yes
• Stand-alone modes: automatic, sound
• Upgradable software: yes
• Maximum DMX channels: 20
• Lamp type: COB
• Functions: motorized focus, motorized zoom, 3-facet round prism, motorized frost
• Fixed Gobos: 7
• Rotating Gobos: 6
• Min. beam angle: 2°
• Max. beam angle: 28°

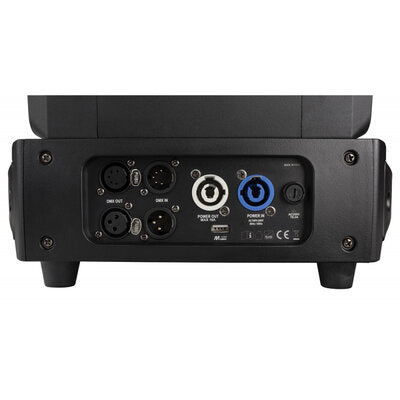

• Input connectors: 3-pin XLR, 5-pin XLR, powerCON, wireless DMX
• Output connectors: 3-pin XLR, 5-pin XLR, powerCON
• Dimensions: 45.2 x 29 x 25.6 cm
• Weight: 12.32 kg

EN:
Multifunctional LED moving head Beam, Spot, Wash 3-in-1 equipped with a very powerful 150 W LED.Pointing, zoom and focus controlled via DMX. 3-facet rotating prism. 0-100% dimmer control, possibility of strobe effects. Separate Gobo wheel with 7 fixed Gobos + open. Separate Gobo wheel with 6 rotating Gobos + open (diameter: 21.8 mm, pattern 19 mm). Color wheel with 8 colors + open. Excellent pre-configured programs for effective and engaging automatic light shows.Different operating modes:DMX control: 5, 17, 20 channelsStand-alone: ​​movements and colors in time to the music controlled by an internal microphoneMaster/Slave: perfect synchronization of numerous machines, for rich and engaging showsSmart DMX (only 5 channels!) with provision for wireless DMX: just connect the optional WTR-DMX DONGLE dongle (Briteq order code: B04645)3 and 5-pin XLR connectors for DMX IN/OUT. A color LCD display is used to navigate the menu.The features are completed by a power consumption of 189 W and a weight of 12.32 kg.User benefitsVersatility thanks to three operating modes in one device: Beam, Spot and WashPrecise controlPre-configured programs for effective and engaging automatic light showsEnergy efficient, only 189 W of consumptionReady for wireless DMXAreas of useLive eventsTV and film productionPermanent installations in entertainment venuesPresentation and trade fairsRental
