NovaStar - vx1000pro - All-in-one controller, video processing and control, 4096 x 2160 @ 60 Hz (1 x HDMI 2.0) max. input resolution, 10 Ethernet ports, zero latency, USB 3.0 playback

» Specifiche tecniche / Technical specs | » English description

NovaStar VX1000 Pro è il nuovo controller all-in-one che integra l'elaborazione e il controllo video in un unico dispositivo. La presenza di ben 10 porte Ethernet di uscita fornisce una capacità di caricamento di 6,5 M pixel.Una singola unità può gestire 10.240 pixel di larghezza x 8192 pixel di altezza dell’immagine. Ingresso HDMI 2.0 ad alta risoluzione 4K x 2K a 60 Hz, visualizzazione punto a punto 4K x 2K, alta qualità dell’immagine 4K con 6 layer e free scaling per ciascuna layer!A livello di connessioni, VX1000 Pro ha 2 ingressi HDMI 1.3, un ingresso / loop HDMI 2.0 e un ingresso / loop 3G-SDI + 1 x USB3.0 e 1 x 10G OPT. Sono presenti anche 2 porte ottiche per la trasmissione del segnale video a lunga distanza. Un singolo processore consente tre modi di funzionamento con commutazione libera fra l’uno e l’altro: video controller, bypass e fiber converter.Oltre a gestire una più alta risoluzione d'ingresso (4096 x 2160 @ 60 Hz) e un numero doppio di layer rispetto al VX1000, questo modello offre la possibilità di abilitare la modalità a bassa latenza e ByPass, fondamentale per le applicazioni video in tempo reale, e la riproduzione USB 3.0 Plug & Play, non disponibile nella serie VX standard. Infine, per la massima stabilità, è presente un sistema completo di ridondanza: supporto per sorgenti di input ridondanti, configurazione di sistema, porte Ethernet e dispositivi. Con 256 preset personalizzabili e una latenza 0 frame, questo potente controller può essere ampiamente utilizzato in applicazioni come il noleggio di fascia media e alta, i sistemi di controllo sul palco e display LED a passo fine.Vantaggi per gli utentiFlessibilità di connessione, con 10 porte Ethernet d'uscita e ingressi HDMI e 3G-SDI2 porte ottiche per la trasmissione del segnale video a lunga distanzaLatenza pressoché nulla6 layers 2K x 1KSupporto per la riproduzione USB 3.0Ridondanza per gli ingressi, configurazione di sistema, porte Ethernet e dispositiviAmbiti d'utilizzoNoleggio di fascia medio / alta per concerti, conferenze e spettacoli liveLED wall a passo fine, per esempio nei centri commerciali

Technical characteristics

Input connectors

• 1 x 3G-SDI:
  • ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported
  • Max. input resolution: 1920×1080 @ 60 Hz
  • Deinterlacing processing supported
  • 3G-SDI loop output supported
  • 10-bit video inputs supported
  • Does not support input resolution and bit depth settings
• 2 x HDMI 1.3:
  • Max. input resolution: 1920 x 1080 @ 60 Hz
  • HDCP 1.4  supported
  • Does not support interlaced signal inputs
  • Custom resolutions supported − Max. width 2048 pixels (2048 x 1080 @ 60 Hz), Max. height 2048 pixels (1080 x 2024 @ 60 Hz)
• 1 x HDMI 2.0:
  • Max. input resolution: 4096 x 2160 @ 60 Hz
  • Compatible with HDMI 1.4 and HDMI 1.3 video inputs
  • HDMI 2.0-1 loop out supported
  • Custom resolutions supported: max. width: 8192 pixels (8192 x 1080 @ 60 Hz), max. height: 8188 pixels (1080 x 8188 @ 60 Hz)
  • Supports 8 / 10 / 12 bit video inputs
  • HDCP 1.4 and HDCP 2.2 supported
  • Accompanied audio supported
  • Does not support interlaced signal inputs

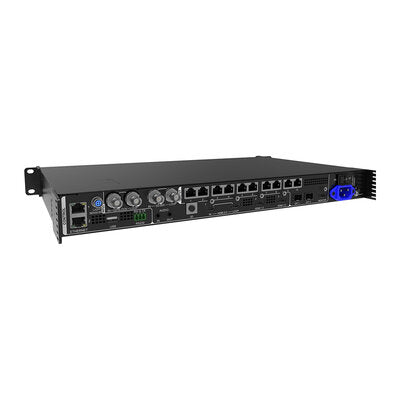

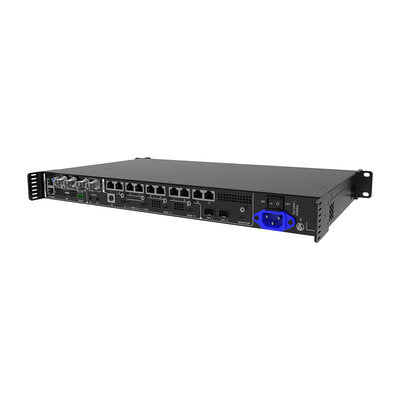

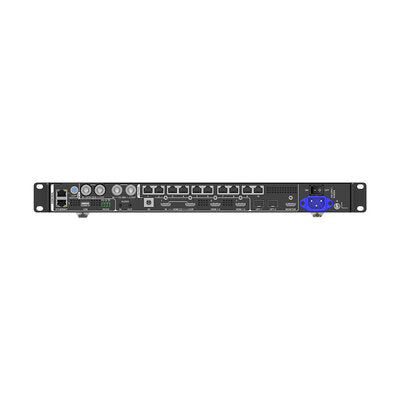

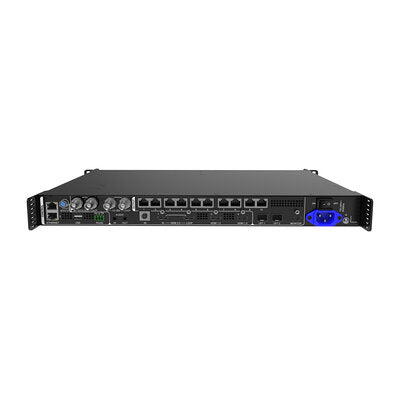

Output connectors

• 10 x Ethernet ports:
  • Max. loading capacity: 6.5 million pixels
  • Max. width: 10,240 pixels
  • Max. height: 8192 pixels
  • A single port loading capacity: 650,000 pixels (input bit depth: 8 bit)
• HDMI 1.3:
  • Support monitor and video output modes
  • Output resolution: 1920 x 1080 @ 60 Hz (fixed)
• 2 x OPT: 10 G optical fiber ports
  • OPT 1: self-adaptive, either for video input or for output
  • OPT 2: for output only, with copy and backup modes

Audio connectors

• 1 x audio input, 1 x audio output:
  • 3.5 mm standard audio input and output connectors
  • Audio sampling rate up to 48 kHz

Control connectors

• 2 x Ethernet:
  • connect to the PC and log into the Unico web page for device control
  • Input or output connector for device cascading
• 1 x USB 2.0:
  • Update the firmware via the USB drive
  • Import or export device logs and EDID files
• 1 x RS232:
  • RX: receive signals
  • TX: send signals
  • G: ground
• 1 x GENLock IN-LOOP: connect to an external sync signal. Accepts bi-level and tri-level signals.
  • IN: accept the sync signal
  • LOOP: loop the sync signal
• Light sensor: connect to a light sensor to collect the ambient brightness, allowing for
  automatic screen brightness adjustment

__________

• Power connector: 100 - 240 V_AC 50/60 Hz
• Rated power consumption: 43 W
• Noise level: 45 dB (A)
• Working temperature: 0 to 50 °C
• Working humidity: 5 to 85% RH, non-condensing
• Dimensions: 48.26 x 30.22 x 5.01 cm
• Peso netto: 3.9 kg

EN:
NovaStar VX1000 Pro is the new all-in-one controller that integrates video processing and control in a single device. The presence of 10 Ethernet output ports provides a loading capacity of 6.5 M pixels.A single unit can handle 10,240 pixels wide x 8192 pixels high image. HDMI 2.0 input at high resolution 4K x 2K at 60 Hz, 4K x 2K dot to dot display, high image quality 4K with 6 layers and free scaling for each layer!In terms of connections, VX1000 Pro has 2 x HDMI 1.3 inputs, 1 x HDMI 2.0 input / loop, 3G-SDI input / loop + 1 x USB3.0 and 1 x 10G OPT. There are also 2 optical ports for long-distance video signal transmission. A single processor allows three operating modes with free switching between them: video controller, bypass and fiber converter.In addition to handling a higher input resolution (4096 x 2160 @ 60 Hz) and twice the number of layers compared to the VX1000, this model offers the ability to enable low latency and ByPass mode, essential for real-time video applications, and USB 3.0 Plug & Play playback, not available in the standard VX series.Finally, for maximum stability, a complete redundancy system is present: support for redundant input sources, system configuration, Ethernet ports and devices. With 256 customizable presets and a 0 frame latency, this powerful controller can be widely used in applications such as mid- to high-end rental, stage control systems and fine-pitch LED displays.User benefitsFlexible connection with 10 Ethernet output ports and HDMI and 3G-SDI inputs2 optical ports for long-distance video signal transmissionNearly zero latency6 layers 2K x 1KSupport for USB 3.0 playbackRedundancy for inputs, system configuration, Ethernet ports and devicesAreas of useMedium / high-end rental for concerts, conferences and live showsFine-pitch LED walls, for example in shopping malls
