PIXELHUE - 8 x DP 1.2 / HDMI 2.0 + 4 x 12G-SDI inputs, 8 x HDMI 2.0 outputs presentation switcher with flight case

» Specifiche tecniche / Technical specs | » English description

Descrizione (IT): P20 è uno dei due nuovi sofisticati e potenti presentation switcher prodotti da Pixelhue.   Basato su un’architettura hardware FPGA di alte prestazioni è in grado di elaborare video a risoluzione 4K 60p 4:4:4 a 10 bit con un de-interlacciamento dell'immagine ad alte prestazioni.  Nasce con un'ampia varietà di connettori 4K per interfacciarsi con tutti i dispositivi video più recenti. Gli ingressi includono infatti HDMI 2.0 DP1.2 12G-SDI e 8 porte in fibra ottica 10G. Queste ultime “copiano” le uscite HDMI 2.0 per consentire agli switcher stessi di trasmettere segnali ai controller dei display LED su una distanza fino a 10 km senza convertitori in fibra con una evidente risparmio anche nei costi. Gli ingressi disponibili sono 8 x DP 1.2 / HDMI 2.0 + 4 x 12G-SDI mentre le uscite 8 x HDMI 2.0. A queste si aggiungono 4 uscite AUX HDMI 1.3 che si possono appunto collegare a dispositivi ausiliari come i teleprompter e un'uscita Multiviewer dedicata fornita per il monitoraggio live di tutti gli ingressi e le uscite da un display. Pixelhue P20 può funzionare sia in modalità switcher che PGM in base al tipo di applicazione. Nel primo caso si hanno due uscite 4K x 2K @ 60 Hz. In modalità PGM viceversa 8K x 4K sempre a 60 Hz. Grazie a questa doppia modalità di lavoro a ingressi / uscite a 4K reali senza sotto-campionamento del colore elaborazione video di alta qualità con transizioni e visualizzazioni fluide mosaico immagini impeccabile vari effetti di transizione questo presentation switcher della serie P è la soluzione perfetta per eventi live di medie dimensioni e molte installazioni fisse che richiedono elevata affidabilità facilità d'uso la miglior qualità possibile dell'immagine e funzionalità di elaborazione 4K live all'avanguardia. In termini di layer P20 ne supporta 12 DL (2 x MAIN + 10 x PIP) o 8 DL (4 x MAIN + 4 x PIP) con la possibilità da parte degli utenti di poter organizzare liberamente la disposizione delle stesse. Inoltre sono disponibili fino a 128 preset per soddisfare le diverse esigenze. Le immagini ad alta risoluzione possono essere catturate da ingressi e uscite live e utilizzate come background. Inoltre il P20 è dotato di funzionalità DSK avanzate tra cui luma key e chroma key e supporta SDR HDR10 e HLG con la conversione tra questi formati. Molto flessibili le opzioni di controllo che ne fanno un apparecchio estremamente versatile ma anche semplice da utilizzare. Queste opzioni prevedono tasti retroilluminati sul pannello frontale e display LCD grafico da 5” per l’accesso diretto alle funzioni oppure in alternativa l’utilizzo della console live U5 l’utilizzo di un’intuitiva interfaccia GUI Web e stream deck. Sono poi supportati diversi metodi di backup incluso il backup della sorgente di input di output e il backup del dispositivo per salvaguardare gli eventi. Il passaggio dal dispositivo primario a quello di backup è istantaneo. Da ultimo segnaliamo l’eccellente qualità costruttiva e dei componenti elettronici che caratterizza P20 rendendolo estremamente affidabile nelle condizioni d’uso più gravose. Il costruttore ha effettuato una serie di rigorosi test di caduta urti / vibrazioni e test termici in modo da garantirne la perfetta funzionalità anche in condizioni di utilizzo estreme come in ambito touring e rental. 24 ore su 24 7 giorni su 7. Benefici per gli utenti Elevata qualità dell'immagine (4K 60p 4:4:4 a 10 bit) Vasta gamma di connettori inclusi HDMI 2.0 DP1.2 12G-SDI e 8 porte in fibra ottica 10G Doppia modalità di funzionamento switcher / PGM Transizioni e visualizzazioni fluide Diverse opzioni di controllo Diversi metodi di backup in modo che gli eventi possano continuare senza interruzioni in caso di problemi  Grande affidabilità anche nell'uso più gravoso Ambiti d'utilizzo Eventi live (concerti conferenze spettacoli dal vivo...) Installazioni fisse in teatri sale conferenze centri congressi Produzioni televisive Eventi sportivi

• Peso: 26000 g
• Dimensioni (cm): 21 (H) × 54 (W) × 74 (L)

Video:

Guarda su YouTube

Description (EN)

P20 is one of two new sophisticated and powerful presentation switchers produced by Pixelhue.  Based on a high-performance FPGA hardware architecture it is capable of processing 4K 60p 4:4:4 10-bit video with high-performance image de-interlacing. It comes with a wide variety of 4K connectors to interface with all the latest video devices. Inputs include HDMI 2.0 DP1.2 12G-SDI and 8 x 10G fiber optic ports. The latter “copy” the HDMI 2.0 outputs to allow the switchers themselves to transmit signals to LED display controllers over a distance of up to 10 km without fiber converters with obvious savings in costs. The available inputs are 8 x DP 1.2 / HDMI 2.0 + 4 x 12G-SDI while the outputs are 8 x HDMI 2.0. In addition to these there are 4 x AUX HDMI 1.3 outputs that can be connected to auxiliary devices such as teleprompters and a dedicated Multiviewer output provided for live monitoring of all inputs and outputs from a display. The Pixelhue P20 can operate in both switcher and PGM modes depending on the type of application. In the first case you have two 4K x 2K @ 60 Hz outputs. In PGM mode on the other hand 8K x 4K always at 60 Hz. Thanks to this dual working mode true 4K inputs / outputs without color sub-sampling high-quality video processing with smooth transitions and displays flawless image mosaic various transition effects this P-series presentation switcher is the perfect solution for medium-sized live events and many fixed installations that require high reliability ease of use the best possible image quality and cutting-edge 4K live processing capabilities. In terms of layers P20 supports 12 DL (2 x MAIN + 10 x PIP) or 8 DL (4 x MAIN + 4 x PIP) with the possibility for users to freely organize their layout. In addition up to 128 presets are available to meet different needs. High-resolution images can be captured from live inputs and outputs and used as background. In addition the P20 is equipped with advanced DSK features including luma key and chroma key and supports SDR HDR10 and HLG with conversion between these formats. The control options are very flexible making it an extremely versatile device but also simple to use. These options include backlit buttons on the front panel and a 5” graphic LCD display for direct access to functions or alternatively the use of the U5 live console the use of an intuitive Web GUI interface and stream deck. Various backup methods are also supported including input source backup output source backup and device backup to safeguard events. The switch from the primary device to the backup device is instantaneous. Finally we highlight the excellent build quality and electronic components that characterize P20 making it extremely reliable in the most demanding conditions of use. The manufacturer has carried out a series of rigorous drop shock / vibration and thermal tests in order to guarantee perfect functionality even in extreme conditions of use such as in the touring and rental sectors. 24 hours a day 7 days a week. Users benefits High image quality (4K 60p 4:4:4 10-bit) Wide range of connectors including HDMI 2.0 DP1.2 12G-SDI and 8 x 10G fiber optic ports Dual switcher / PGM operation mode Smooth transitions and displays Various control options Various backup methods so that events can continue without interruption in the event of problems High reliability even in the most demanding use Areas of use Live events (concerts conferences live shows...) Fixed installations in theaters conference rooms convention centers TV productions Sports events

Specifiche Tecniche

Technical characteristics

• Switching between switcher mode and PGM only mode
• 4K I/O: HDMI 2.0 DP 1.2 and 12G-SDI
• 10G optical fiber ports for copying output
• 3.5 mm dual-channel audio mini-jack (reserved)

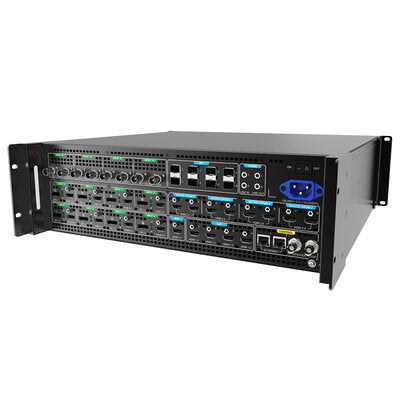

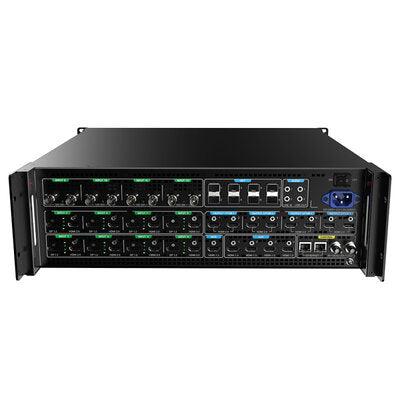

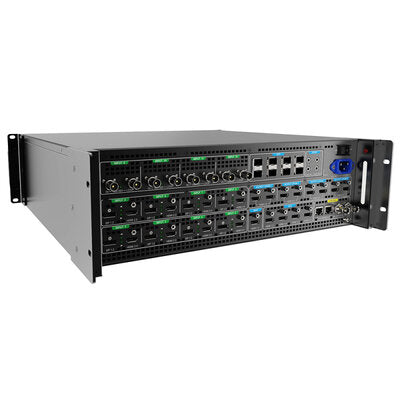

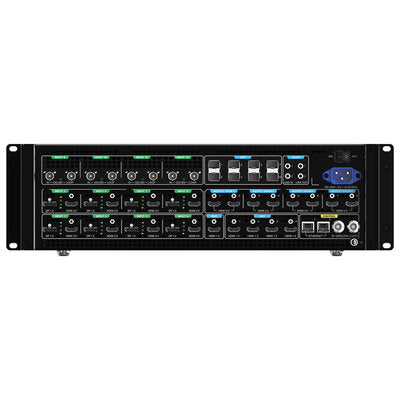

• 8 x DP 1.2/HDMI 2.0 4 x 12G-SDI (in & loop)
• 8 x HDMI 2.0 outputs
• Up to 2 x 4K x 2K @ 60 Hz outputs in switcher mode and output resolution per P20 in PGM only mode up to 8K x 4K @ 60 Hz
• AUX outputs allowing auxiliary devices such as teleprompters to be connected
• A dedicated Multiviewer output allowing the PGM & PVW screens and all the connected sources to be monitored from one display
• 2 x Gigabit Ethernet ports used for control and monitoring
• Easy replacement of output connectors with software
• Up to 12 DL layers (2 x MAIN + 10 x PIP) or 8 DL layers (4 x MAIN + 4 x PIP)
• Up to 128 presets
• Up to 255 BKGs & logos (512 MB)
• 8 bit / 10 bit / 12 bit video sources accepted
• Free conversion between SDR HDR10 and HLG
• Advanced DSK capability: chroma key and luma key
• High-performance image deinterlacing
• High-precision output synchronization in PGM only mode
• Various transition effects: fade and cut
• Custom test patterns
• Full-link HDCP for safer content transmission
• Device backup output copying and input backup to guarantee stability and reliability
• Visualized live monitoring of input and output connector statuses

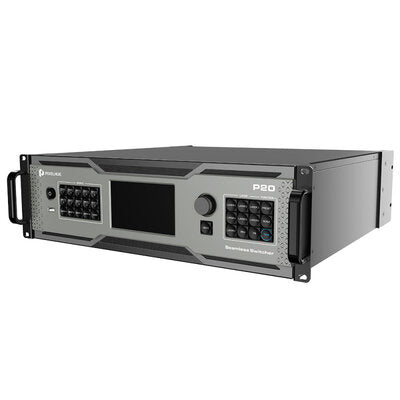

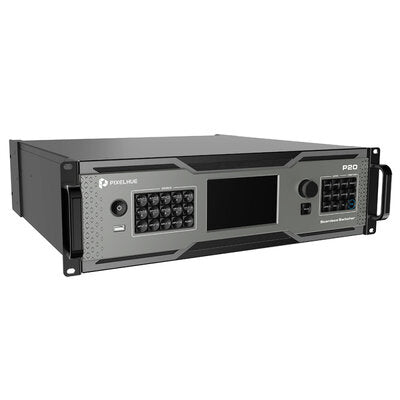

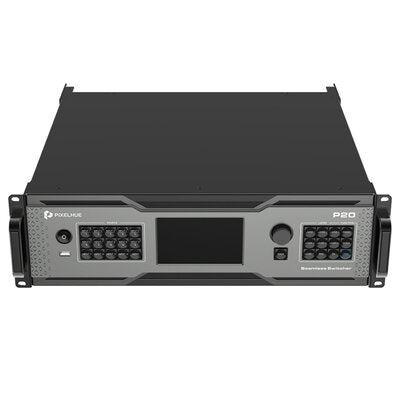

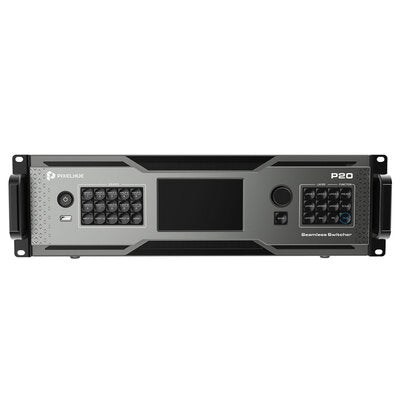

• 5" graphical LCD on the front panel allowing for a more intuitive user experience
• Exceptionally easy to control via event controller web GUI front panel and Stream Deck
• Flight case included

Inputs

For an input that contains a DP 1.2 and HDMI 2.0 only one connector can be selected as input at the same time.

• DP 1.2
  • Max. resolution: 4096 x 2160 @ 60 Hz / 8192 x 1080 @ 60 Hz
  • Min. resolution: 800 x 600 @ 60 Hz
  • Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
  • Max. height: 8186 pixels (1080 x 8186 @ 60 Hz)
  • Max. frame rate: 120 Hz
  • EDID management (support for standard resolutions up to 8192 x 1080 @ 60 Hz and custom resolutions)
  • HDCP 1.3 compliant
  • No support for interlaced video signal
• HDMI 2.0
  • Max. resolution: 4096 x 2160 @ 60 Hz / 8192 x 1080 @ 60 Hz
  • Min. resolution: 800 x 600 @ 60 Hz
  • Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
  • Max. height: 8186 pixels (1080 x 8186 @ 60 Hz)
  • Max. frame rate: 120 Hz
  • Support for HDR
  • EDID management (support for standard resolutions up to 3840 x 2160 @ 60 Hz and custom resolutions)
  • HDCP 2.2 compliant and downward compatible
  • Support for interlaced video signal
• 12G-SDI

  • Support for ST-2082 (12G) ST-2081 (6G) ST-424 (3G) ST-292 (HD)
  • Max. resolution: 4096 x 2160 @ 60 Hz
  • Max. frame rate: 60 Hz
  • Support for interlaced input signal

Outputs

• HDMI 2.0
  • Max. resolution: 4096 x 2160 @ 60 Hz/8192 x 1080 @ 60 Hz
  • Min. resolution: 800 x 600 @ 60 Hz
  • Max. width: 8192 pixels (8192 x 1080 @ 60 Hz)
  • Max. height: 8186 pixels (1080 x 8186 @ 60 Hz)
  • Max. frame rate: 120 Hz
  • Support for HDR
  • EDID management (support for standard resolutions up to 3840 x 2160 @ 60 Hz and custom resolutions)
  • HDCP 2.2 compliant and downward compatible
  • Support for interlaced video signal

OPT

• 10G optical fiber ports
• The OPT ports copy the outputs of HDMI 2.0 connectors
• The transmission distance with SMF is up to 10 km

Multiviewer

• One dedicated HDMI 1.3 connector
• Connect to the Multiviewer display allowing for live monitoring of all the inputs and outputs from one display
• The default output resolution is 1920 x 1080 @ 60 Hz and the frame rate can be changed
• A variety of Multiviewer layout templates are provided

AUX

• HDMI 1.3 connectors with support for interlaced video signal output
• Connect to auxiliary devices such as teleprompters
• Default output resolution: 1920 x 1080 @ 60 Hz
• Maximum output resolution: 2048 x 1152 @ 60 Hz

Ethernet

• 2 x Gigabit Ethernet ports used for control and monitoring
• One works as primary and the other as backup
• Two Ethernet ports share the same IP address

Genlock

• Genlock synchronization signal connectors:
  • GENLOCK IN: synchronization signal input
  • GENLOCK OUT: synchronization signal loop output

Transition & effects

• Seamless transition from PVW to PGM via Take Cut or T-bar operation
• Fade and cut transition effects supported
• Customizable transition durations  (0.1 to 10 s)
• Two options for transition between PVW and PGM: Copy and Swap

Layers

• 2 x MAIN DL layers and 10 x PIP DL layers or 4 x MAIN DL layers and 4 x PIP DL layers
• Layer effects: DSK mask crop flip cut & fill border shadow KeyFrame and more
• Layer preset: all (or a portion) of the current layer’s properties (such as input source position size effects etc.) can be saved as a layer preset in PixelFlow for easy recall

BKG & logo

• Up to 255 BKGs & LOGOs (512 MB)
• BKG can be either a captured or imported image
• High-definition images can be captured from live inputs and outputs and used as BKG
• BKG can be repositioned and resized. LOGO can be repositioned only

Control options

• Front panel buttons and 5" graphical LCD
• Event controller U5 / U5 Pro
• Event management software PixelFlow
• Third-party control system Stream Deck (Companion integrated into the P series)

PixelFlow software functionalities

• Long-term stable running
• Upgraded and visualized UI adaptive to U5/U5 Pro/PC screens
• One click to change skins of U5/U5 Pro buttons
• Software parameter controllable by U5/U5 Pro encoders or faders
• Distinct function areas and hover menu for ease of use
• Fully functional simulator for offline configuration and practice

Processing capability

• FPGA-based high-performance image enhancement architecture
• Ultra-low latency as low as 1 frame in proper configuration
• BT.601 BT.709 BT.2020 DCI-P3 color space processing support
• Free conversion between SDR HDR10 and HLG
• Advanced DSK capability: chroma key and luma key
• Compatible with HDCP 1.4 and HDCP 2.2

Max. resolutions supported

• HDMI 2.0 DP 1.2 (18 Gbps)
  • 8 bit: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 - 4096 x 2160 @ 60 Hz - 8192 x 1080 @ 60 Hz
  • 10 bit: RGB 4:4:4 / YCbCr 4:4:4 - 4096 x 2160 @ 30 Hz - 4096 x 2160 @ 30 Hz - 4096 x 1080 @ 60 Hz / YCbCr 4:2:2 - 4096 x 2160 @ 60 Hz
  • 12 bit: RGB 4:4:4 4096 x 2160 @ 30 Hz - 4096 x 1080 @ 60 Hz / YCbCr 4:4:4 4096 x 2160 @ 30 Hz - 4096 x 1080 @ 60 Hz / YCbCr 4:2:2 4096 x 2160 @ 60 Hz
• 12G-SDI (11.88 Gbps)
  • 10 bit: YCbCr 4:2:2 4096 x 2160 @ 60 Hz

Dimensions & weight

• 46.26 x 13.25 x 50.1 cm
• 57 x 21 x 66 cm (with flight case)
• 26 kg (with flight case)
