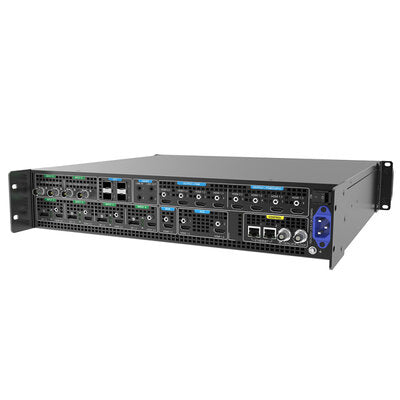

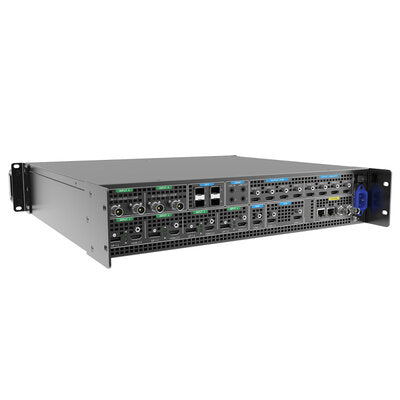

PIXELHUE - P10 (with Flight Case) - 4 x DP 1.2 / HDMI 2.0 + 2 x 12G-SDI inputs, 2 x HDMI 2.0 + 6 x HDMI 1.3 outputs presentation switcher with flight case

P10 è uno dei due nuovi, sofisticati e potenti presentation switcher prodotti da Pixelhue. Basato su un’architettura hardware FPGA di alte prestazioni, è in grado di elaborare video a risoluzione 4K 60p 4:4:4 a 10 bit con un de-interlacciamento dell'immagine ad alte prestazioni. Nasce con un'ampia varietà di connettori 4K per interfacciarsi con tutti i dispositivi video più recenti. Gli ingressi includono infatti HDMI 2.0, DP1.2, 12G-SDI e 4 porte in fibra ottica 10G. Queste ultime "copiano" le uscite HDMI 2.0 per consentire agli switcher stessi di trasmettere segnali ai controller dei display LED su una distanza fino a 10 km senza convertitori in fibra, con una evidente risparmio anche nei costi. Gli ingressi disponibili sono 4 x DP 1.2 / HDMI 2.0 + 2 x 12G-SDI, mentre le uscite 2 x HDMI 2.0 + 6 x HDMI 1.3. A queste si aggiungono 2 uscite AUX HDMI 1.3 che si possono, appunto, collegare a dispositivi ausiliari e un'uscita Multiviewer dedicata fornita per il monitoraggio live di tutti gli ingressi e le uscite da un display. Pixelhue P10 può funzionare sia in modalità switcher che splicer in base al tipo di applicazione. Nel primo caso, si ha un’uscita 4K x 2K @ 60 Hz. In modalità splicer, viceversa, 8K x 2K, sempre a 60 Hz. Grazie a questa doppia modalità di lavoro, a ingressi/uscite a 4K reali senza sotto-campionamento del colore, elaborazione video di alta qualità con transizioni e visualizzazioni fluide, mosaico immagini impeccabile, vari effetti di transizione, questo presentation switcher della serie P è la soluzione perfetta per eventi live di piccole/medie dimensioni e molte installazioni fisse che richiedono elevata affidabilità, facilità d'uso, la miglior qualità possibile dell'immagine e funzionalità di elaborazione 4K live all'avanguardia. In termini di layer, P10 ne supporta 6 (2 layer 4K + 4 layer 2K o 3 layer 4K) con la possibilità da parte degli utenti di poter organizzare liberamente la disposizione delle stesse. Inoltre, sono disponibili fino a 128 preset per soddisfare le diverse esigenze. Le immagini ad alta risoluzione possono essere catturate da ingressi e uscite live e utilizzate come background. Molto flessibili le opzioni di controllo, che ne fanno un apparecchio estremamente versatile ma anche semplice da utilizzare. Queste opzioni prevedono tasti retroilluminati sul pannello frontale e display LCD grafico da 5" per l’accesso diretto alle funzioni, oppure in alternativa l’utilizzo della console live U5, l’utilizzo di un’intuitiva interfaccia GUI Web e stream deck. Da ultimo, segnaliamo l’eccellente qualità costruttiva e dei componenti elettronici che caratterizza P10, rendendolo estremamente affidabile nelle condizioni d’uso più gravose. Il costruttore ha effettuato una serie di rigorosi test di caduta, urti/vibrazioni e test termici in modo da garantirne la perfetta funzionalità anche in condizioni di utilizzo estreme, come in ambito touring e rental. 24 ore su 24, 7 giorni su 7.

Technical characteristics

• Switching between switcher mode and splicer mode
• 4K I/O: HDMI 2.0, DP 1.2 and 12G-SDI
• 10G optical fiber ports for copying output
• 3.5 mm dual-channel audio jacks (reserved)
• 4 x DP 1.2/HDMI 2.0, 2x 12G-SDI inputs
• 2 x HDMI 2.0, 6 x HDMI 1.3 outputs
• 1 x 4Kx2K @ 60 Hz output in switcher mode and output resolution per P10 in splicer mode up to 8Kx2K @ 60 Hz
• AUX outputs allowing auxiliary devices such as teleprompters to be connected
• A dedicated Multiviewer output allowing the PGM & PVW screens and all the connected sources to be monitored from one display
• 2 x Gigabit Ethernet ports used for control and monitoring
• Easy replacement of output connectors with software
• Up to 6 layers (2 x 4K layers + 4 x 2K layers, or 3 x 4K layers)
• Up to 128 presets
• Up to 255 BKGs & logos (512 MB)
• 8 bit / 10 bit / 12 bit video sources accepted
• High-performance image deinterlacing
• High-precision output synchronization in splicer mode
• Various transition effects: fade and cut
• Custom test patterns
• Full-link HDCP for safer content transmission
• Device backup, output copying, and input backup to guarantee stability and reliability
• Visualized live monitoring of input and output connector statuses

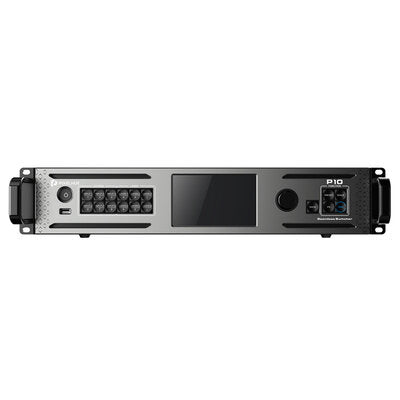

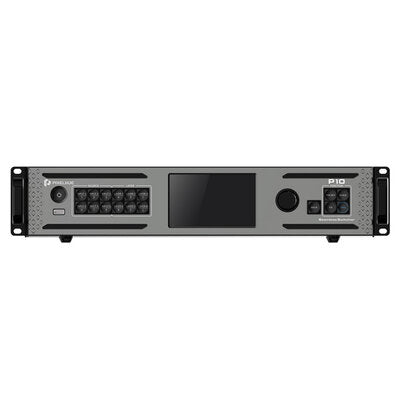

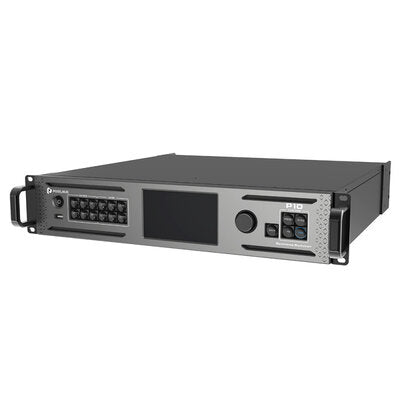

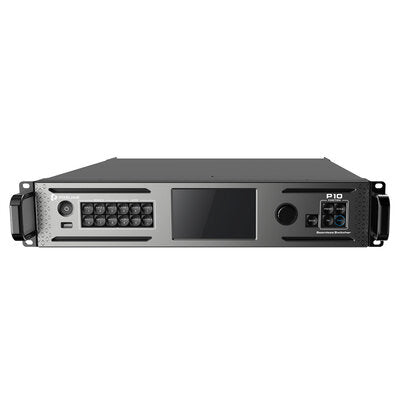

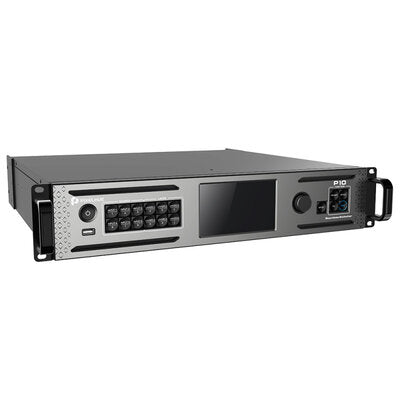

• 5" graphical LCD on the front panel allowing for a more intuitive user experience
• Exceptionally easy to control via event controller, web GUI, front panel and Stream Deck
• Flight case included

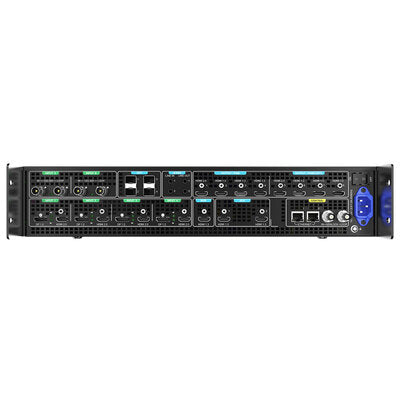

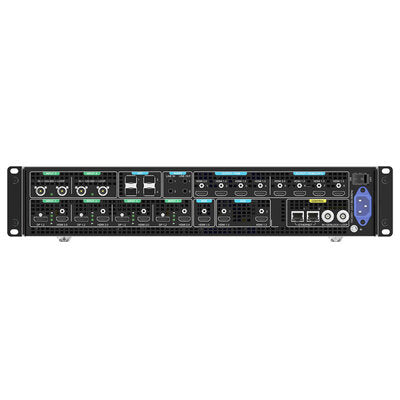

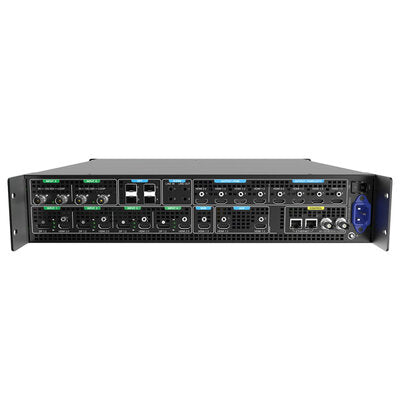

Inputs

For an input that contains a DP 1.2 and HDMI 2.0, only one connector can be selected as input at the same time.

• DP 1.2
  • Maximum resolution: 4096x2160 @ 60 Hz / 8192x1080 @ 60 Hz
  • Minimum resolution: 800x600 @ 60 Hz
  • Maximum width: 8192 pixels (8192x1080 @ 60 Hz)
  • Maximum height: 8192 pixels (1080x8192 @ 60 Hz)
  • Maximum frame rate: 120 Hz
  • EDID management (support for standard resolutions and custom resolutions)
  • HDCP 1.3 compliant
  • Support for accompanying audio
• HDMI 2.0
  • Maximum resolution: 4096x2160 @ 60 Hz / 8192x1080 @ 60 Hz
  • Minimum resolution: 800x600 @ 60 Hz
  • Maximum width: 8192 pixels (8192x1080 @ 60 Hz)
  • Maximum height: 8192 pixels (1080x8192 @ 60 Hz)
  • Maximum frame rate: 120 Hz
  • Support for HDR
  • EDID management (support for standard resolutions and custom resolutions)
  • HDCP 2.2 compliant and downward compatible
  • Support for accompanying audio
• 12G-SDI
  • Support for ST-2082 (12G), ST-2081 (6G), ST-424 (3G), ST-292 (HD)
  • Maximum resolution: 4096x2160 @ 60 Hz
  • Maximum frame rate: 60 Hz
  • Support for interlaced input signal
  • Support for accompanying audio

Outputs

• HDMI 2.0
  • Maximum resolution: 4096x2160 @ 60 Hz/8192x1080 @ 60 Hz
  • Minimum resolution: 800x600 @ 60 Hz
  • Maximum width: 8192 pixels (8192x1080 @ 60 Hz)
  • Maximum height: 8192 pixels (1080x8192 @ 60 Hz)
  • Maximum frame rate: 120 Hz
  • Support for HDR
  • EDID management (support for standard resolutions and custom resolutions)
  • HDCP 2.2 compliant and downward compatible
  • Support for accompanying audio
• HDMI 1.3
  • Maximum resolution: 1920x1080 @ 60 Hz/2048x1080 @ 60 Hz
  • Minimum resolution: 800x600 @ 60 Hz
  • Maximum width: 2048 pixels (2048x1080 @ 60 Hz)
  • Maximum height: 2048 pixels (1080x2048 @ 60 Hz)
  • Maximum frame rate: 120 Hz
  • Support for HDR
  • EDID management (support for standard resolutions up to 2048x1152 @ 60 Hz and custom resolutions)
  • HDCP 1.4 compliant and downward compatible
  • Support for accompanying audio

OPT

• 10G optical fiber ports
• The OPT ports copy the outputs of HDMI 2.0 connectors
• The transmission distance with SMF is up to 10 km

Audio (reserved)

• 3.5 mm dual-channel audio jacks (2 x line in and 2 x line out)
• Default audio sample rate: 48 kHz
• Support for 8 bit, 16 bit and 24 bit audio
• The line out ports can output the audio signals from the line in ports for audio testing
• Support for volume adjustment

Multiviewer

• One dedicated HDMI 1.3 connector
• Connect to the Multiviewer display, allowing for live monitoring of all the inputs and outputs from one display
• The output resolution is fixed at 1920x1080 @ 60 Hz

AUX

• HDMI 1.3 connectors
• Connect to auxiliary devices such as teleprompters
• The output resolution is fixed at 1920x1080 @ 60 Hz

Ethernet

• 2 x Gigabit Ethernet ports used for control and monitoring
• One works as primary and the other as backup
• Two Ethernet ports share the same IP address

Genlock

Genlock synchronization signal connectors

• GENLOCK IN: synchronization signal input
• GENLOCK OUT: synchronization signal output

Transition & effects

• Seamless transition from PVW to PGM via Take, Cut or T-bar operation
• Fade IN/OUT supported
• Customizable transition durations (0.1 to 10 s)
• Two options for transition between PVW and PGM: Copy and Swap

Layers

• Up to 6 layers (2 x 4K @ 60 Hz layers and 4 x 2K @ 60 Hz layers, or 3 x 4K @ 60 Hz layers)
• Customizable layer layout

BKG & Logo

• Up to 255 BKGs & LOGOs (512 MB)
• BKG can be either a captured or imported image
• High-definition images can be captured from live inputs and outputs and used as BKG

Control

• Front panel buttons and 5-inch graphical LCD
• Event controller U5 / U5 Pro
• Event management software PixelFlow
• Web GUI
• Stream Deck

Processing capability

• FPGA-based high-performance image enhancement architecture
• Ultra-low latency, as low as 1 frame in proper configuration
• BT.601, BT.709, BT.2020, DCI-P3 color space processing support
• Compatible with HDCP 1.4 and HDCP 2.2

Maximum resolutions supported

• HDMI 2.0 DP 1.2
  • 8 bit: RGB 4:4:4 / YCbCr 4:4:4 4096x2160 @ 60 Hz - 8192x1080 @ 60 Hz / YCbCr 4:2:2
  • 10 bit: RGB 4:4:4 4096x2160 @ 30Hz - 4096x1080 @ 60 Hz / YCbCr 4:4:4 4096x2160 @ 30Hz - 4096x1080 @ 60 Hz / YCbCr 4:2:2 4096x2160 @ 60 Hz
  • 12 bit: RGB 4:4:4 4096x2160 @ 30 Hz - 4096x1080 @ 60 Hz / YCbCr 4:4:4 4096x2160 @ 30Hz - 4096x1080 @ 60 Hz / YCbCr 4:2:2 4096x2160 @ 60 Hz
• 12G-SDI
  • 8 bit / 10 bit / 12 bit: YCbCr 4:2:2 4096x2160 @ 60 Hz

English description : P10 is one of two new, sophisticated and powerful presentation switchers produced by Pixelhue. Based on a high-performance FPGA hardware architecture, it is capable of processing 4K 60p 4:4:4 10-bit resolution video with high-performance image de-interlacing. It comes with a wide variety of 4K connectors to interface with all the latest video devices. Inputs include HDMI 2.0, DP1.2, 12G-SDI and 4 x 10G fiber optic ports. These ones "copy" the HDMI 2.0 outputs to allow the switchers themselves to transmit signals to the LED display controllers over a distance of up to 10 km without fiber converters, with obvious savings also in costs. The available inputs are 4 x DP 1.2 / HDMI 2.0 + 2 x 12G-SDI, while the outputs are 2 x HDMI 2.0 + 6 x HDMI 1.3. Added to these tehre are 2 x HDMI 1.3 AUX outputs that you can connect to auxiliary devices and a dedicated Multiviewer output provided for live monitoring of all inputs and outputs from a display. Pixelhue P10 can work in both switcher and splicer modes based on the type of application. In the first case, there is a 4K x 2K @ 60 Hz output. In splicer mode, viceversa, 8K × 2K, always at 60 Hz. Thanks to this double working mode, real 4K inputs/outputs without color subsampling, high-quality video processing with smooth transitions and smooth views, flawless image mosaic, various transition effects, this P-series presentation switcher is the perfect solution for small/medium-sized live events and many fixed installations that require high reliability, ease of best possible image quality and state-of-the-art 4K live processing capabilities. In terms of layers, P10 supports 6 (2 x 4K layers + 4 x 2K layers or 3 x 4K layers) with the possibility for users to be able to freely organize their arrangement. In addition, up to 128 presets are available to meet your different needs. High resolution images can be captured from live inputs and outputs and used as background. The control options are very flexible, making it an extremely versatile device that is also simple to use. These options include backlit front panel keys and a 5” graphical LCD display for direct access to functions, or alternatively by the U5 live console, using an intuitive web GUI interface and stream deck. Finally, we point out the excellent construction quality and electronic components that characterize P10, making it extremely reliable in the most demanding conditions of use. The manufacturer has carried out series of rigorous drop tests, shock & vibration tests and thermal tests, ensuring it can survive in any kind of road trip in order to guarantee perfect functionality even in extreme conditions of use, such as in touring and rental, 24/7 with zero downtime.
