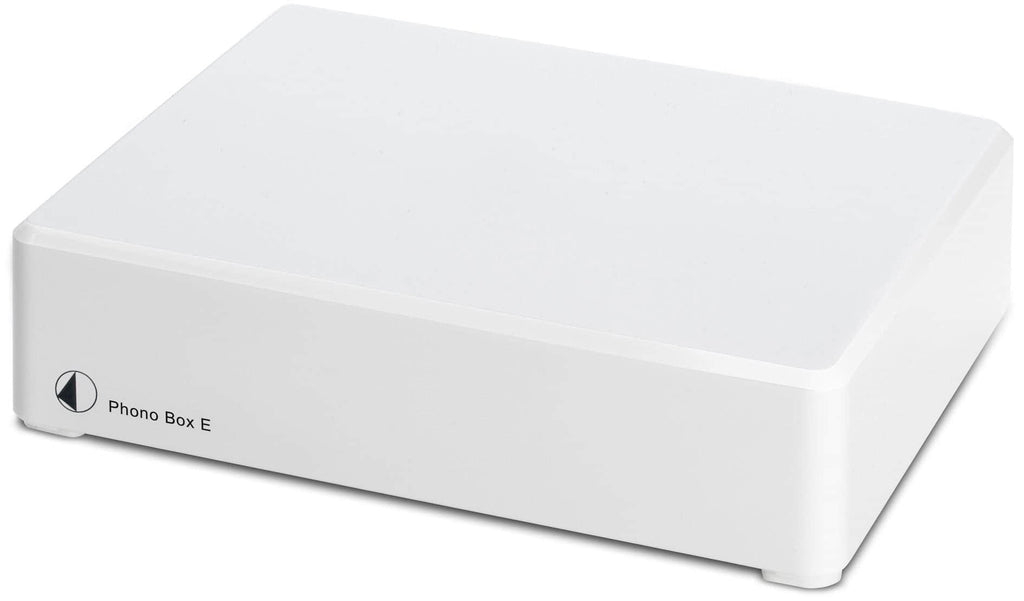

Many current amplifiers do not offer a special phono input. Phono Box E is the ideal solution for these hifi systems. Phono Box E enables the connection of MM pickups and offers audiophile music enjoyment at an entry-level price. A modern circuit concept based on SMD avoids noise and distortion.
The integrated shielding and the outsourced power supply hardly give external interference a chance. Due to its compact dimensions, the Phono Box E can be placed close to the turntable. Both input and output sockets are hard gold plated to prevent corrosion. Phono Box E is connected to a line input (AUX etc) of the amplifier.
Features Pro-Ject Phono Box E
- Amplification & RIAA Equalization for MM Pickups
- Design principle inspired by Dr. Sykora
- SMD circuits
- Low-noise components
- Internal metal shielding
- Compact housing for installation close to the turntable
- Hard gold-plated RCA sockets
- External power supply included in delivery
Technical data
- Input impedance 47 kOhm
- Input capacitance 120 pF
- Gain 40 dB
- Output voltage (typical) 500 mV/ 1 kHz at 5 mV/ 1kHz
- Noise to noise ratio 88 dB (A weighted)
- THD <0.05%
- RIAA deviation deviation max. 0,5 dB/ 20 Hz - 20kHz
- Input 1 pair RCA jacks
- Output 1 pair RCA jacks
- External power supply 18 V/500 mA DC
