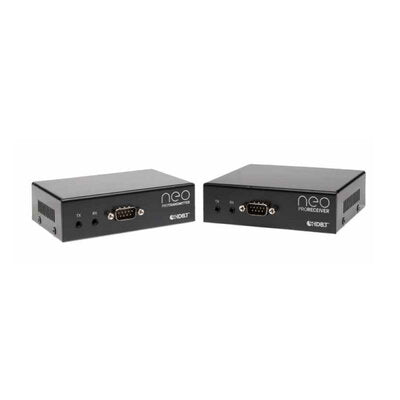

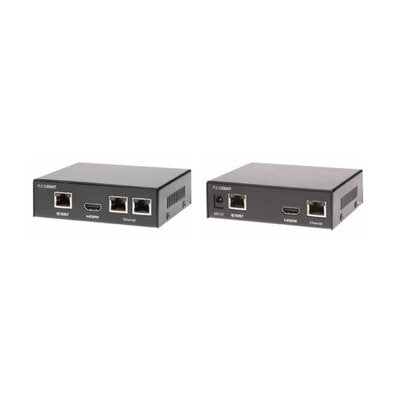

Pulse-Eight - HDBT Pro Extender Kit - Extend HDMI up to 100 m using a single CAT5e or CAT6 cable

» Specifiche tecniche / Technical specs | » English description

Questa coppia trasmettitore / ricevitore dalle specifiche elevate può estendere il segnale HDMI fino a 100 m utilizzando un singolo cavo CAT5e o CAT6 (segnali 4K / UHD fino a 70 m e segnali HD e 3D standard fino a 100 m). Il neo Pro Extender Set supporta alcune temporizzazioni HDMI 2.0a, tra cui High Dynamic Range (HDR), PoH (Power over HDBaseT) e abilita anche segnali IR bidirezionali per un controllo point-to-point semplice e Plug & Play.Per coloro che cercano un routing di controllo aggiuntivo di display o ricevitori AV, oltre all'utile IR bidirezionale, il set di extender Pro supporta anche RS232 bidirezionale. Essendo extender della serie Pro, supportano anche la connettività Ethernet, utile per quelle situazioni in cui non è presente un cavo LAN extra dedicato o si desideri semplicemente massimizzare le opzioni di connettività di determinati progetti.Caratteristiche principaliEstendi 4K fino a 70 m e 1080p a 100 m su CAT5e/6/7Trasmissione video Ultra HD 4K (fino a 340 MHz), 1080p, 3DHDBaseT Classe ASupporta HDCP 2.2Controllo IR bidirezionale e RS232Connessione Ethernet 10/100Gestione EDID automatica

Technical characteristics

Material	smooth textured powder coated steel
Operating temperature range	0 to 40 °C
Operating humidity range	20 to 90% RH (no condensation)
Power supply	1 x 48 V (RX only)
Power consumption	transmitter 3 W, receiver 5.5 W
Video input	transmitter 1 x HDMI receiver, 1 x HDBaseT Class A (Pro)
Video output	transmitter 1 x HDBaseT Class A (Pro), receiver 1 X HDMI
Color supported	4K 24 bit, 1080p 36 bit
Max. video bandwidth	300 MHz / 10.2 Gbps
Encryption	HDCP 1.4 and HDCP 2.2
Supported video resolutions	1080i, 1080p (30 Hz), 1080p (60 Hz), 3D (60 Hz), 4K (30 Hz) 4:4:4, 4K (60 Hz) 4:2:0, 720p, UHD (30 Hz) 4:4:4, 720i, 3D 1080i (50 Hz), UHD (30 Hz) 4:4:4, UHD/24 4:2:2 10 bit
Supported audio formats	Dolby Digital 5.1, Dolby Digital EX 6.1, Dolby Digital Plus 7.1, Dolby TrueHD 5.1, Dolby Digital 2.0, Dolby Digital 2.0, Dolby Digital 5.1, Dolby Digital EX 6.1, Dolby Digital Plus 7.1, Dolby TrueHD 5.1, Dolby TrueHD 7.1, DTS 5.1, DTS-HD Master 5.1, DTS-HD Master 7.1, DTS 96/24 5.1, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, LPCM 2.0, LPCM 5.1, LPCM 6.1, LPCM 7.1, PCM 2.0, Dolby Atmos 5.1.2, Dolby Atmos 5.1.4, Dolby Atmos 7.1.2, Dolby Atmos 7.1.4, Dolby Atmos 9.1.2
ESD (lightning) protection	±8 kV (air-gap discharge), ±4 kV (contact discharge)
Certification	CE, FCC, RoHS
Dimensions (W x H x D)	11.2 x 3.2 x 8.5 cm
Weight	transmitter 331 g, receiver 344 g

EN:
This high specification transmitter / receiver pair can extend your HDMI signal up to 100 m using a single CAT5e or CAT6 cable (4K/UHD signals up to 70 m and standard HD and 3D signals up to 100 m). The neo Pro Extender Set supports some HDMI 2.0a timings, including High Dynamic Range (HDR), PoH (Power over HDBaseT), and also enables bi-directional IR signals for simple point-to-point control and Plug & Play.For those looking for additional control routing of displays or AV receivers, in addition to the useful bidirectional IR, the Pro Extender Set also supports bi-directional RS232. As Pro Series extenders, they also support Ethernet connectivity, useful for those situations where you don't have an extra dedicated LAN cable or simply want to maximize the connectivity options of certain projects.Main featuresExtend 4K up to 70 m and 1080p to 100 m over CAT5e/6/7Ultra HD 4K video transmission (up to 340 MHz), 1080p, 3DHDBaseT Class ASupports HDCP 2.2Bi-directional IR control and RS232Ethernet 10/100 connectionAutomatic EDID Management
