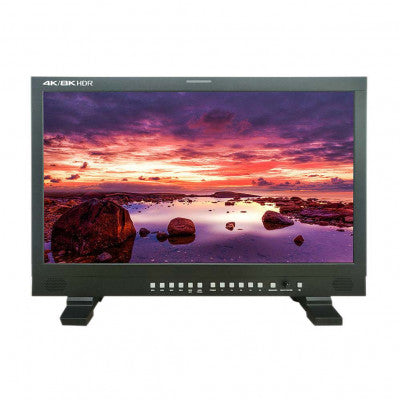

aura UHD 24 RMS 2380U - 12G-SDI, 4K/8K HDR (3840 x 2160), monitor 24", 540 cd/m2

Monitor da 24" 16:9 da 540 nits di luminosità in grado di coprire il 98% dello spazio colore DCI-P3. Appartiene a una famiglia di monitor di produzione cinematografica e televisiva professionali a 4 canali single-link 12G-SDI, in formato desktop o rack. Caratterizzati da una risoluzione 4K HDR con supporto fino a 8K in ingresso, questi monitor broadcast accettano ingressi HDMI, VGA, DVI, SDI, ciascuno con loop. Consentono la Multiview e offrono precise regolazioni dell’immagine e altre funzioni ampiamente utilizzate in pre-shooting e post-grading nel broadcasting, produzioni cinematografiche, televisive e pubblicitarie di fascia alta. Caratteristiche principali Risoluzione: 4K HDR 3840 x 2160 pixel Luminosità: 540 cd/m2 Tipo: LCD IPS Rapporto d’aspetto: 16:9 Contrasto: 1200:1 Profondità del colore: 10 bit Angolo di visione: 178°/178° Ingressi: 2 x HDMI 2.0, SFP (fibra 12G), 12G-SDI, USB-C/Thunderbolt3 Uscite: 12G-SDI Supporto per audio de-embedding, altoparlante integrato da 0,5 W, uscita stereo mini-jack 3,5 mm Dimensioni: 571,7 × 160 × 414,85 mm Peso: 8,6 kg - - - - - - - - - - 24" 16:9 monitor with 540 nits of brightness capable of covering 98% of the DCI-P3 wide gamut color space. It belongs to a family of professional 4-channel single-link 12G-SDI film and television production monitors, in desktop or rack format. Featuring 4K HDR resolution with support for up to 8K input, these broadcast monitors accept HDMI,VGA,DVI,SDI inputs, each with loop trough. Enable Multiview and offer precise image adjustments and other widely used functions in pre-shooting and post- grading in broadcasting, high-end film, television and advertising productions. Main features Resolution: 4K HDR 3840 x 2160 pixels Brightness: 540 cd/m2 Type: IPS LCD Aspect ratio: 16:9 Contrast: 1200:1 Color depth: 10 bits Viewing angle: 178°/178° Inputs: 2 x HDMI 2.0, SFP (12G Fiber), 12G-SDI, USB-C/Thunderbolt3 Outputs: 12G-SDI Support for audio de-embedding, built-in 0.5 W speaker, 3.5 mm mini-jack stereo output Dimensions: 571.7 × 160 × 414.85 mm Weight: 8.6 kg - - - - - - - - - -

Panel

Type	LCD IPS panel
Size	23.8"
Resolution	3840 x 2160
Pixel pitch	0.1369 (H) × 0.1369 (V) mm
Aspect ratio	16:9
Backlight	LED
Brightness	540 cd/m2
Contrast ratio	1200:1
Color depth	10 bits (1.07B)
Image processing	12 bits
Response	9 ms
Viewing angle	178° / 178°



Input

12G-SDI	BNC x 4
HDMI2.0	x 2
SFP	12G Fiber
Type-C/Thunderbolt3	x 1



Output

12G-SDI

BNC x 4



Audio

Audio de-embedding	support
Audio frequency	16 channels (8 channels displayed the same time)
Built-in speaker	2 × 8 ohm / 0.5 W (front)
Headphone	1 x stereo mini-jack 3.5 mm



General

Ethernet interface	1 x RJ45 control / update
GPI	GPI1-5, 1 x RJ45
Serial port	RS422, 2 x RJ45 input and output
Input voltage	100 - 240 VAC, 2.8 A to 1.2 A, 50/60 Hz



SDI signal format

• SMPTE-425M-A/B: 1080p (50 / 59.94 / 60)
• SMPTE-274M: 1080p (23.98 / 24 / 25 / 29.97 / 30p/psf)
• SMPTE-296M: 720p (60 / 59.94 / 50)
• SMPTE ST 2036- 1:2009: 3840×2160 (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p)
• SMPTE ST 2048- 2:2011: 2048x1080 (23,98 / 24 /25 / 29.97 / 30 p/psf / 47.95 / 48 / 50 / 59.94 / 60p)
• SMPTE ST 2081: 3840x2160 (30 / 25 / 24p)
• SMPTE ST 2082: 3840x2160 (60 / 50 / 30 / 25 / 24p)



HDMI signal format

• 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)

- - - - - - - - - - formato cm : 0x0x0 - - - - - - - - - - peso kg : 6
