RGBlink - FLEX 16S - 16x16 Matrix & Videowall processor incl. 4 EXT4F-IM and 4 EXT4F-OS

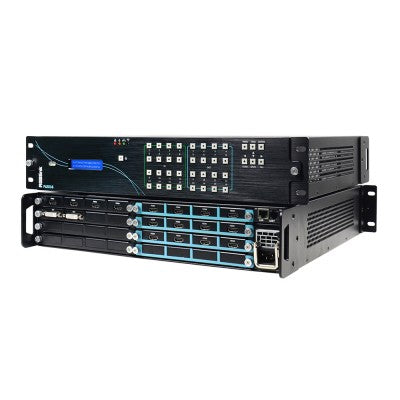

FLEX 16S con pannello frontale Basic e processore videowall. FLEX 16S è un innovativo sistema di elaborazione modulare per applicazioni a matrice di segnali misti. Il prodotto è dotato di supporto per un massimo di 16 segnali di ingresso e 16 segnali di uscita, tutti modulari. Con un'ampia gamma di opzioni di segnale disponibili, FLEX 16S è una soluzione ideale per ambienti in cui vengono impiegati dispositivi e segnali video differenti. Con la memorizzazione dei preset a bordo e il facile accesso dal pannello frontale, tramite RGBlink XPOSE, o tramite RGBlink OpenAPI, FLEX 16S offre un controllo video flessibile per ambienti video professionali. FLEX 16S trasforma FLEX 16 in un controller videowall fino a 32 mega pixel. Compresi 4 EXT4F-IM e 4 EXT4F-OS. Moduli di ingresso e uscita venduti separatamente.

• 16x16 fully modular inputs and output
• s Mixed format input and output matrix
• 38 mega pixel capacity
• Automatic signal switching
• Save & Recall up to 256 Presets
• Output up to 1080P @ 60 Hz, 2048x1152 @ 60 Hz, 2560x816 @ 60 Hz
• EDID Management
• Matrix and Splicing
• Matrix Control via front panel
• Control via RGBlink OpenAPI via UDP (TCP/IP) or RS232.
• Configuration & control with XPOSE software and open API
• Lan / Serial port for communication

Maximum Resolution Supported: 32Kx1K or16Kx2K screen

Input port: 4 Slots, up to 8 2k inputs
Support module type: DP1.1/DVI/3G-SDI/USB2.0 /HDMI /HDBaseT/H.264/Type C/Fiber

Output port: 4 Slots, up to 16 2K inputs
Support module type: DVI/HDMI/ 3G-SDI/HDBaseT/DP1.1/Fiber

Layers: With EXT-OS output card, up to 16 layers, one output max. support 4 layers

OS output modules included


• 32 x 32 Matrix and Splicing
• 64 Mega pixel capacity
• Support signal auto-switching
• Store up to 256 presets on board
• EDID management support
• Remote control via LAN or RS232

Connectors:
Input:
8 slots, up to 32 inputs
Select from:
• DVI Module: 1 x DVI (compatible with DVI, VG A, YPbPr, CVBS)
• 3G SDI Module: 2 x BNC (1 In | 1 loop)
• HDMI Module: 1 x HDMI-A
• USB Module: 2 x USB-A (1 In | 1 loop)
• HDBaseT Module: 1 x RJ45

Output:
8 slots, up to 32 Outputs
Select from:
• 3G SDI Module: 2 x BNC
• HDMI Module: 1 x HDMI-A
• DVI Module: 1 x DVI (compatible with DVI, VG A, YPbPr, CVBS)
• DisplayPort Module: 1 x DisplayPort
• HDBaseT Module: 1 x RJ45

Communication:
• LAN: 1 x RJ45
• RS232: 1 x RJ11

Power:
2 slots up to 2 power
1 x IEC (each PSU)

Performance:
Input Resolutions:
SDI:
• SMPTE: 480i | 576i | 720p @ 50/59.94/60 | 1080i @ 50/59.94/60 | 1080p @ 23.98/24/25/29.97/30/50/59.94/60
DVI | HDMI | HDBaseT* | USB:
• SMPTE 480i | 576i | 720p @ 50/59.4/60 | 1080i @ 50/59.94/60 | 1080p @ 50/59.54/60
• VESA 800x600 @ 60 | 1024x768 @ 60 | 1280x720 @ 50/59.94/60 | 1280x800 @ 60 | 1280x960 @ 60 | 1280x1024 @ 60 | 1400x1050 @ 60 | 1600x1200 @ 60 | 1920 x 1080 @ 23.98/24/25/29.97/30/50/59.94/60 | 2048x1152 @ 60
VGA:
• VESA: 800x600 @ 60 | 1024x768 @ 60 | 1280x800 @ 60 | 1280x720 @ 50/59.94/60 | 1280x960 @ 60 | 1280x1024 @ 60 | 1400x1050 @ 60 | 1600x1200 @ 60 | 1920 x 1080 @ 23.98/24/25/29.97/30/50/59.94/60
CVBS:
• SMPTE: 480i | 576i
YPbPr:
• SMPTE: 480i | 576i | 720 @ 50/59.94/60 | 1080i @ 50/59.94/60 | 1080p @ 23.98/24/25/29.97/30/50/59.94/60

Output Resolutions:
Select from below or configure customized
SDI:
• SMPTE: 720p @ 50/59.94/60 | 1080i @ 50/59.94/60 | 1080p @ 23.98/24/25/29.97/30/50/59.94/60
DVI | HDMI | HDBaseT | DP:
• SMPTE: 480i | 576i | 720p @ 50/59.4/60 | 1080i @ 50/59.94/60 | 1080p @ 50/59.54/60
• VESA: 800x600 @ 60 | 1024x768 @ 60 | 1280x720 @ 50/59.94/60 | 1280x800 @ 60 | 1280x960 @ 60 | 1280x1024 @ 60 | 1400x1050 @ 60 | 1600x1200 @ 60 | 1920 x 1080 @ 23.98/24/25/29.97/30/50/59.94/60 | 2048x1152 @ 60 | 2560x816 @ 60
CVBS:
• SMPTE: 480i | 576i
YPbPr:
• SMPTE: 480i | 576i | 720 @ 50/59.94/60 | 1080i @ 50/59.94/60 | 1080p @ 23.98/24/25/29.97/30/50/59.94/60

Supported Standards:
SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
HDMI: 1.3
DVI: Single Link
DisplayPort: 1.1
HDBaseT: 1.0

Power:
Input voltage: AC100V~240V, 50/60 Hz
Max Power: 400W

Environment:
Temperature: 0℃～40℃
Humidity: 10%~85%

Physical:
Weight: Net(device) 17 kg, Packaged 25 kg
Dimensions: Net(device) 484 mm x 458 mm x 221 mm, Packaged 630 mm x 595 mm x 255 mm

English description : FLEX 16S with Basic front panel en videowall processor. FLEX 16S is an innovative modular processing system for mixed signal matrix applications. The product features support for up to 16 input signals and 16 output signals all of which are modular. With a wide range of signal options available, FLEX 16S is an ideal solution for modern environment where a range video devices and signals are employed. With on board preset storage and easy access from the front panel, via RGBlink XPOSE, or via RGBlink OpenAPI, FLEX 16S offers flexible video control for pro AV environments. FLEX 16S transforms FLEX 16 in to splicing a videowall controller up to 32 mega pixels. Including 4 EXT4F-IM and 4 EXT4F-OS, Input & Output modules sold separately.
