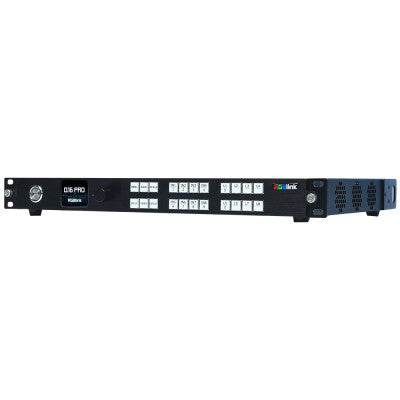

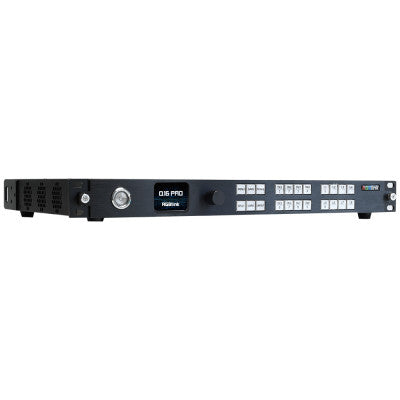

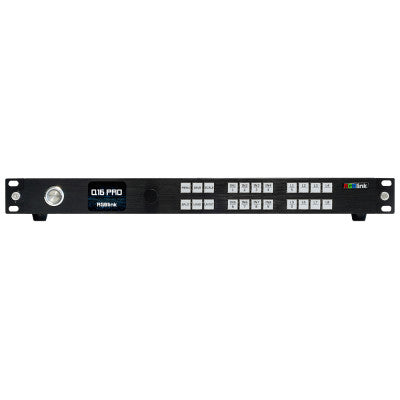

RGBlink - Q16pro 1U with input 790-1004-01-0 and output 790-1004-22-0 configuration

» Specifiche tecniche / Technical specs | » English description

Descrizione (IT): Q16pro 1U è una matrice multi-segnale modulare che combina design robusto elaborazione video e qualità dell'immagine ai vertici della categoria latenza ultra-bassa versatile connettività 4K funzionalità di streaming live e facilità d'uso senza pari per soddisfare i requisiti delle moderne applicazioni di visualizzazione tra cui riunioni aziendali dal vivo eventi ibridi produzioni in luoghi di culto o installazioni video wall a LED su larga scala. Le sue uscite supportano fino a 4 display indipendenti e 8 layer con capacità di roaming arbitraria e ogni layer può attraversare ogni uscita senza occupare layer. L'edizione Q16pro supporta fino a 8 ingressi inclusi HDMI 1.3 SD/HD/3G SDI HDMI2.0 H.264/265 per segnali 2K e 4K. Q16pro è disponibile per il controllo remoto tramite XPOSE o APP/controller di terze parti tramite open API. Questa unità nello specifico è dotata di modulo di input 790-1004-01-0 e modulo di output 790-1004-22-0.

• Peso: 6300 g
• Dimensioni (cm): 46 (H) × 54 (W) × 13 (L)

Description (EN)

Q16pro 1U is a modular multi-signal matrix switcher that combines rugged design best-in-class video processing and image quality ultra-low latency versatile 4K connectivity live streaming capabilities and unmatched ease of use to meet your requirements of modern display applications including live corporate meetings hybrid events house of worship productions or large-scale LED video wall installations. Its outputs support up to 4 independent displays and 8 layers with arbitrary roaming capability and each layer can cross each output without occupying layers. Q16pro edition supports up to 8 inputs including HDMI 1.3 SD/HD/3G SDI HDMI2.0 H.264/265 for 2K and 4K signals. Q16pro is available for remote control via XPOSE or third party APP/controller via open API. This specific unit is equipped with input module 790-1004-01-0 and output module 790-1004-22- 0.

Specifiche Tecniche

• Modular design with flexible input & output combinations
• OSD rolling subtitles
• Custom output resolutions
• Support 8 screens spanning the output port without occupying layers
• Independent display management control
• Custom EDID
• Control via XPOSE 2.0 or RGBlink OpenAPI

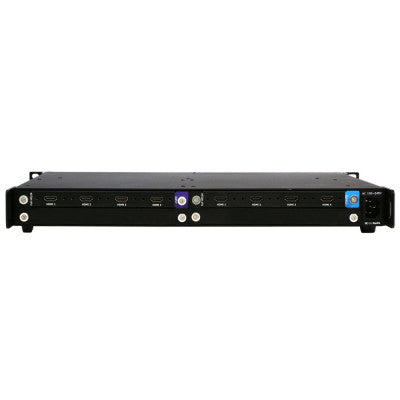

Connectors

Input:

• 2 slots up to 8 input
• Standard with HDMI 1.3: 4 x HDMI-A
• Optional: SDI (SD/HD/3G) (to be published):  8 x BNC (4 In | 4 Loop) / DP 1.2 | HDMI 2.0 2 x DP | 2 x HDMI-A

Output

• Standard with HDMI 1.3: 4 x HDMI-A
• Optional DP 1.2: 2 x DP

Communication

• LAN 1 x RJ45
• RS 232 1 x RJ11

Power

• 1 x IEC

Performance

Input resolutions

• SDI: SMPTE 480i | 576i | 720p @ 50/60 | 1080i @ 59.94/60 | 1080p @ 50/59.94/60
• DP: VESA 800×600 @ 60 | 1024×768 @ 60 | 1280×1024 @ 60 | 1440×900 @ 60 | 1600×1200 @ 60 | 1920×1080 @ 60 | 2560×1440 @ 60
• HDMI: SMPTE 480i | 576i | 720p @ 50/59.94/60 | 1080i @ 50/59.94/60 | 1080p @ 50/59.94/60 | 2160p @ 50/60 / VESA 800×600 @ 60 | 1024×768 @ 60 | 1280×1024 @ 60 | 1440×900 @ 60 | 1600×1200 @ 60 | 1920×1080 @ 60 | 3840×2160 @ 60

Output resolutions (select from below or configure customized)

• HDMI: SMPTE 720p @ 50/59.94/60 | 1080p @ 50/59.94/60 / VESA 800×600 @ 60 | 1024×768 @ 60 | 1280×720 @ 50/59.94/60 | 1280×800 @ 60 | 1280×960 @ 60 | 1280×1024 @ 60 | 1400×1050 @ 60 | 1600×1200 @ 60 | 1920×1080 @ 60 | 2048×1152 @ 60
• DP: SMPTE 720P @ 60 | 1080P @ 60 | 2160 @ 60 / VESA 800×600 @ 60 | 1024×768 @ 60 | 1280×720 @ 60 | 1280×800 @ 60 | 1366×768 @ 60 | 1400×1050 @ 60 | 1600×1200 @ 60 | 1920×1080 @ 60 | 2048×1152 @ 60 | 2560×812 @ 60 | 2560×816 @ 60 | 2560×1600 @ 60 |  3840×1080 @ 60 | 3840×2160 @ 23.98/24/25/29.97/30/50/60
• Supported standards: HDMI 2.0 / SDI SD/HD/3G / DisplayPort 1.2

Power

• Input voltage 85 - 264 V_AC 50/60 Hz
• Max power 65 W

Working environment

• Working temperature -5 °C ～ 45 °C/li>
• Working humidity 10% ~ 85%
