Descrizione
» Specifiche tecniche / Technical specs | » English description
Descrizione (IT): Amplificatore / mixer mono da 40 W con uscite per diffusori da 70 e 100 V e a bassa impedenza da 4 ohm. Alimentazione: 240 VAC 50/60 Hz e 12 - 24 VDC. Caratteristiche principali 1 ingresso MIC su connettore jack 6.35 mm (pannello frontale) 1 ingresso AUX mini-jack 35 mm (pannello frontale) 1 ingresso AUX stereo su RCA (pannello posteriore) 2 uscite per diffusori (100 V e 4 ohm) su terminali a vite Morsettiera a molla per alimentazione 12 o 24 V Regolazione volume microfono eco tono e master Unità USB per riprodurre file MP3 o WMA tramite USB o scheda SD Funzione registratore: è possibile effettuare semplici registrazioni direttamente dagli ingressi 1 - 3 su una chiavetta USB o una scheda SD Modulo Bluetooth integrato streaming audio da smartphone tablet PC o qualsiasi altro dispositivo abilitato Bluetooth Impostazioni multilingue Indicatori accensione e segnale Protezione termica da sovraccarico e cortocircuito Telecomando a infrarossi
- Peso: 3600 g
- Dimensioni (cm): 6 (H) × 18 (W) × 28 (L)
Description (EN)

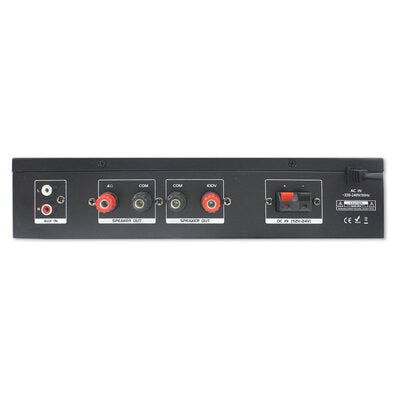

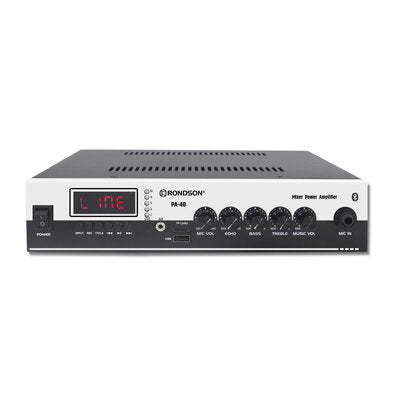

40 W mono amplifier / mixer with 70 and 100 V lines and 4 ohm low impedance speaker outputs. Power supply: 240 VAC 50/60 Hz and 12 - 24 VDC. Main features 1 MIC input on 6.35 mm jack connector (front panel) 1 x 3.5 mm mini-jack AUX input (front panel) 1 stereo AUX input on RCA (rear panel) 2 speaker outputs (100 V and 4 ohm) on screw terminals Button terminal block for 12 V or 24 V power supply Adjust microphone volume echo tone and master The USB drive can play MP3 or WMA files via USB or SD card Recorder function: simple recordings can directly made from inputs 1 - 3 on a USB stick or SD card Integrated Bluetooth module audio streaming from smartphone tablet PC or any other Bluetooth enabled device Multilingual settings Indicators power and signal thermal overload and short-circuit protection Infrared remote control
Specifiche Tecniche
Technical characteristics
- Amplifier / mixer 40 W power
- Integrated sources: USB SD card Bluetooth
- Frequency response: 20 - 20000 Hz
- Distortion: < 0.5%
- S/N ratio: 89 dB
- Output: 70 or 100 V 4 ohm
- Protection: fan thermal overload short circuit
- Power supply: 110 - 240 VAC 50/60 Hz and 12 - 24 VDC
- Consumption: 50 W
- Dimensions: 280 x 185 x 62 mm
- Weight: 2.2 kg
