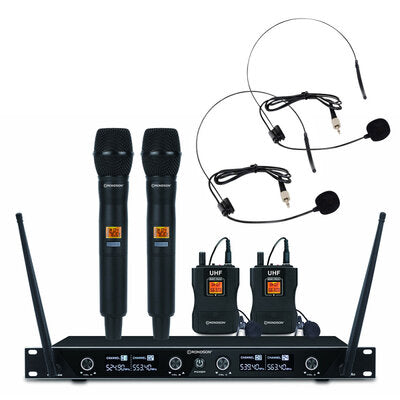

Rondson - 501.0 / 511.5 / 524.0 / 538.5 MHz 4-channel diversity UHF set, 2 handheld microphones and 2 bodypack with lavalier and headworn microphones

» Specifiche tecniche / Technical specs | » English description

Descrizione (IT): Set di due radiomicrofoni a mano UHF di qualità professionale e due bodypack con microfoni lavalier e ad archetto + ricevitore. Frequenze 501.0 / 511.5 / 524.0 / 538.5 MHz. Ideale per applicazioni vocali o audio professionali discorsi animazioni ecc. Tutti i sistemi wireless della serie BE-1000 e BE-2000 hanno in dotazione per ogni bodypack un microfono lavalier e un microfono ad archetto. Caratteristiche principali Ricevitore UHF a 4 canali dotato di moduli riceventi a sintesi di frequenza PLL selezionabili BE-10HM: microfono lavalier compatibile con i set BE-10 e BE-20 BE-10BP: microfono ad archetto compatibile con i set BE-10 e BE-20 Sistema di ricezione automatica Sistema anti-interferenza per il funzionamento simultaneo di più unità Distanza operativa: 50 m Potenza del trasmettitore: 10 mW Visualizzazione delle funzioni su schermo LCD Fornito con: 1 cavo jack (uscita mix) e 2 cavi XLR Staffe integrate

• Peso: 4100 g
• Dimensioni (cm): 4 (H) × 18 (W) × 48 (L)

Description (EN)

Set of two professional quality UHF handheld radio microphones and two bodypacks with lavalier and headworn microphones + receiver. 501.0 / 511.5 / 524.0 / 538.5 MHz frequencies. Ideal for professional voice or audio applications speeches animations etc. All BE-1000 and BE-2000 series wireless systems are supplied with a lavalier microphone and a headworn microphone for each bodypack.Main features 4-channel UHF receiver equipped with selectable PLL synthesized receiver modules BE-10HM: lavalier microphone compatible with BE-10 and BE-20 sets BE-10BP: headworn microphone compatible with BE-10 and BE-20 sets Automatic reception system Anti-interference system for simultaneous operation of multiple units Range: 50 m Transmitter power: 10 mW Function display on LCD screen Supplied with: 1 jack cable (mix output) and 2 XLR cables Integrated brackets

Specifiche Tecniche

Technical characteristics

• Four channels wireless handheld / bodypack microphone system
• BE-10HM: lavalier microphone compatible with BE-10 and BE-20 sets
• BE-10BP: headworn microphone compatible with BE-10 and BE-20 sets
• PLL synthesizer
• Easy-to-read LCD displays
• 50 m open areas range
• Modulation type: FM
• Frequency deviation: ±22 kHz
• Frequency response: 50 Hz - 15 kHz
• Frequency stability: ±10 ppm
• Interference rate: > 50 dB
• S/N ratio: > 90 dB
• Sensitivity: - 80 dBuV
• Distortion: < 0.5%
• Output impedance: 600 ohm
• Audio output level: -400 mV (balanced / unbalanced)

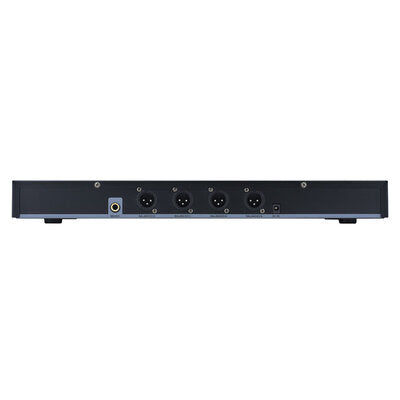

• Output connectors: 4 x XLR-3M 1 x jack 6.3 mm
• Antenna connectors: 2 x BNC

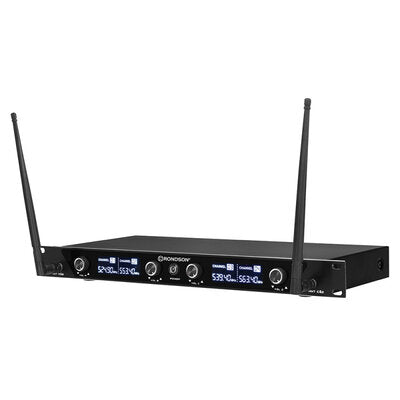

• BE-1040: quad receiver dimensions 480 x 180 x 46 mm weight 3.5 kg power: 110 - 240 V_AC / 12 V 1000 mA consumption < 10 W

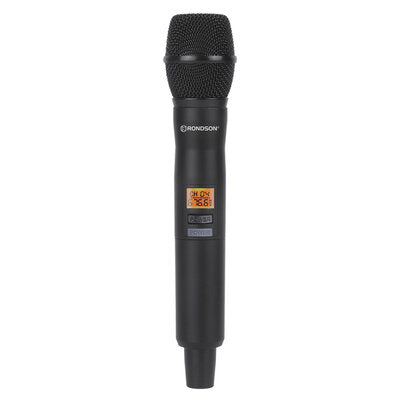

• BE-1040MIC: handheld microphone transmitter dimensions 240 x 50 x 33 mm RF power 10 mW power supply 2 x 1.5 V AA

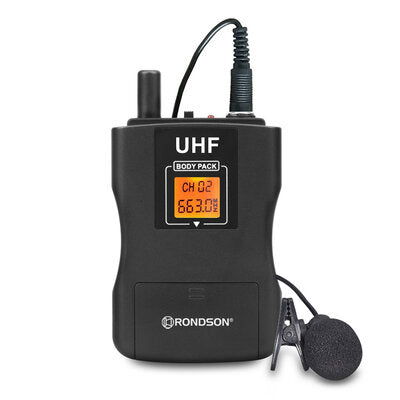

• BE-1040BP: bodypack transmitter dimensions 58 x 18 x 100 mm RF power 10 mW power supply 2 x 1.5 V AA. It includes 1 lavalier and 1 headworn microphone
