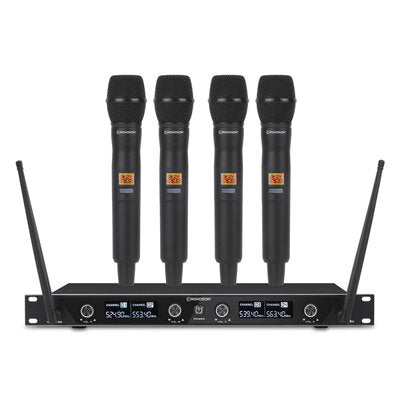

Rondson - 506.0 / 517.5 / 531.0 / 546.5 MHz 4-channel diversity UHF set, 4 handheld microphones + receiver

» Specifiche tecniche / Technical specs | » English description

Descrizione (IT): Set di quattro radiomicrofoni palmari UHF di qualità professionale + ricevitore. Ideale per applicazioni vocali o audio professionali discorsi animazioni ecc. Caratteristiche principali Ricevitore UHF a 4 canali dotato di moduli riceventi a sintesi di frequenza PLL selezionabili 4 frequenze fisse di 506.0 / 517.5 / 531.0 / 546.5 MHz Sistema di ricezione automatico Sistema anti-interferenza per il funzionamento simultaneo di più unità Distanza operativa: 50 m Potenza del trasmettitore: 10 mW Visualizzazione delle funzioni su schermo LCD Fornito con: 1 cavo jack (uscita mix) e 2 cavi XLR Staffe 19" integrate

• Peso: 4100 g
• Dimensioni (cm): 4 (H) × 18 (W) × 48 (L)

Description (EN)

Set of four UHF wireless handheld professional quality microphones + receiver. Ideal for professional vocal or audio applications speech animation etc. Main features 4-channel UHF receiver equipped with selectable PLL synthesized receiver modules 4 fixed frequency of 506.0 / 517.5 / 531.0 / 546.5 MHz Automatic reception system Anti-interference system for simultaneous operation of multiple units Range: 50 m Transmitter power: 10 mW Function display on LCD screen Supplied with: 1 jack cable (mix output) and 2 XLR cables Integrated 19" brackets

Specifiche Tecniche

• Four channels wireless handheld microphone system
• 4 fixed frequency of 506.0 / 517.5 / 531.0 / 546.5 MHz
• PLL synthesizer
• Easy-to-read LCD displays
• 50 m open areas range
• Modulation type: FM
• Frequency deviation: ±22 kHz
• Frequency response: 50 - 15000 Hz
• Frequency stability: ±10 ppm
• Interference rate: > 50 dB
• S/N ratio: > 90 dB
• Sensitivity: -80 dBuV
• Distortion: < 0.5%
• Output impedance: 600 ohm
• Audio output level: -400 mV (balanced / unbalanced)

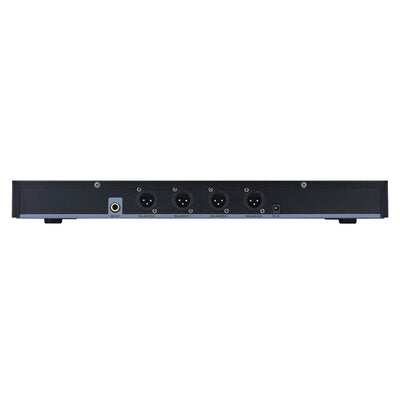

• Output connectors: 4 x XLR-3M 1 x jack 6.3 mm
• Antenna connectors: 2 x BNC

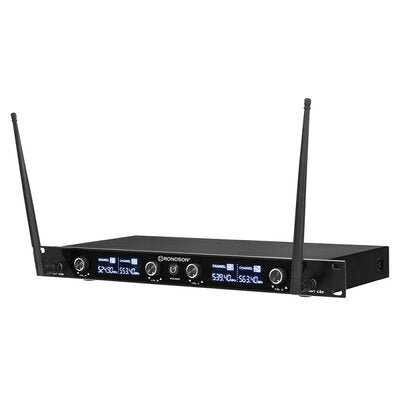

• BE-1040: quad receiver dimensions 480 x 180 x 46 mm weight 3.5 kg power: 110 - 240 V_AC / 12 V 1000 mA consumption < 10 W

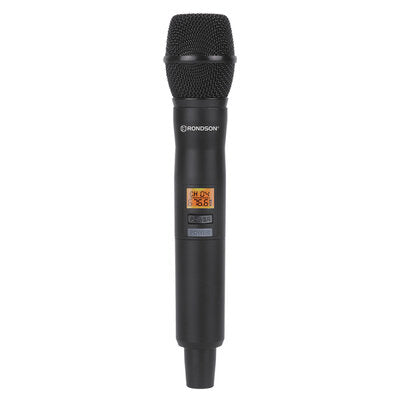

• BE-1040MIC: handheld microphone transmitter dimensions 240 x 50 x 33 mm RF power 10 mW power supply 2 x 1.5 V AA
