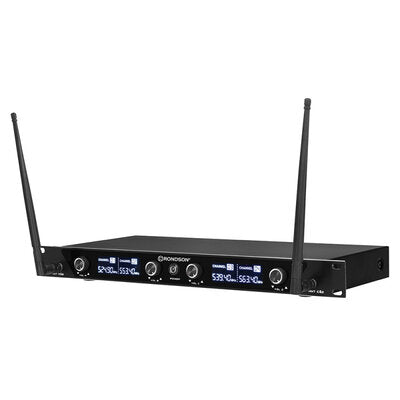

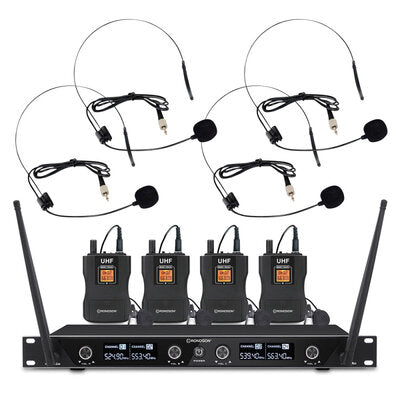

Rondson - BE-1040/4BP-3 - 501.0 / 511.5 / 524.0 / 538.5 MHz 4-channel diversity UHF set, 4 bodypack with lavalier and headworn microphones + receiver

» Specifiche tecniche / Technical specs | » English description

Set di quattro bodypack UHF di qualità professionale con microfoni lavalier e ad archetto + ricevitore. Frequenze 501.0 / 511.5 / 524.0 / 538.5 MHz. Ideale per applicazioni vocali o audio professionali, discorsi, animazioni, ecc.Tutti i sistemi wireless della serie BE-1000 e BE-2000 hanno in dotazione per ogni bodypack un microfono lavalier e un microfono ad archetto.Caratteristiche principaliRicevitore UHF a 4 canali dotato di moduli riceventi a sintesi di frequenza PLL selezionabiliBE-10HM: microfono lavalier compatibile con i set BE-10 e BE-20BE-10BP: microfono ad archetto compatibile con i set BE-10 e BE-20Sistema di ricezione automaticaSistema anti-interferenza per il funzionamento simultaneo di più unitàDistanza operativa: 50 mPotenza del trasmettitore: 10 mWVisualizzazione delle funzioni su schermo LCDFornito con: 1 cavo jack (uscita mix) e 2 cavi XLRStaffe integrate
Technical characteristics

• Four channels wireless microphone system bodypack
• BE-10HM: lavalier microphone compatible with BE-10 and BE-20 sets
• BE-10BP: headworn microphone compatible with BE-10 and BE-20 sets
• PLL synthesizer
• Easy-to-read LCD displays
• 50 m open areas range
• Modulation type: FM
• Frequency deviation: ±22 kHz
• Frequency response: 50 - 15,000 Hz
• Frequency stability: ±10 ppm
• Interference rate: > 50 dB
• S/N ratio: > 90 dB
• Sensitivity: - 80 dBuV
• Distortion: < 0.5%
• Output impedance: 600 ohm
• Audio output level: -400 mV (balanced / unbalanced)

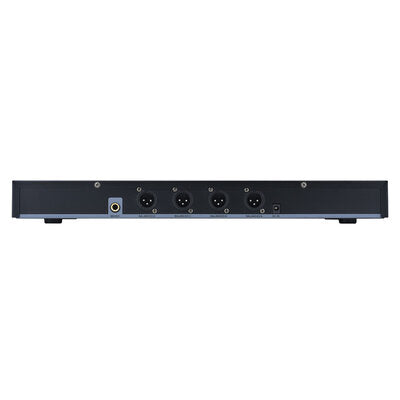

• Output connectors: 4 x XLR-3M, 1 x jack 6.3 mm
• Antenna connectors: 2 x BNC
• Receiver BE-1040: dimensions: 480x180x46 mm, weight: 3,5 kg, power supply: 110 - 240 V_AC / 12 V_DC 1000 mA, consumption: < 10 W

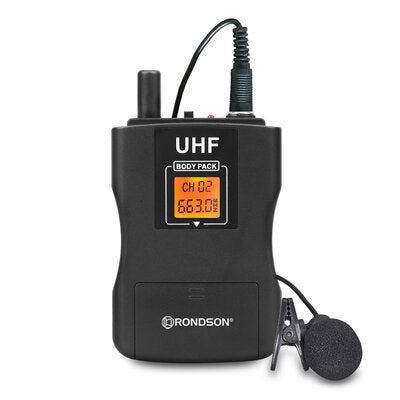

• Transmitters BE-1040BP: dimensions: 58 x 18 x 100 mm, RF power: 10 mW, power: 2 x 1.5 V AA

EN:
Set of four professional quality UHF bodypacks with lavalier and headset microphones + receiver. 501.0 / 511.5 / 524.0 / 538.5 MHz frequencies. Ideal for professional voice or audio applications, speeches, animations, etc.All BE-1000 and BE-2000 series wireless systems are supplied with a lavalier microphone and a headworn microphone for each bodypack.Main features4-channel UHF receiver equipped with selectable PLL synthesized receiver modulesBE-10HM: lavalier microphone compatible with BE-10 and BE-20 setsBE-10BP: headworn microphone compatible with BE-10 and BE-20 setsAutomatic reception systemAnti-interference system for simultaneous operation of multiple unitsRange: 50 mTransmitter power: 10 mWFunction display on LCD screenSupplied with: 1 jack cable (mix output) and 2 XLR cablesIntegrated brackets
