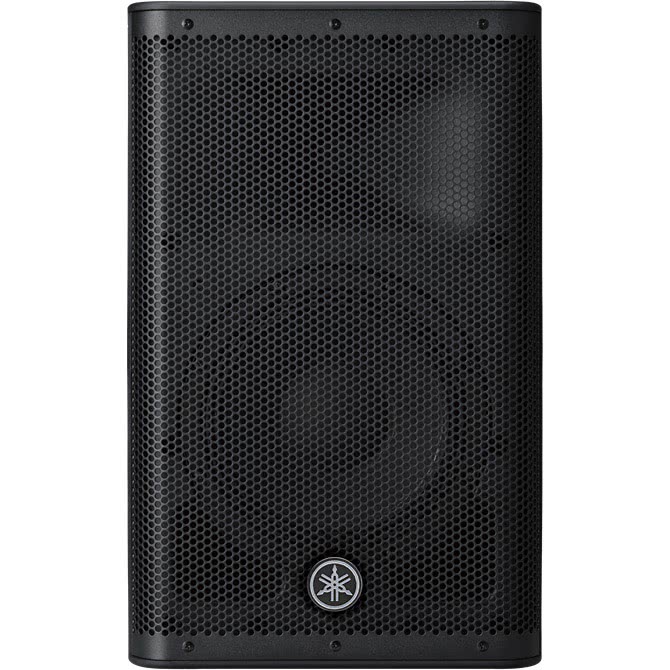

Yamaha DXR10 MK2

Since its introduction, the DXR series has stood for the combination of unbridled power and technological innovation. It offers reliable high performance with superior quality and clarity. The active speakers of the DXR mkII series have been redesigned compared to their predecessors. The new models deliver higher sound pressure levels and feature a larger but lighter 1.75" neodymium compression tweeter. This benefits speech intelligibility and musicality in particular. During development, our employees once again worked closely with NEXO's touring loudspeaker specialists. The result is a design improvement that meets the needs of professionals in the ever-changing field of sound reinforcement.

Whether for fixed installations or for mobile live performances, the DXR mkII series is suitable for a variety of applications - no matter in which direction you want to develop the sound. It combines enormous performance with advanced DSP functions and highest reliability. The speakers deliver exceptional clarity.

Despite its compact, mobile and functional design, the DXR10mkII offers an amazing 132 dB sound pressure level. It is therefore suitable for a large number of different applications. Whether it's simple vocal and instrument amplification, powerful ground monitoring or compact sound reinforcement, the DXR10mkII masters the tasks with flying colours and excellent sound quality.

Features Yamaha DXR10 MK2

• High performance portable loudspeaker with high flexibility for versatile use
• 10" loudspeaker, driven by 1,100 Watt peak power in 2-way design
• Built-in 3-channel mixer allows direct connection of microphones or line level sources without a complete PA system
• Integrated DSP for phase optimization and transparent dynamic control
• The ABS enclosure is durable and has a low-resonance design for maximum sound quality.

Technical data

• Speakers: 10" and 1.75" neodymium drivers
• 90° x 60° Horn
• 2-way bi-amped 1100 W Class-D power amplifiers (950 W LF + 150 W HF)
• Frequency range: 56 - 20,000 Hz
• Maximum level: 132 dB
• XLR and jack inputs/outputs
• ABS plastic housing with 3x M8x15 flying points
• 35 mm Flange for uprights
• continuous speaker grille
• Dimensions: 305 x 502 x 310 mm
• Weight: 13,9 kg
