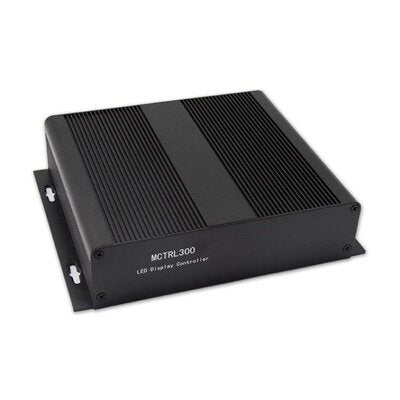

NovaStar - MCTRL300 - Control card from the M3 Series, 1.3 Mpixel loading capacity, max. width 3840, max. height 2560

MCTRL300 è la scheda di controllo indipendente di NovaStar della serie M3 e supporta l'ingresso audio e video. L'M3 si occupa della codifica e dell'elaborazione dei dati, inviando l'audio e il video al display. Una singola scheda supporta una capacità di carico massima di 2048 x 668 @ 60 Hz. Comunica con il PC tramite porta USB per comodità. 1.3 Mpixel di capacità di carico, con risoluzioni di 1280 x 1024 @ 60 Hz, 1024 x 1200 @ 60 Hz, 1600 x 848 @ 60 Hz, 1920 x 712 @ 69 Hz, 2048 x 668 @ 60 Hz e altezza massima di 3840 pixel. Un'interfaccia per sensore di luce ambientale, regola automaticamente la luminosità dello schermo. Alimentazione indipendente. - - - - - - - - - - MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048 x 668 @ 60 Hz. It communicates with PC via USB port for convenience. 1.3 Mpixel loading capacity, with resolutions of 1280 x 1024 @ 60 Hz, 1024 x 1200 @ 60 Hz, 1600 x 848 @ 60 Hz, 1920 x 712 @ 69 Hz, 2048 x 668 @ 60 Hz and maximum height of 3840 pixel. 1 light sensor interface, adjust the screen brightness automatically. Independent power supply. - - - - - - - - - -

Technical characteristics

• Input resolution: 1920 x 1200, 2048 x 1152, 2560 x 960 (width and height can be specially defined by customers)
• Single sending card supports resolution: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712 or 2048 x 668
• Capacity: 1,3 Mpixel
• Max width & height: max. width 3840, max. height 2560
• Control method: USB interface
• Video interface: single link DVI
• Audio interface: 3.5 mm
• Video format: RGB
• Output interface: 2 Ethernet ports
• 2 serial ports (UART) for cascading by USB cable
• User interface with dual LED (red = powered, flashing green = signal present)
• Bit depth of video resource: 8 bit
• 1 light sensor interface
• Power consumption: 2.9 W
• Independent power supply: 5 - 12 V_DC
• Dimensions (W x H x D): 192 x 48 x 160 mm
• Weight: 1 kg
