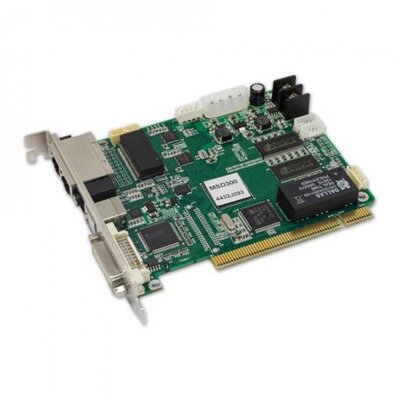

NovaStar - MSD300 - Sending card - 1.3 million pixels

La sending card MSD300 è un prodotto della serie M3 di NovaStar. Supporta gli ingressi audio e video, che possono anche essere decodificati ed elaborati prima dell'invio, tramite porta Ethernet, allo schermo a LED. Una singola MSD300 supporta risoluzioni fino a 1920×1200 @ 60 Hz. Pratica e comoda da usare anche grazie alla comunicazione con il computer tramite porta USB. Caratteristiche principali 1 × ingresso video DVI e 1 × ingresso audio 2 × uscita Gigabit Ethernet 1 × connettore per sensore di luminosità Supporta la tecnologia NovaStar di nuova generazione per la calibrazione, per fornire un processo veloce ed efficiente Supporta una varietà di formati video - - - - - - - - - - The MSD300 sending card is a product from the NovaStar M3 series. Video and audio inputs are supported and can be decoded and processed before they are sent to the LED screen through an Ethernet port. A single MSD300 supports resolutions up to 1920×1200 @ 60 Hz. Practical and easy to use thanks to its USB port computer communication. Main features 1 × DVI video input and 1 × audio input 2 × Gigabit Ethernet output 1 × light sensor connector Fast and efficient calibration process provided by the new generation of pixel level calibration technology from NovaStar Multiple video formats supported - - - - - - - - - -

Technical characteristics

• Input resolution: 1920×1200, 2048×1152, 2560×960 (width and height can be specially defined by customers)
• Single sending card supports resolution: 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668

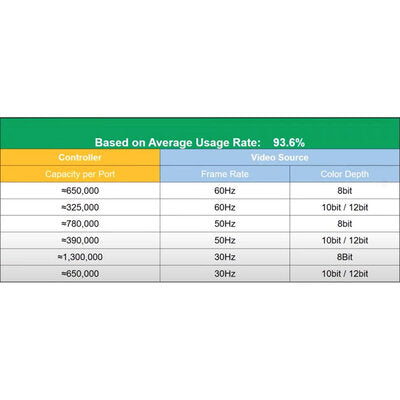

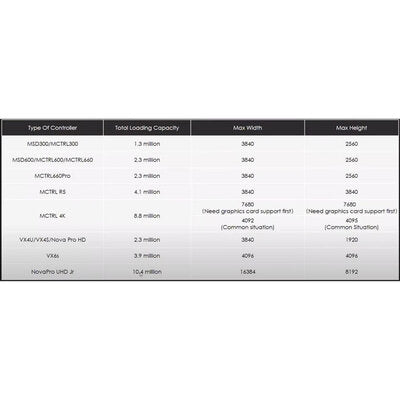

• Capacity: 1,3 million pixels
• Control method: USB Interface

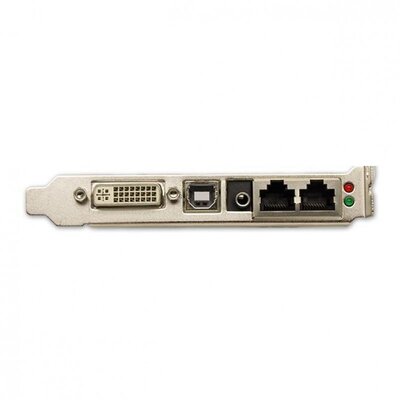

• Video interface: DVI
• Audio interface: 3,5 mm
• Video format: RGB
• Output interface: 2 Ethernet ports
• User interface with dual LEDs (red = powered, flashing green = signal present)
• Bit depth of video resource: 8 bit
• Power consumption: 3.2 W
• Power unit: 5 V_DC 0.55 A
• Dimensions (W x H x D): 127 x 21 x 100 mm
