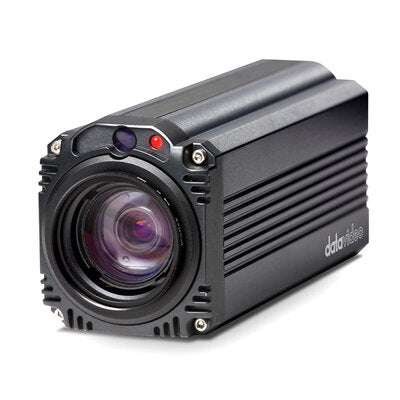

Datavideo - BC-80 - IP block camera, 1/2.8" CMOS sensor, Full HD 1080p

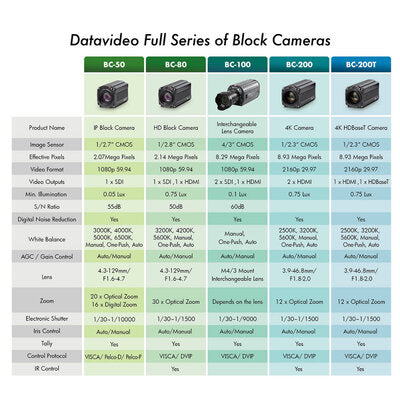

Block camera con sensore CMOS da 1/2.8" a scansione progressiva e risoluzione Full HD 1080p che fa parte di una linea costituita da 5 modelli; rappresenta una soluzione professionale per la produzione video in diretta. BC-80 è una piccola telecamera HD modulare con telecomando a infrarossi. Può essere utilizzata per riprese HD di alta qualità in uno spazio limitato. Lo zoom ottico 30x della BC-80 consente di montarla vicino o lontano dal soggetto da riprendere e di ottenere comunque immagini eccezionalmente nitide. Dispone di un'uscita HDMI (V1.3) e 3G-SDI per l'integrazione nei flussi di lavoro standard e luce Tally a LED a doppio colore. Supporta inoltre il protocollo VISCA / DVIP.

Technical characteristics

Video format	1080p 59.94 /50 / 29.97 / 25 1080i 59.94 / 50 720p 59.94 / 50
Image sensor	1/2.8" progressive scan CMOS sensor
Effective pixels (approx.)	2.14 Mpixels
S/N ratio	50 dB
Min. illumination	color: 0.4 lx (F1.6, 1/30 s, 50IRE, gain: high) B/ W: 0.03 lx (F1.6, 1/30 s, 50IRE, gain: high)
Electronic shutter	1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150 (1/180), 1/215( 1/250), 1/300(1/350), 1/425 (1/500), 1/600 (1/725), 1/1000, 1/1250 (1/1500) s
Zoom ratio	30x optical zoom
Gamma control	OFF / Normal / Standard Mode 1-4
Iris control	auto / manual
Digital noise reductions	yes
On-Screen Display (OSD)	english
White balance	AWB, MWB, one push WB, outdoor, indoor, fluorescent
AGC / gain control	auto / manual (0 to 28 step) max. gain limit (6 to 28 step)
Mirror / flip image	yes
Focus mode	auto / manual
Focal length	f = 4.3 mm (wide) to 129 mm (tele) F1.6 to F4.7
Field of view (horizontal, wide)	approx. 63.7° (wide end) / 2.3° (tele end)
Image compensation	day & night function

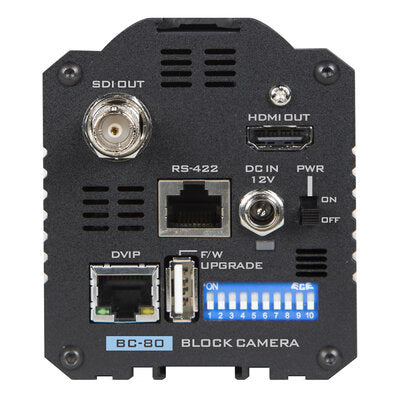

Video output	HDMI (V1.3) x 1 3G-SDI x 1
Tally LED	dual color (red, green)
Filter	M52.0 x 0.75 thread with UV protection
Protocol	VISCA / DVIP Protocol
Remote control interface and transmit distance	RS-422: transmit up to 1000 m DVIP (RJ45): 100 m
F/W update	USB
Tripod mount	1/4-20 UNC
Options	PTR-10
Color	dark blue
Operating temp. range	0 to 40 °C
Power	12 VDC 6 W
Dimension (L x W x H)	71 x 202 x 83 mm
Weight	0.7 kg
What's in the box	1 x BC-80 main unit 1 x thank you card 1 x IR remote control 1 x 12 VDC power adaptor

English description : Block camera with 1/2.8" progressive scan CMOS sensor and Full HD 1080p resolution which is part of a line made up of 5 models; it represents a professional solution for live video production. BC-80 is a small modular HD camera with infrared remote control. It can be used for high-quality HD shooting in a limited space. The BC-80's 30x optical zoom allows you to mount it close to or far from your subject and still get exceptionally sharp images. It features HDMI (V1.3) and 3G-SDI output for integration into standard workflows and dual-color LED Tally light. It also supports VISCA / DVIP protocol.
