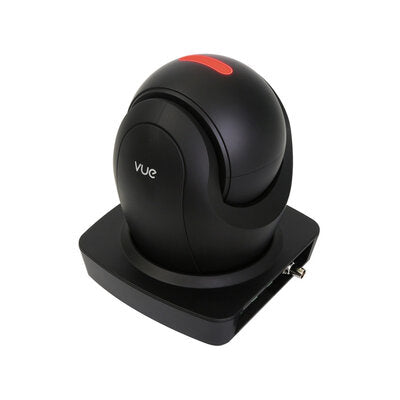

RGBlink - RGB30X-POE-TLY - POE PTZ camera 30x, Full HD with HDMI / 3G-SDI / LAN interface

Videocamera PTZ Full HD (fino a 60 fps) con alimentazione PoE, zoom ottico 30x (digitale 10x) e interfacce HDMI / 3G-SDI / LAN. È dotata di un avanzato processore d'immagini ISP e di un sensore d'immagine da 2,07 Mpixel. La messa a fuoco è automatica o manuale. Presente la regolazione dinamica del livello (WDR) e la riduzione dinamica del rumore 2D/3D (DNR) fino a 60 fps. RGB30X-POE-TLY è dotata dell'esclusivo indicatore luminoso Tally, integrato direttamente nell'alloggiamento per una visione a 360°. L'innovativo e brevettato design della telecamera RGBlink vue è di casa in ogni ambiente. Caratteristiche principali Zoom ottico ad alta velocità Prestazioni elevate in scenari con scarsa illuminazione grazie a Wide Dynamic Range Risoluzione Full HD 1920 x 1080p fino a 60 fps Uscita dual stream H.265 / H.264 adattata a diversi ambienti di rete Controlli Pan & Tilt Interfaccia opzionale Zoom ottico 30x Funzione sleep a basso consumo Supporto LAN PoE - - - - - - - - - - Full HD (up to 60 fps) PTZ camera with PoE power supply, 30x optical zoom (10x digital) and HDMI / 3G-SDI / LAN interfaces. It features an advanced ISP image processor and a 2.07 Mpixel image sensor. Focus is automatic or manual. Dynamic level adjustment (WDR) and dynamic noise reduction 2D/3D (DNR) up to 60 fps are present. RGB30X-POE-TLY is equipped with the exclusive Tally light indicator, integrated directly into the housing for a 360° view. The innovative and patented RGBlink vue camera design is at home in any environment. Main features High-speed optical zoom High performance in low-light scenarios thanks to Wide Dynamic Range Full HD 1920 x 1080p resolution up to 60 fps H.265 / H.264 dual stream output adapted to different network environment Pan & Tilt controls Optional interface 30x optical zoom Low consumption sleep function LAN PoE support - - - - - - - - - -

Technical characteristics

Interfaces

• Output:
  • • 3G SDI: 1 x BNC
    • HDMI: 1 x HDMI-A
    • USB: 1 x USB-A
    • LAN: 1 x RJ45
• Audio IN: 1 x 3.5 mm stereo jack
• Control:
  • RS232 IN/OUT: 2 x DIN8
  • RS485: 1 x 4 pin terminal
• Power: 1 x 12 V_DC jack

Performance

• Camera:
  • Optical zoom: 30x (f=5.2 - 148.4 mm)
  • View angle: 2.14° - 58.1°
  • AV: F1.3 - F4.8
  • Digital zoom: 10x
  • Minimum illumination: 0.5 Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White balance: Auto / Manual / One Push / 3000 K / 3500 K /4000 K / 4500 K / 5000 K / 5500 K / 6000 K / 6500 K / 7000 K
  • Focus: auto / manual
  • Aperture / electronic shutter: auto / manual
  • BLC: ON/OFF
  • WDR: OFF / dynamic level adjustment
  • Video adjustment: brightness / color / saturation / contrast / sharpness / B&W mode / gamma curve
  • SNR: >55 dB
  • Effective pixels: 2.07 Mpixel, 16:9
• Pan and Tilt parameter:
  • Pan / Tilt movement: -170° to 170°, -30° to 90°
  • Pan/Tilt control speed: 0.1 - 60°/s; 0.1 - 30°/s
  • Preset speed/quantity: Pan 60°/s, Tilt 30°/s; up to 255 preset positions (10 remote control)
  • 360° Tally: full 360° view of Tally
• Audio compression format: AAC | MP3 | G.711A
• Video compression format: H.264 | H.265 | dual streaming output
• Output resolutions: 720p 50 / 59.94 /60 | 1080p 25 / 29.97 / 30 / 50 / 59.94 / 60 | 1080i 50 / 59.94 / 60
• Control protocol: VISCA | Pelco-D | Pelco-P | ONVIF
• Baud rate (bps): 115,200 | 9600 | 4800 | 2400 bps
• Network protocol: RTSP | RTMP | SRT | ONVIF
• Supported standards SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

Power

• Input voltage: 12 V_DC / 1.5 A
• Max power: 12 W

Environment

• Temperature: -10 to 50 ℃
• Humidity: 20% to 80%

Physical

• Net weight: 1.7 kg
• Dimension : 180 x 188 x 198 mm
