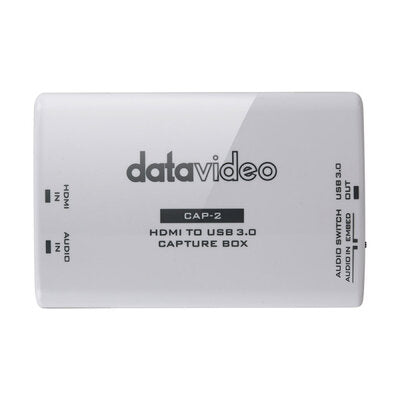

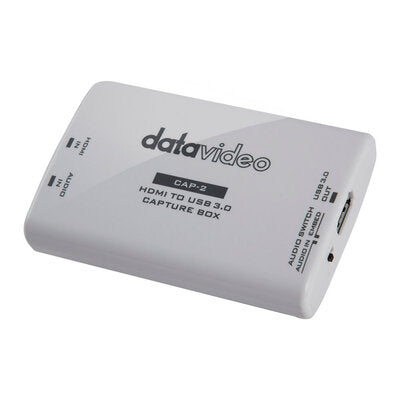

CAP-2 HDMI to USB 3.0 Capture Box è una scheda di acquisizione HDMI - USB che accetta segnali video con risoluzioni fino a 1080p 50/60 Hz e li converte in USB 3.0 per collegare il segnale AV direttamente al computer per lo streaming, la registrazione o la videoconferenza.
CAP-2 è ideale da utilizzare con qualsiasi telecamera o switcher dotato di HDMI e il suo design Plug & Play non richiede l'installazione di driver. Trasmettete in streaming dalla vostra sorgente HDMI direttamente a YouTube, Facebook o a servizi di conferenza popolari come Zoom, Skype, Teams o GotoMeeting.
Interfaccia USB 3.0, non è necessaria alcuna alimentazione esterna. Capacità di rilevamento automatico del formato video (risoluzione e frame rate). Loop-out SDI per il monitoraggio o la registrazione della sorgente video. È possibile switchare tra l’audio embeddato HDMI o l’audio mini-jack esterno.
Compatibile con vari sistemi operativi:
Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
- - - - - - - - - - CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing Device which supports up to 1080p 50/60 Hz and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing.
The USB compliant CAP-2 is ideal to use with any HDMI equipped camera or switcher and it’s Plug & Play design requires no drivers to install. Stream from your HDMI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.
USB 3.0 Interface and no external power is needed. Plug-and-Play and support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Switched as HDMI embedded audio or external mini-jack audio.
Compatible with various operating systems:
Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
- - - - - - - - - -
Technical characteristics
| Input |

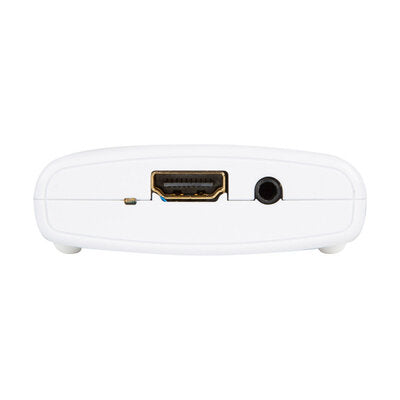

1 x HDMI
|
| Output |

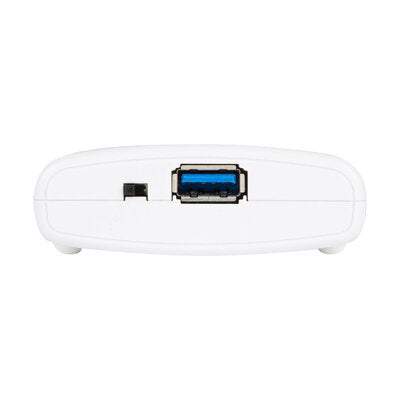

1 x USB 3.0 (Micro B)
|
| Input video bandwidth |
150 MHz (pixel clock rate)
|
| Output video bandwidth |
Up to 350 Mbps (USB)
|
| Supported input & output video formats |
1920 x 1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976
1680 x 1050p @ 60
1600 x 1200p @ 60
1440 x 900p @ 75 / 60
1400 x 1050p @ 60
1366 x 768p @ 60
1360 x 768p @ 60
1280 x 1024p @ 75 / 60
1280 x 720p @ 60 / 59.94 / 50
1024 x 768p @ 75 / 60
800 x 600p @ 75 / 60
720 x 576p @ 50
720 x 480p @ 60
640 x 480p @ 75 / 60
|
| Supported output video formats |
1920 x 1080p @ 60 / 50 / 30 / 25 / 24
1680 x 1068p @ 60
1440 x 1080p @ 60
1440 x 896p @ 60
1360 x 768p @ 60
1280 x 768p @ 60
1280 x 720p @ 60/50
1024 x 768p @ 60
960 x 536p @ 60
848x480p @ 60
768 x 576p @ 60
720 x 480p @ 60/50
640 x 480p @ 60
640 x 360p @ 60
|
| Audio input |
HDMI Embedded audio & 3.5 mm stereo input
|
| Audio support |
2-channel, 44.1 and 48 kHz sample rate, up to 24-bit PCM
|
| Capture video format |
YUY2 (USB3.0), MJPG (USB2.0/3.0)
|
| Firmware update |
via USB
|
| Firmware update |
USB Port
|
| Power consumption |
2 W
|
| Operation temperature |
0 to 40 °C
|
| Storage temperature |
-20 to 60 °C
|
| Humidity |
20 to 90% RH
|
| Minimum system requirement |
- Windows 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
Note: The driver is required for Windows 7 OS
- OSx (10.10 or above)
- Linux Ubuntu 14.04
- PC: Intel CoreTM i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or higher
- Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher, 4 GB RAM or higher
|
| Dimension (L x D x H) |
105 x 68 x 23 mm
|
| Weight |
70 g
|
